Newmac CL 86-96C - Page 27

26

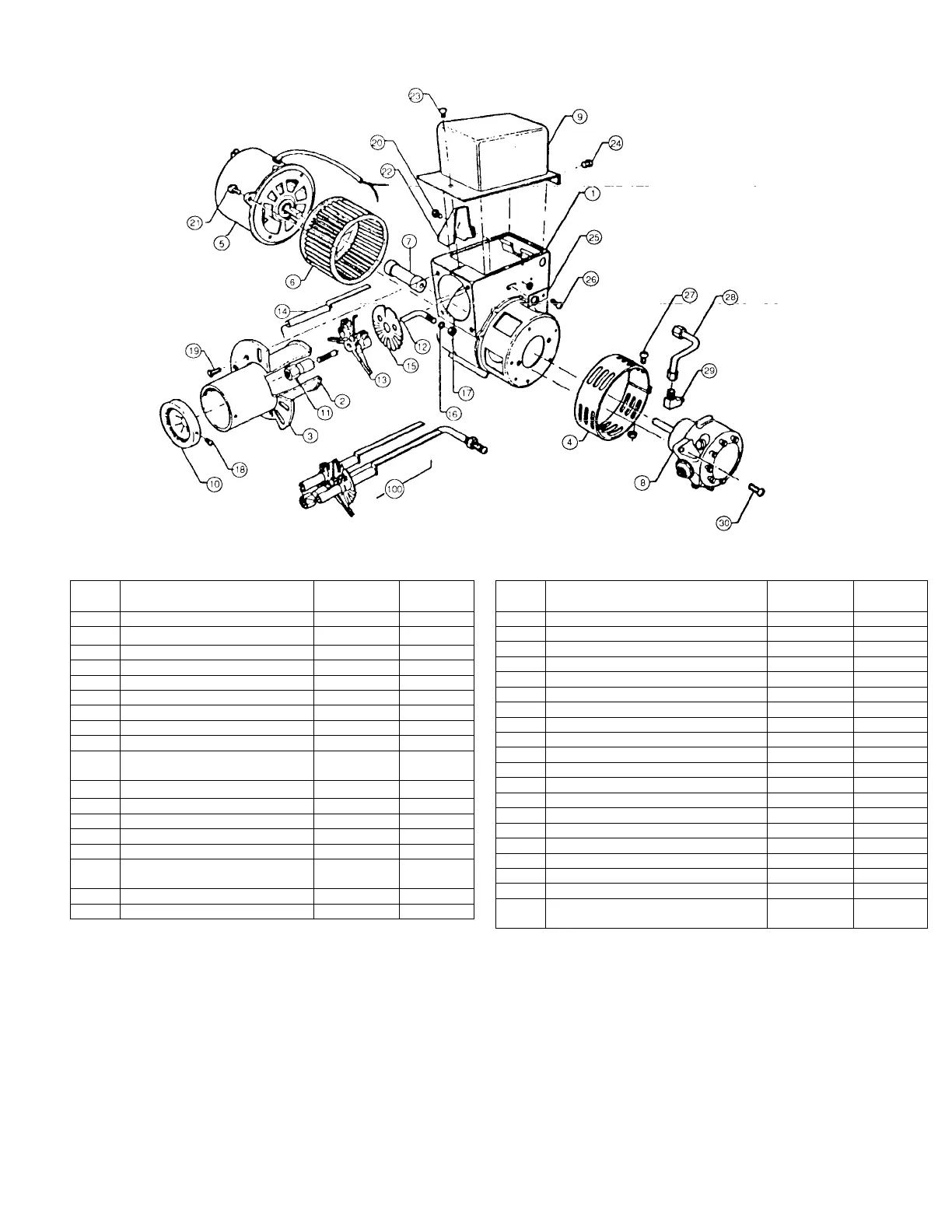

FIG. 16-2A - AERO BURNER EXPLODED ASSEMBLY
FIG. 16-2B - PARTS LIST
Model F-AFC AERO OIL BURNER
ITEM
#
DESCRIPTION
AERO
PART #
NEWMAC
PART #
1
F housing
2735222100
2
Blast Tube 8"
2090006
3
Mounting flange - Standard
2735161000
4
Air band assembly
2726200100
5
Motor 1/6 HP, 1725 RPM
2735251415
2020010
6
Fan, 524-316
2735152016
7
Flexible metal-end coupling
2433804813
8
Fuel Pump A1VA-7112 Suntec
2735171201
9
Transformer, Ignitor 2275-456
2735382730
2090066
Transformer, Iron Core 2721-
456
2735382740
2090002
Transformer, 421-456
10
End Cone:
AFC-2
2735141200
2110002
AFC-3
2735141300
2110003
11
Nozzle Adapter
2735261100
12
Oil pipe, aluminum (specify
blast tube length)
13
Electrode Holder
2725131100
14
Electrode (with porcelains)
2725132100
2090004
ITEM
#
DESCRIPTION
AERO
PART #
NEWMAC
PART #
14A
Bus bars (specify length)
15
Turbo static disc F-AFC, 3”
2725353000
16
Jam hex nut
9935193401
17
Knurled lock nut
100
Complete electrode assly (11 to 17)
2090001
18
AFC end cone screws
9935203901
2090020
19
Blast tube screw (specify length)
9935202202
20
Raceway
2726202250
21
Motor screws
9935203202
22
Raceway screw
9935203901
23
Transformer lock down screw
9935203201
24
Transformer hinge screws
9935203901
25
Slide plate
2726200400
26
Slide plate pop rivet
9935203901
27
Air band locking screw
9935203202
27
Air band locking nut
9935193201
28
Oil line assembly
2726202800
29
Compression elbow, 90 degree
30
Fuel pump screws
9935203202
33
Oil burner mounting gasket, 1/8" -
(not shown)
2735182400
When ordering parts, always give: (1) Model, (2) Part Name, (3) Part Number, (4) Size and (5) Quantity Required.
