26

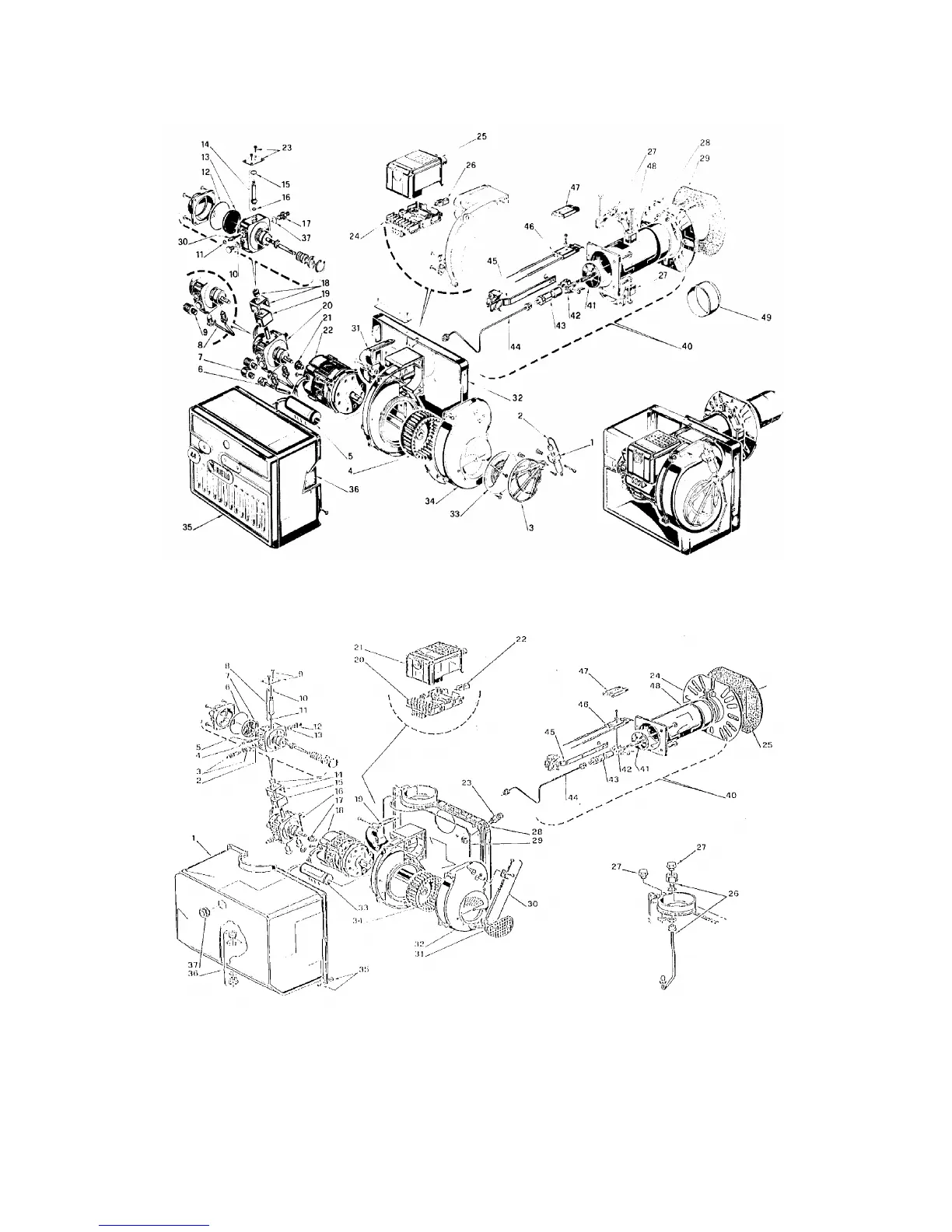

FIG 18 RIELLO BURNER MODEL 40 F3 & F5 EXPLODED ASSEMBLY
FIG 19 RIELLO BURNER MODEL 40 BF3 & BF5 EXPLODED ASSEMBLY
Item 2030016 Riello Burner End Cone Protector not shown. See Fig. 9 for its location.
