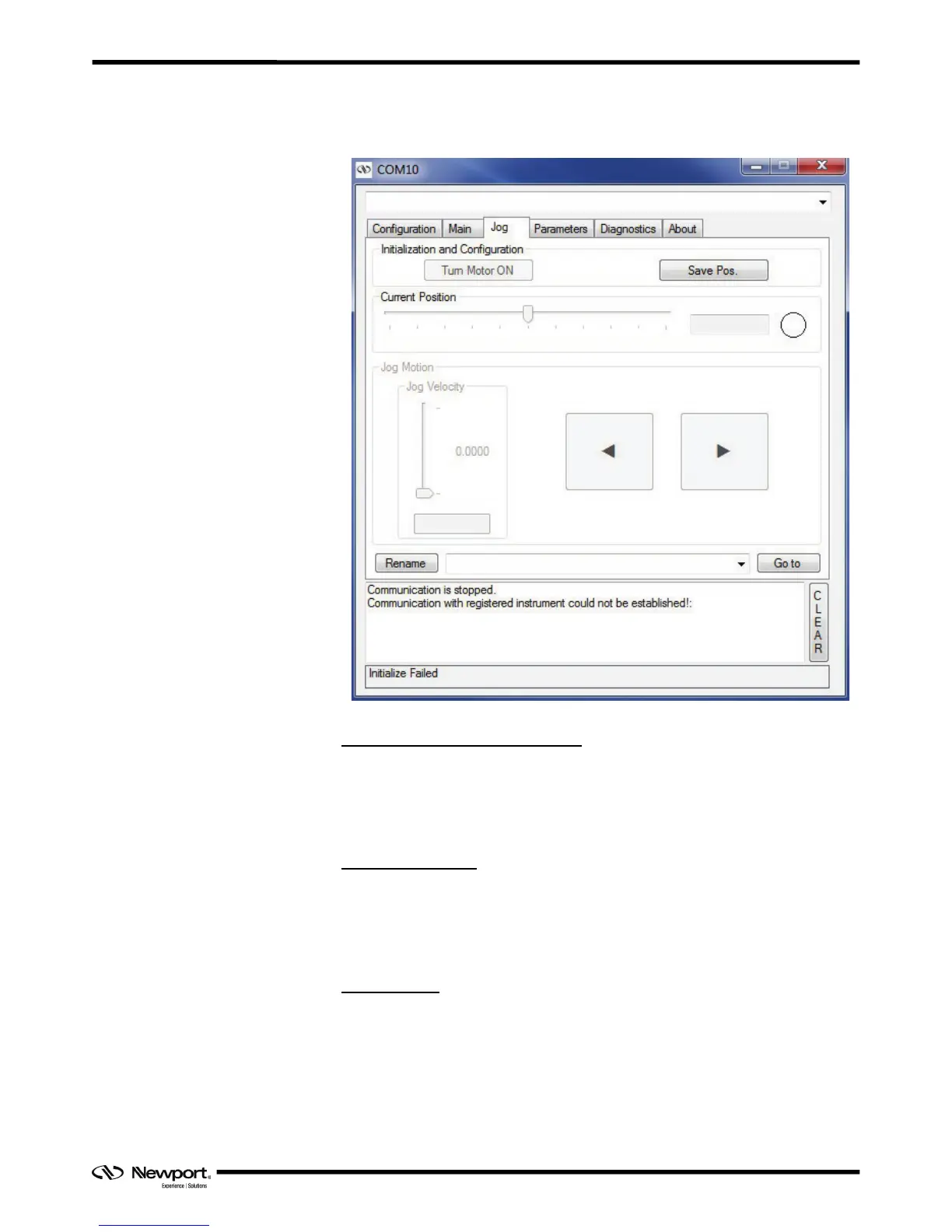

3.4 Jog
The Jog tab allows entry of the position value in the Jog mode.
“Initialization and Configuration”
In the “Initialization and Configuration” area, the first button switches between the
Local and Remote states. The second button “Save Pos.” allows memorizes the current
positions in the combo box. As soon as a new position is memorized, this is displayed in
the trace.
“Current Position”
In the “Current Position” area, the current position is displayed in a text box and
visualized in the slider. The slider limits are defined with the ends of run. An LED
shows the current controller state. When you move the mouse over the LED, the
controller state is displayed in an information balloon.
“Jog Motion”
In the “Jog Motion” area, an indefinite move (MV) can be performed in either the
negative direction or a positive direction. Motion starts when a button is held down and
stops when the button is released.
“Jog Velocity”
In the “Jog Velocity” area, the jog velocity can be defined. Keep in mind that the
slider’s scale is logarithmic.
