ESP301 Controller GUI Manual

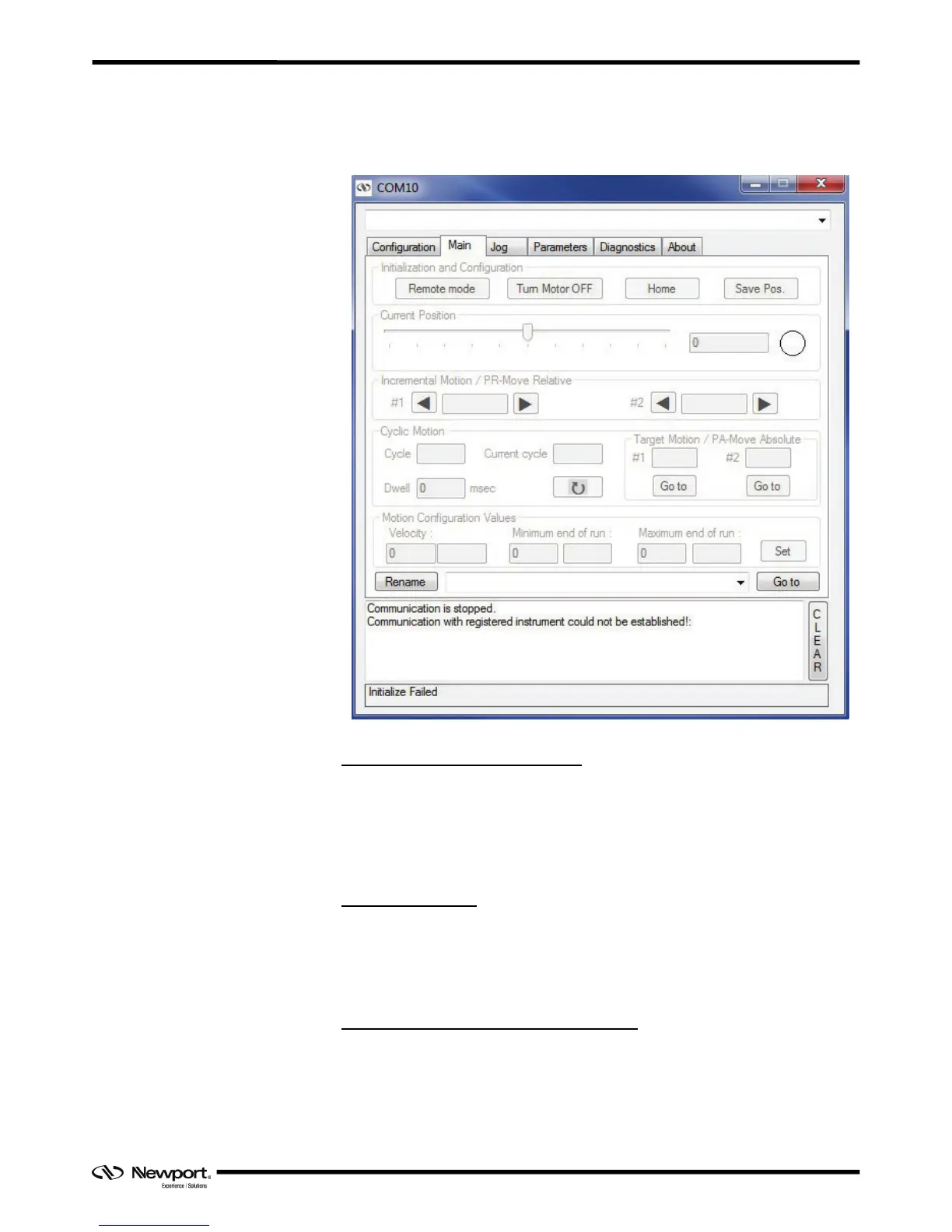

3.3 Main
The Main tab displays the main controls in the GUI like a virtual front panel. It is
updated each time the polling interval timer expires.
“Initialization and Configuration”
In the “Initialization and Configuration” area, the first button switches between the
Local and Remote states. The second button turns the motor: ON or OFF and Stop
Motion. The Home button commands the stage to go to the home position. The last
button “Save Pos.” memorizes the current positions in the combo box. As soon as a new
position is memorized, this is displayed in the trace.
“Current Position”
In the “Current Position” area, the current position is displayed in a text box and
visualized in a slider. The slider limits are defined with the ends of run. An LED shows
the current controller state. When you move the mouse over the LED, the controller
state is displayed in an information balloon.
“Incremental Motion / PR-Move Relative”
In the “Incremental Motion / PR-Move Relative” area, two steps can be defined. For
each step, a relative move is made in the negative direction or a positive direction.
EDH0282En1030 — 01/17
5
