Chapter 2: Jumpers and Connectors
DNA 1120/1120A User Manual

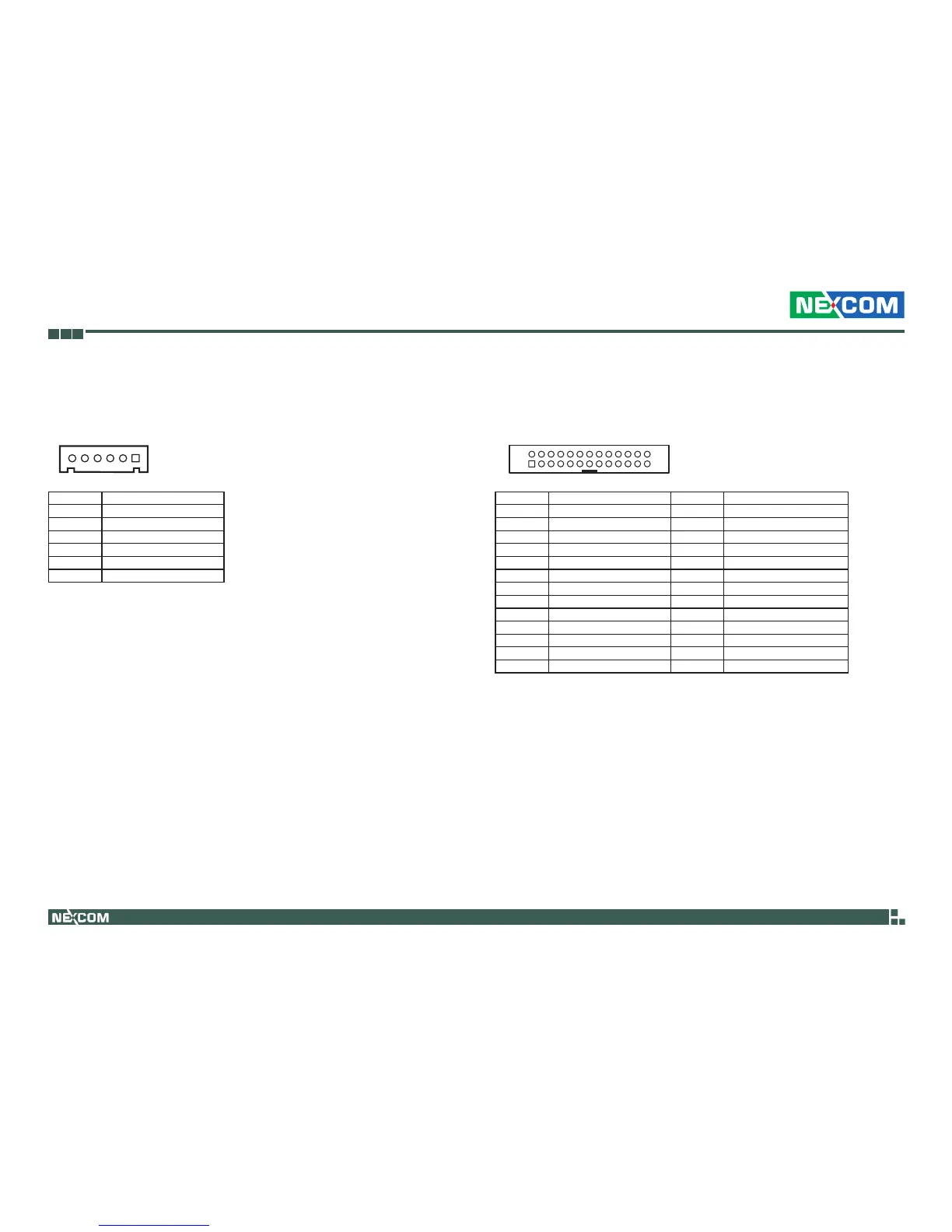

USB Connector
Connector type: 1x6 6-pin boxed header, JST-2.0mm-M-180
Connector location: J5
6
1
Pin Definition
1 VCC
2 USB2-
3 USB2+
4 USB3-
5 USB3+
6 GND
Parallel Connector
Connector type: 1x13 26-pin box header, 2.0 mm pitch
Connector location: CN9
1
14
13
26
Pin Definition Pin Definition
1 LPT_STB#R 14 GND
2 LPT_AFD#R 15 LPT_PDR6
3 LPT_PDR0 16 GND
4 LPT_ERR# 17 LPT_PDR7
5 LPT_PDR1 18 GND
6 LPT_INIT#R 19 LPT_ACK#R
7 LPT_PDR2 20 GND
8 LPT_SLIN#R 21 LPT_BUSY
9 LPT_PDR3 22 GND
10 GND 23 LPT_PE
11 LPT_PDR4 24 GND
12 GDN 25 LPT_SLCT
13 LPT_PDR5 26 GND
