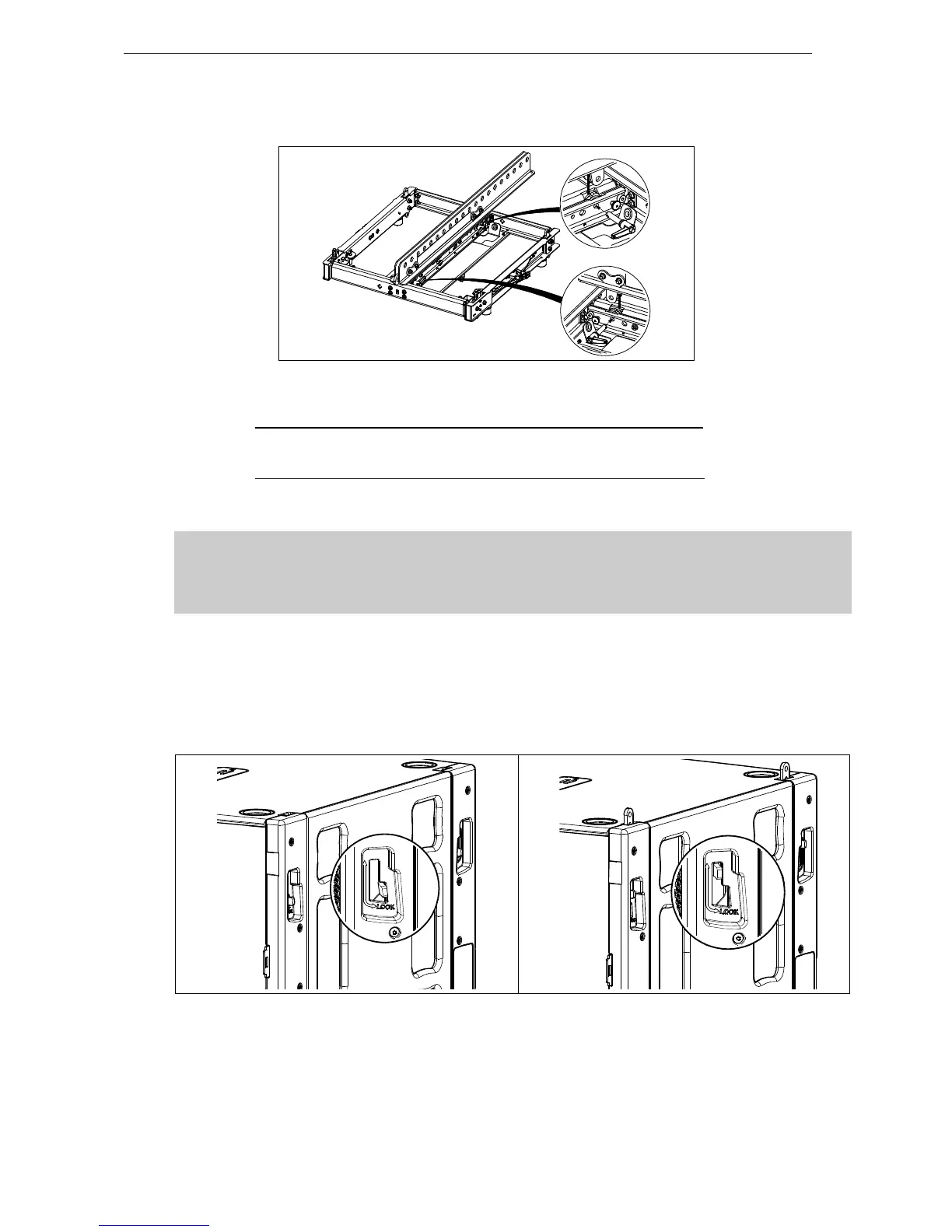

GEO M12 HARDWARE SETUP PROCEDURE Page 59/90
- If required, position VNT-EXBARM12 frontwards or rearwards into VNT-BUMPM12 slots and lock
devices with the quick release pins 12x40 stored on VNT-BUMPM12.
- Insert shackle(s) in bumper or in extension bar in required hole(s), ie:
o If using 1 hoist on VNT-EXBARM12, it must be connected to hole “G”
o If using 2 hoists on VNT-EXBARM12, connect these using extreme holes (“A” and “T”)
o VNT-BUMPM12 without extension bar can only be flown with 2 hoists
- Connect hoist hook(s) to shackle(s) and lift assembly to sufficient height in order to connect a second
MSUB18;
IMPORTANT
Ensure hoist hook(s) is (are) properly secured to VNT-BUMPM12 or VNT-EXBARM12
shackle(s)
Ensure that all quick release pins are locked
- Release first MSUB18 bottom connecting points latches and unlock second MSUB18 top front and
rear rigging points
- Align both MSUB18s rigging points, lower second MSUB18 on first and lock them together
- Connect subsequent MSUB18 subwoofers by unlocking upper points and setting lower points in
auto-lock mode.
