NXAMPMK2 USER MANUAL PAGE 31 / 80

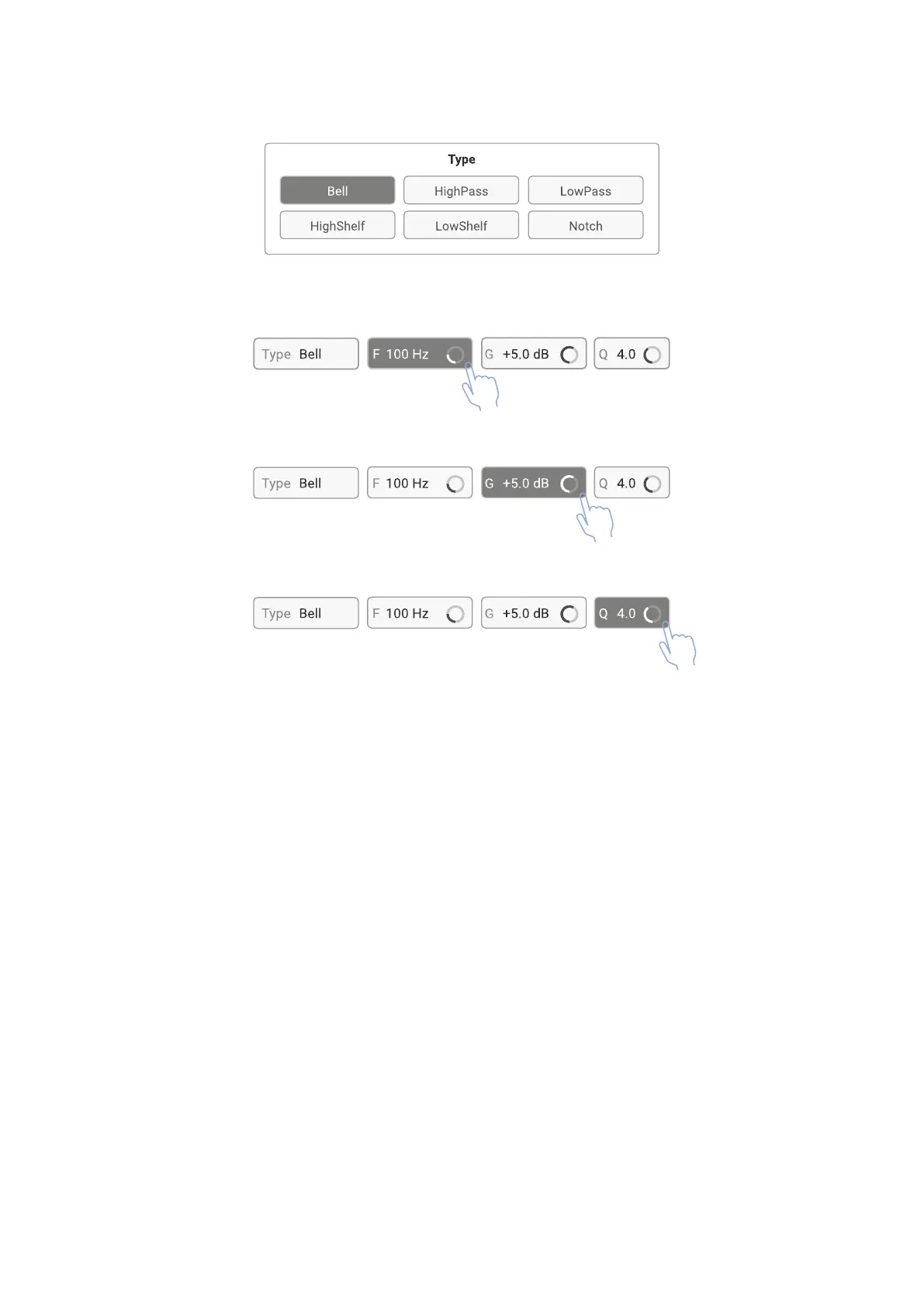

(9) Type of filter, to select between Bell (Parametric), HighPass (2
nd
Order), LowPass (2
nd
Order), HighShelf
(with adjustable Q), LowShelf (with adjustable Q) or Notch, from the following popup.
(10) Frequency adjustment, to select among the 120 center frequencies available for each filter from 20 Hz
to 20 kHz. Adjust the value using rotary knob encoder.
(11) Gain adjustment, for filter type with gain settings the gain can be adjusted between -18 dB and +18 dB.
(12) Q Factor adjustment, to select among the 40 steps available for each filter from 0.1 to 10.
(13) Add an EQ point. Up to 8 EQ point can be set for each channel.
(14) Delete an EQ band.
(15) EQ band ON/OFF . A Global ON/OFF is available on the EQ main view.
(16) EQ point number currently in edition.
(17) Channel(s) currently being edited. If several channels are selected, you will be prompted to flatten the
EQ in case of different EQs.
(18) OK, back to the selected channel EQ main view.
