AMPLIFIERS
___________________________________________________________________________________________________
P.2
7
Outputs

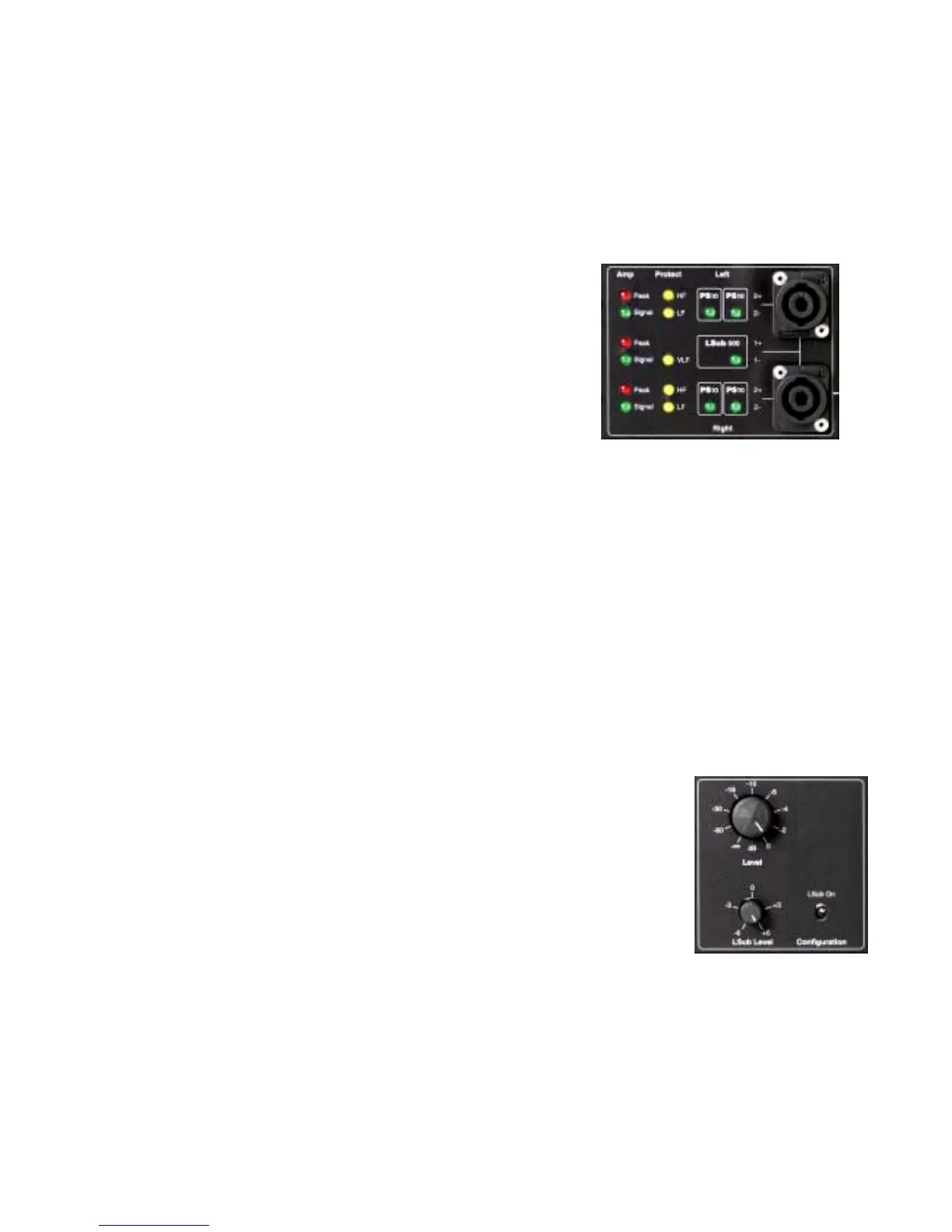

The two Speakon connectors are automatically configured with a visual indication of the current wiring.
Configuration can be made while the system is operating.
Sub On = 3 amplifier channels :
The two PS10 Stereo channels are assigned to poles 2+ and
2- on the L & R Speakons. A single PS10 LED lights up on
each Stereo channel.
The LSub 500 channel is Mono L+R summed and assigned in
parallel to poles 1+ and 1- of both Speakons. The LS500 LED
lights up.
Sub Off = 2 amplifier channels:
The two PS10 Stereo channels are assigned to poles 2+ and 2- on the L & R Speakons. Two PS10 LEDs
are lighted on each channel. Poles 1+ and 1- of both Speakons are disconnected. The LS500 LED is off.
Sub Bass Channel
The LSub On Switch automatically reconfigures the PSAmp according to its two operating modes :
Sub On = 3 amplifier channels :
2 x 430 Watts into 8 Ohm channels feed two PS10s in Stereo.
1 x 850 Watts into 4 Ohm channel feeds the LSub 500 in Mono L+R.
Sub Off = 2 amplifier channels :
2 x 850 Watts into 4 Ohm channels feed two or four PS10s in Stereo.
The 1700 W power capability of the PSAmp is always used whether or not the
LSub is operated. The Sub amplifier channel is rerouted to the PS10s in the
Sub Off operating mode. In both cases the installation is always stereophonic.
Level control
The Level control operates simultaneously on all 2 or 3 channels according to
configuration.
The LSub Level control adjusts the relative level of the LSub relative to the PS
when Sub is On.
It is independent of overall Level control.
