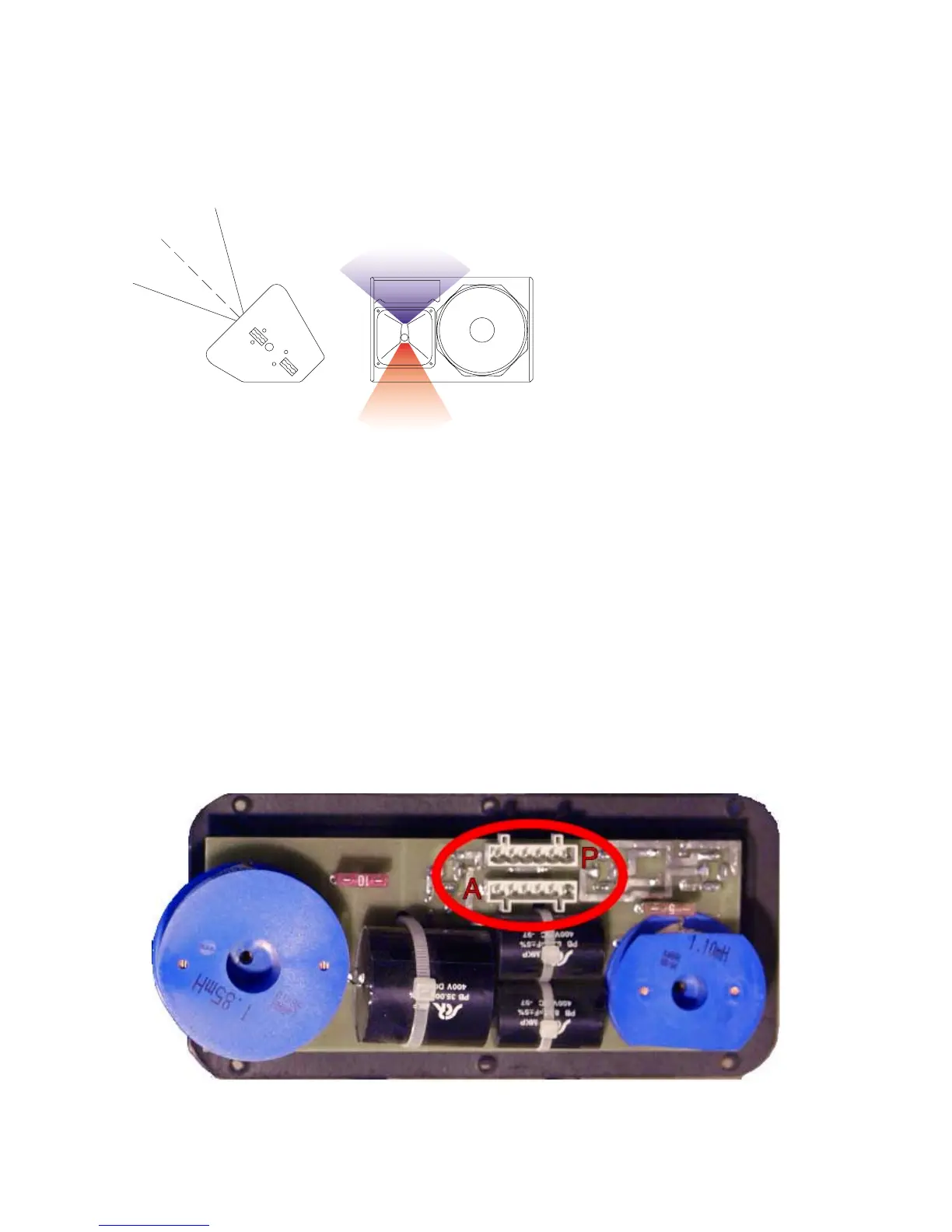

« Stage Monitor » Configuration
For stage monitors the required
coverage is always wider when
performers are close to the
wedge (above the horn axis)
than when they move away from
it (below the horn axis). For floor
monitor use the horn must be
rotated with its "wide" dispersion
side directed towards the top of
the cabinet (as shown by the
arrow) in wedge position as
shown in the above figure. The
specific dispersion pattern, the 2"
driver and the very high power
handling all contribute to the
exceptional performance of the
PS15 as a wedge monitor.
Active / Passive configuration (PS15 Only)
Switching from passive (factory setting) to active requires modifications to both the PS15 cabinet and
TDcontroller. (For the latter see « Active / Passive switching » page 21).
For the PS15, unscrew the connector plate at the rear of the cabinet (TORX 20 or Allen 2.5) and rotate the
6-pole connector through 180° from socket « P » to socket « A ». Replace the connector plate, taking care
to remove the plastic blanking plug in the 2 WAY Active Speakon connector. It is strongly recommended
to blank off the two PASSIVE Speakon connectors with blanking plugs to prevent any cabling errors at a
later stage.
See also « Speaker Wiring » section page 5.
100˚
50˚
+30
˚
-2
5
˚
