Page 12/54 RS18 GENERAL INSTRUCTIONS

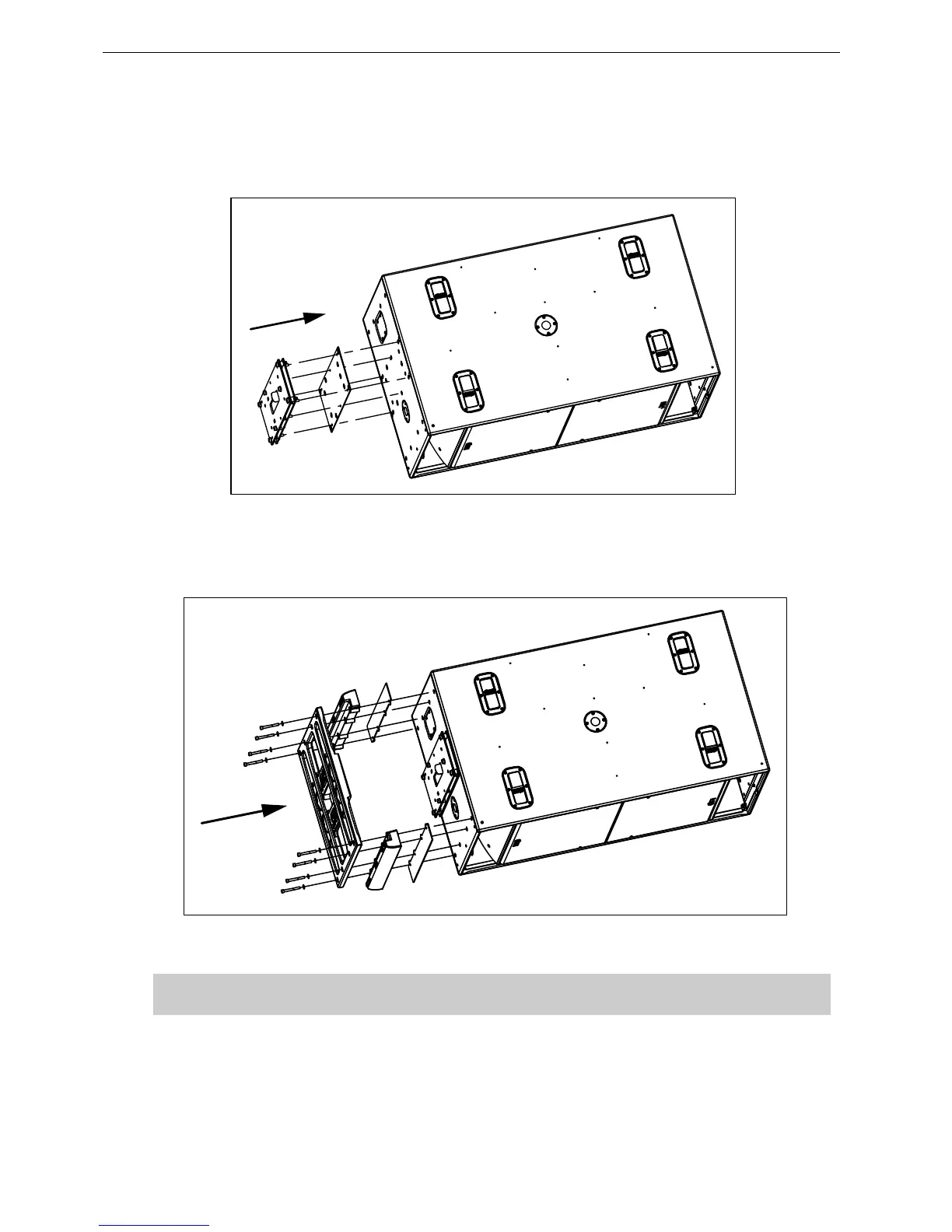

• Insert Spacer between cabinet and Rigging plates.
• Fill each screw hole with Loctite 243 or equivalent.
• Tighten the 6 screws alternately, at the rate of 4 revolutions per screw.
• Fill each screw hole with Loctite 243 or equivalent.
• Insert the 8 handles washers and screws and tight them.
INSTALLING PAINTED RS18 RIGGING PLATES
IMPORTANT
RS18 handles must not be used to fly RS18’s (through illegal use of straps for example)
