RS18 GENERAL INSTRUCTIONS Page 15/54
1.1.3 RS18 Dolly
IMPORTANT
1- TRANSPORTING RS18 ON DOLLY REQUIRES THAT FLYING PLATES ARE INSTALLED
ON ALL CABINETS SO THAT RS18’S CAN BE SECURED TOGETHER:
2- RS18 DOLLY IS DESIGNED FOR UP TO 3 RS18’S AND BUMPER;
NEVER EXCEED THESE QUANTITIES.

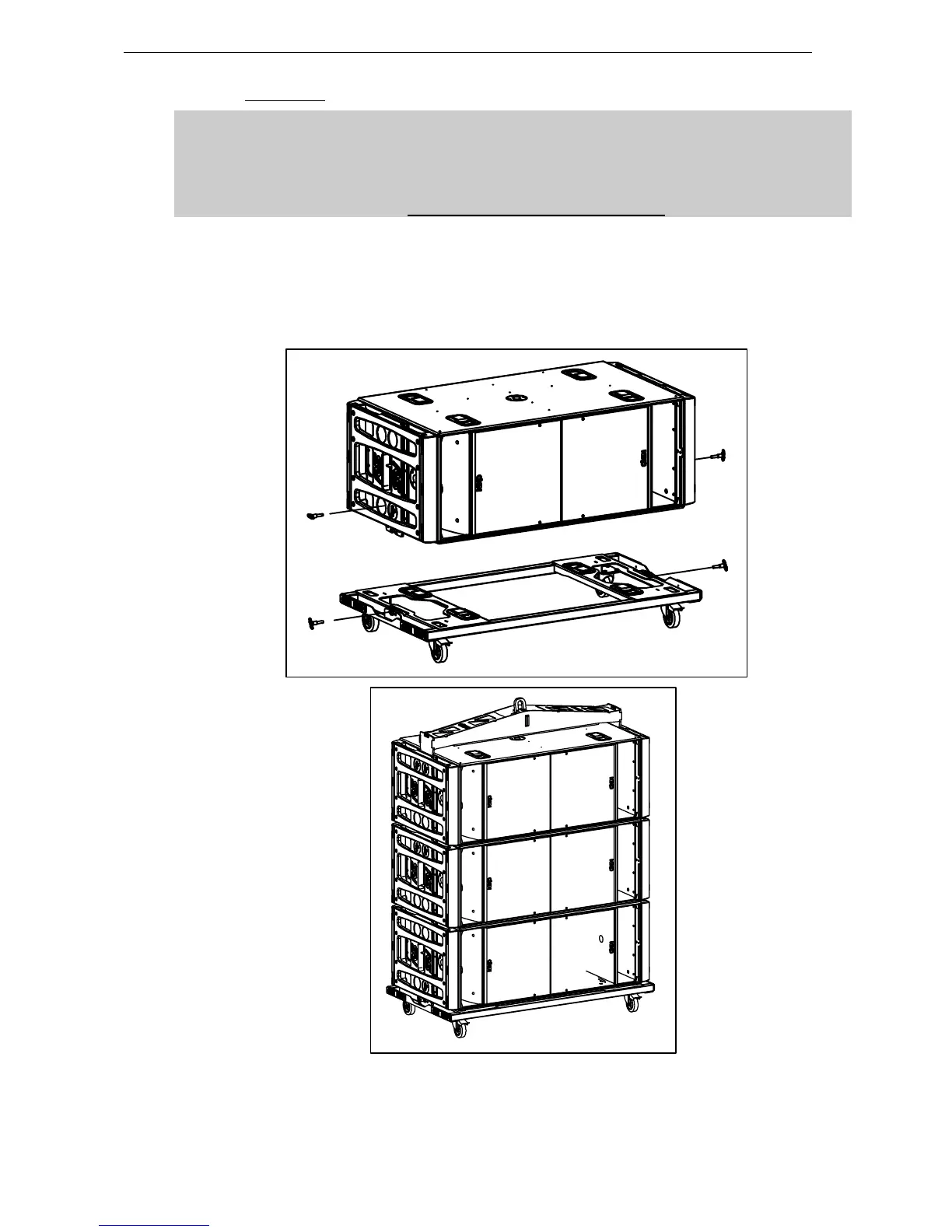

• The first RS18 must be locked to the RS18 dolly using 4 push-pins according to below drawing;
• Subsequent RS18s are stacked on top using four push-pins per additional cabinet to secure the
assembly.
• Bumper is to be attached to the top cabinet.
