RAY SUBS IMPLEMENTATION Page 37/54
“FACE TO FACE“ CONFIGURATION
7.2.3 RS18s arrays
IMPORTANT
RS18s arrays must be installed with bumper set horizontally and all cabinets at 0°.
Flying RS18s columns can significantly improve low frequency coverage in the vertical plane, and
therefore over audience depth provided height is sufficient.
A 10 RS18 cluster flown at 10m/30ft will provide a +/- 3dB pressure level deviation at 100Hz over an
audience area 75m/200ft deep while maintaining 15 to 20dB attenuation on stage (see figure below).

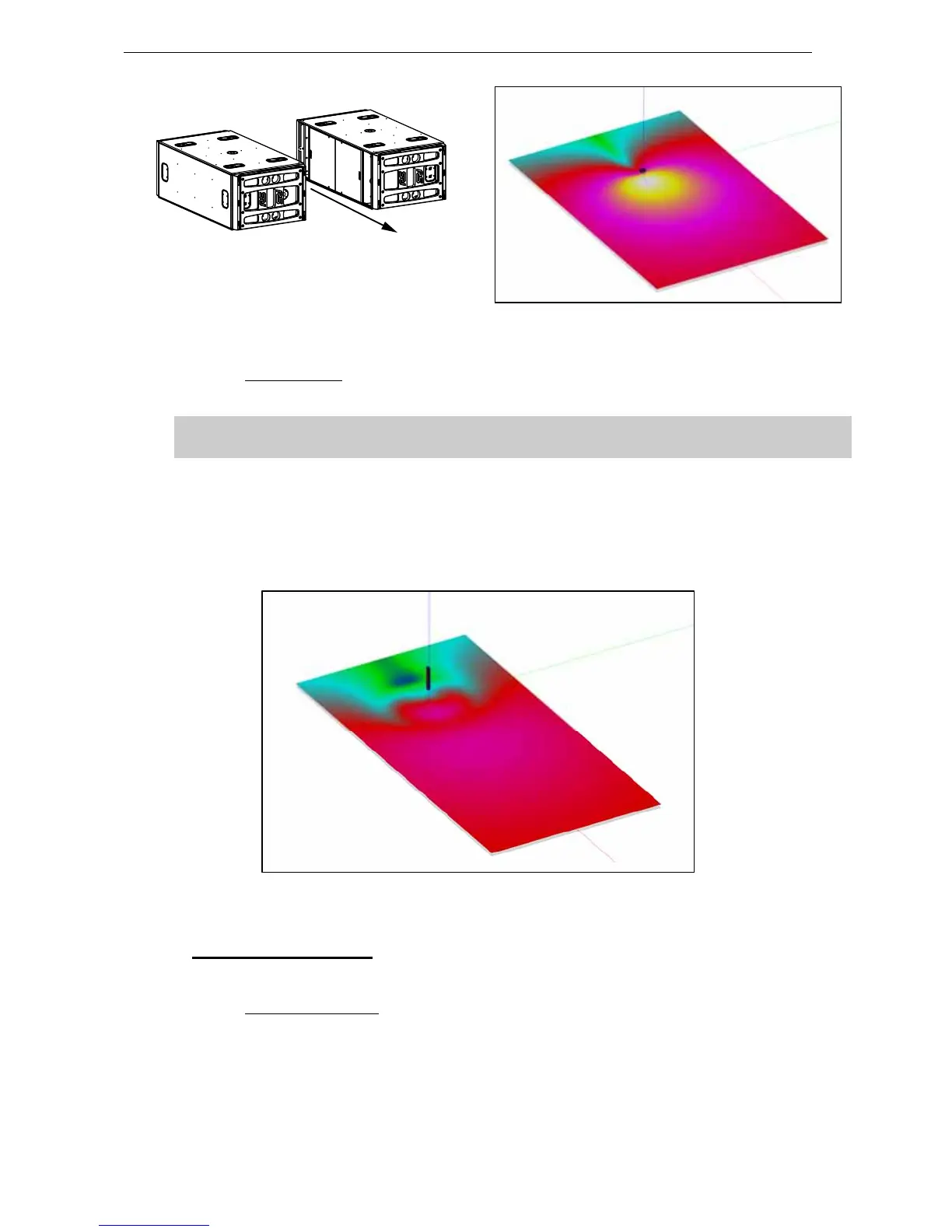

10 RS18 CLUSTER OVER 75M/200FT
7.3 Steered RS18s arrays
7.3.1 Steering technique
RS18s arrays must be flown vertically with bumper set horizontally and all cabinets at 0°.
Coverage adjustments can be efficiently implemented through the “steering” technique, which consists
in implementing delays in cabinets to tilt coverage up or down.
