Nexo RS18

NEXO TD CONTROLLERS AND RS18 SETUPS Page 21/54
3 NEXO TD CONTROLLERS AND RS18 SETUPS
3.1 RS18 and NXAMP TDControllers
NEXO Powered TDControllers NXAMP 4X1 & 4X4 are integrated solutions for Control and amplification
for all NEXO speaker ranges.
NXAMP4x1 and NXAMP4x4 power capability is listed in the table below:
Mode 4 Channels Bridge Stereo
NXAMP4x1 4 x 600 Watts / 8 Ohms
4 x 900 Watts / 4 Ohms
4 x 1300 Watts / 2 Ohms
2 x 1800 Watts / 8 Ohms
2 x 2600 Watts / 4 Ohms
NXAMP4x4 4 x 1900 Watts / 8 Ohms
4 x 3300 Watts / 4 Ohms
4 x 4000 Watts / 2 Ohms
2 x 6600 Watts / 8 Ohms
2 x 8000 Watts / 4 Ohms
3.1.1 NXAMP connectors
NXAMP4x1 and NXAMP4x4 rear panels feature:
• 4 analog inputs / outputs (links) on XLR3 connectors;
• 4 digital inputs / outputs on RJ45 connectors with optional card;
• 4 speaker level outputs on NL4FC connectors.

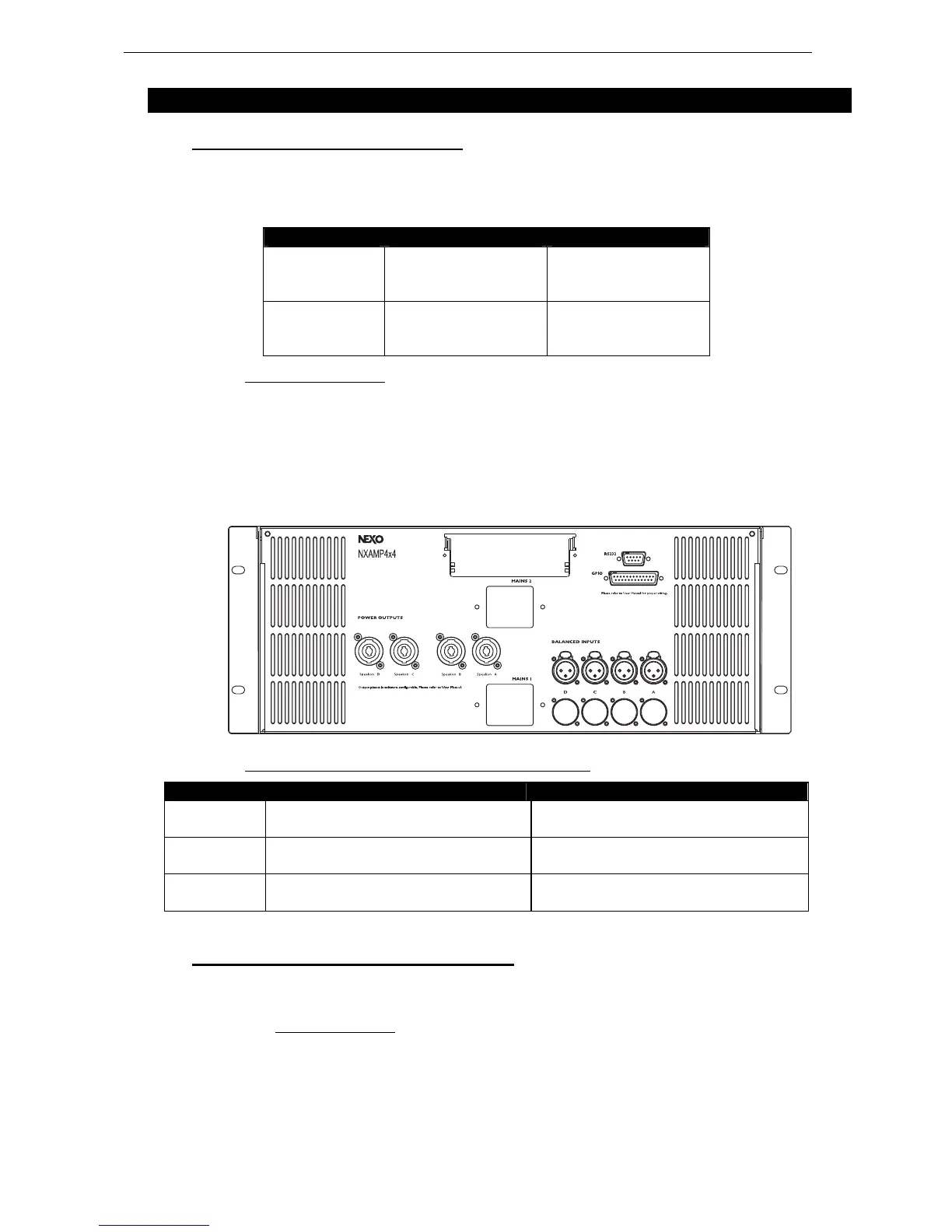

Figure below shows connectors implementation on the rear panel.
3.1.2 RS18 and NXAMP recommended configurations
OMNI MODE DIRECTIONAL MODE
1 x RS18 1 channel of NXAMP4x1 in Bridge Stereo Mode
1 channel of NXAMP4x4 in 4 channels mode
2 channels of NXAMP4x1 in Bridge Stereo Mode
2 channels of NXAMP4x4 in 4 channels mode
2 x RS18 2 channels of NXAMP4x1 in Bridge Stereo Mode
2 channels of NXAMP4x4 in 4 channels mode
2 channels of NXAMP4x1 in Bridge Stereo Mode
2 channels of NXAMP4x4 in 4 channels mode
3 x RS18 2 channels of NXAMP4x4 in 4 channels mode 2 channels of NXAMP4x4 in 4 channels mode
3.2 RS18 setups on NXAMP TDControllers
At RS18 release time (February 2010), 60 setups combining RS18 with NEXO speakers are available in
NX242-ES4 / NXAMP load 2.52.
Please consult www.nexo-sa.com
periodically for upgrade releases.
