RS18 RIGGING INSTRUCTIONS Page 29/54

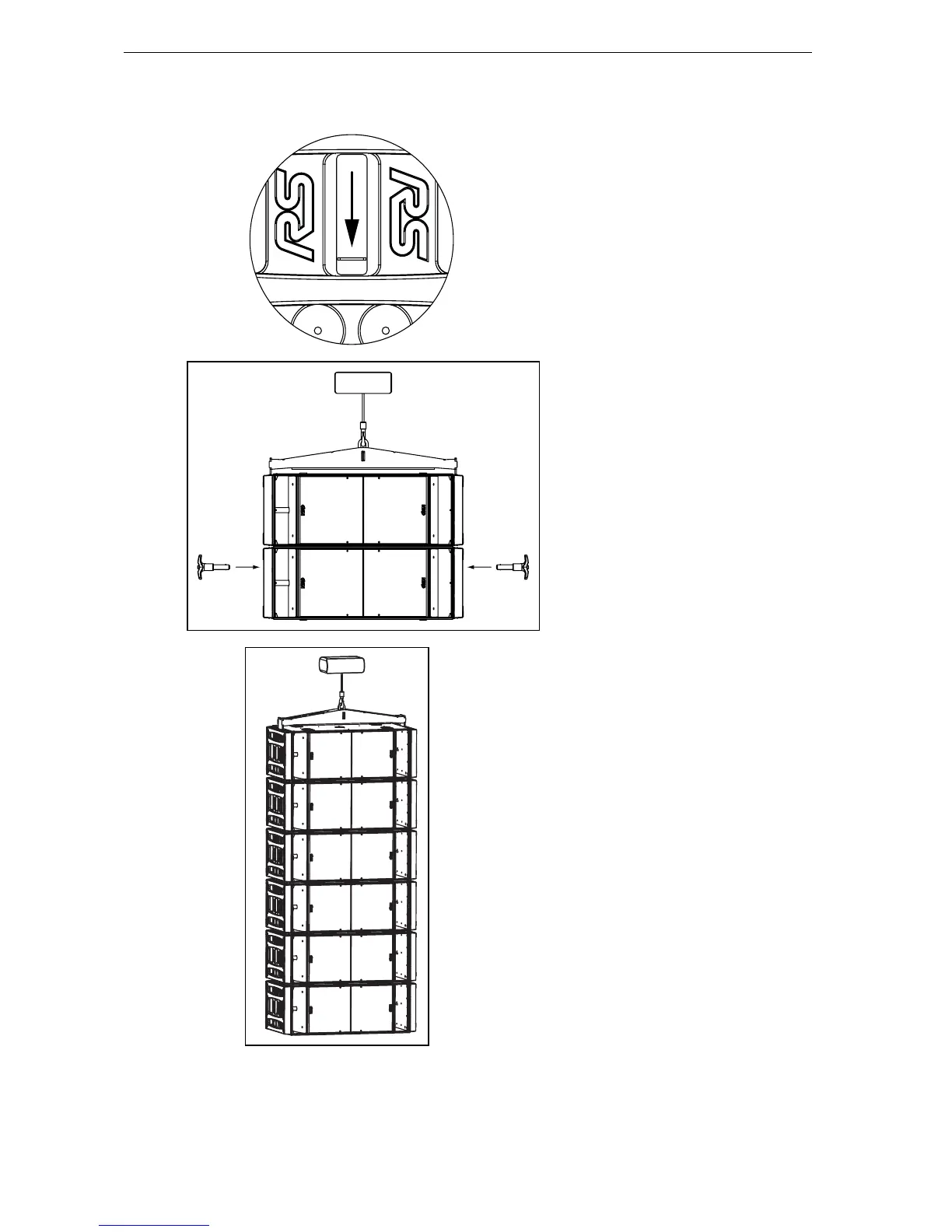

• On both sides, push the top RS18
sliding connecting plate all the way
downwards into the second RS18
rigging system
• Insert the 4 quick release pins into
the FLOWN position of second RS18
•
ensure quick release pins are
properly locked;
• Repeat above steps for subsequent
RS18’s;
• Lift cluster up to defined rigging
height, and secure it horizontally to
prevent rotation.
To Next Page
