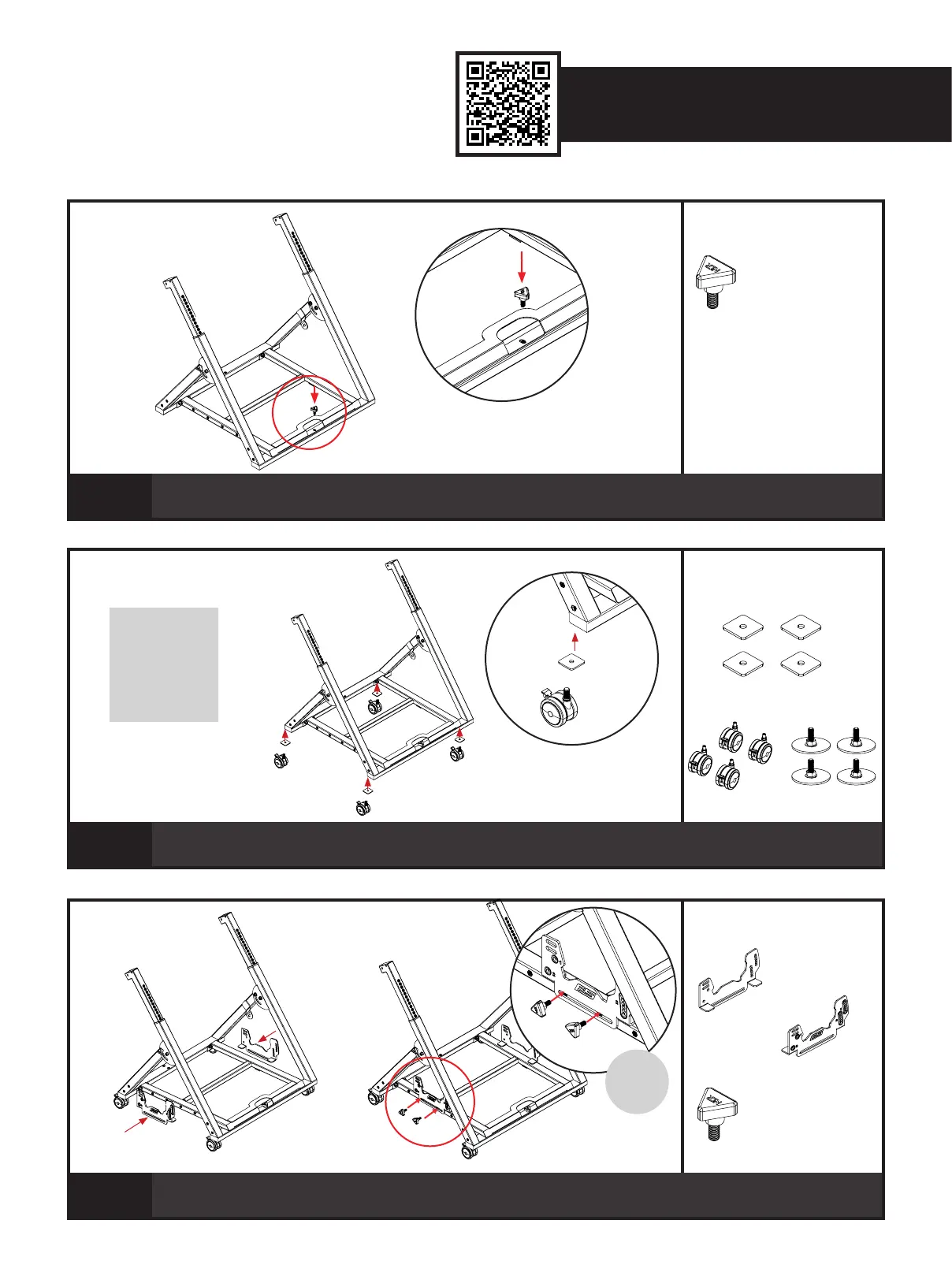

PARTS:
• • 1 x M8 20mm Knob
04
Secure the Pedal Frame with a M8 Knob.
PARTS:
• • 4 x M8 Square Washers
• • 4 x Castor Wheels/ Height
Adjustable Feet
05
Align the M8 Castor Wheels and Square Washers with the threaded inserts on the Frame and fasten
using the 14mm Wrench.
PARTS:
• • Pedal Brackets
• • 4 x M8 20mm Knobs
06
A) Align the slot on the Pedal Brackets with the threaded inserts on the Pedal Frame.
B) Bolt through and secure with 2 x M8 Knobs. Repeat on the other side.
(LEFT)
(RIGHT)
OR
A) B)
Repeat
on Other
Side
Note: If setting up
the Flight Stand on
uneven floors, it is
recommended to
install with the Height
Adjustable Feet to
stabilise the cockpit.
