Video Instruction: bit.ly/nlrbuild

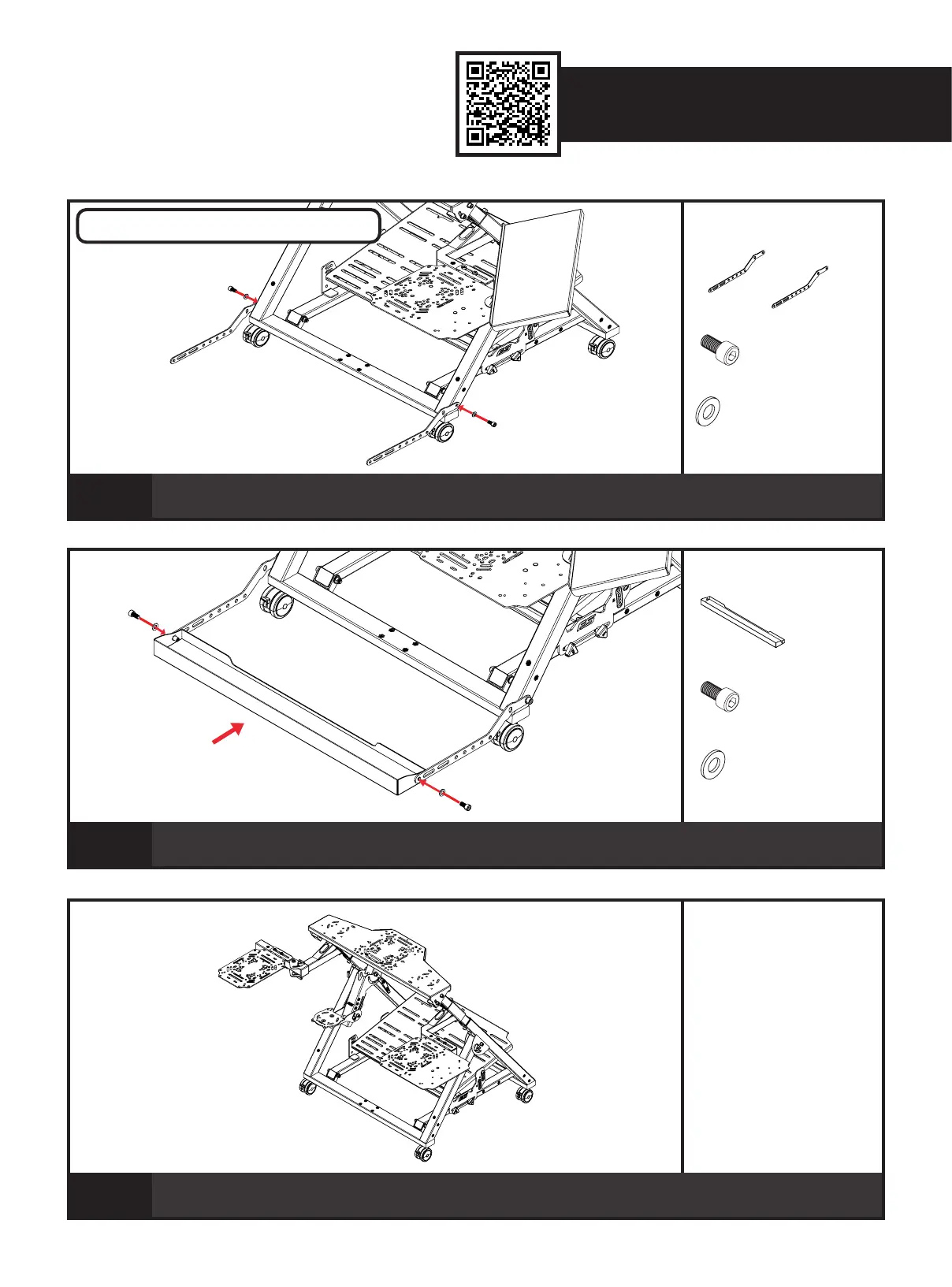

PARTS:
• • Wheel Cradle Extension Arms
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
46
Align the mounting holes on the Wheel Cradle Extension Arms with the threaded inserts on the Frame.
Bolt through and secure with 2 x M8 Bolts and Washers.
PARTS:
• • 1 x Wheel Cradle
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
47
Align the threaded inserts on the Wheel Cradle with the holes on the Wheel Cradle Extension Arms.
Bolt through and secure with 2 x M8 Bolts and Washers.
PARTS:
• • NIL
48
Your Setup is complete.
WHEEL CRADLE INSTALLATION
