Next Level Racing FLIGHT STAND PRO - Flight Deck and Arm Assembly

15
Video Instruction: bit.ly/nlrbuild

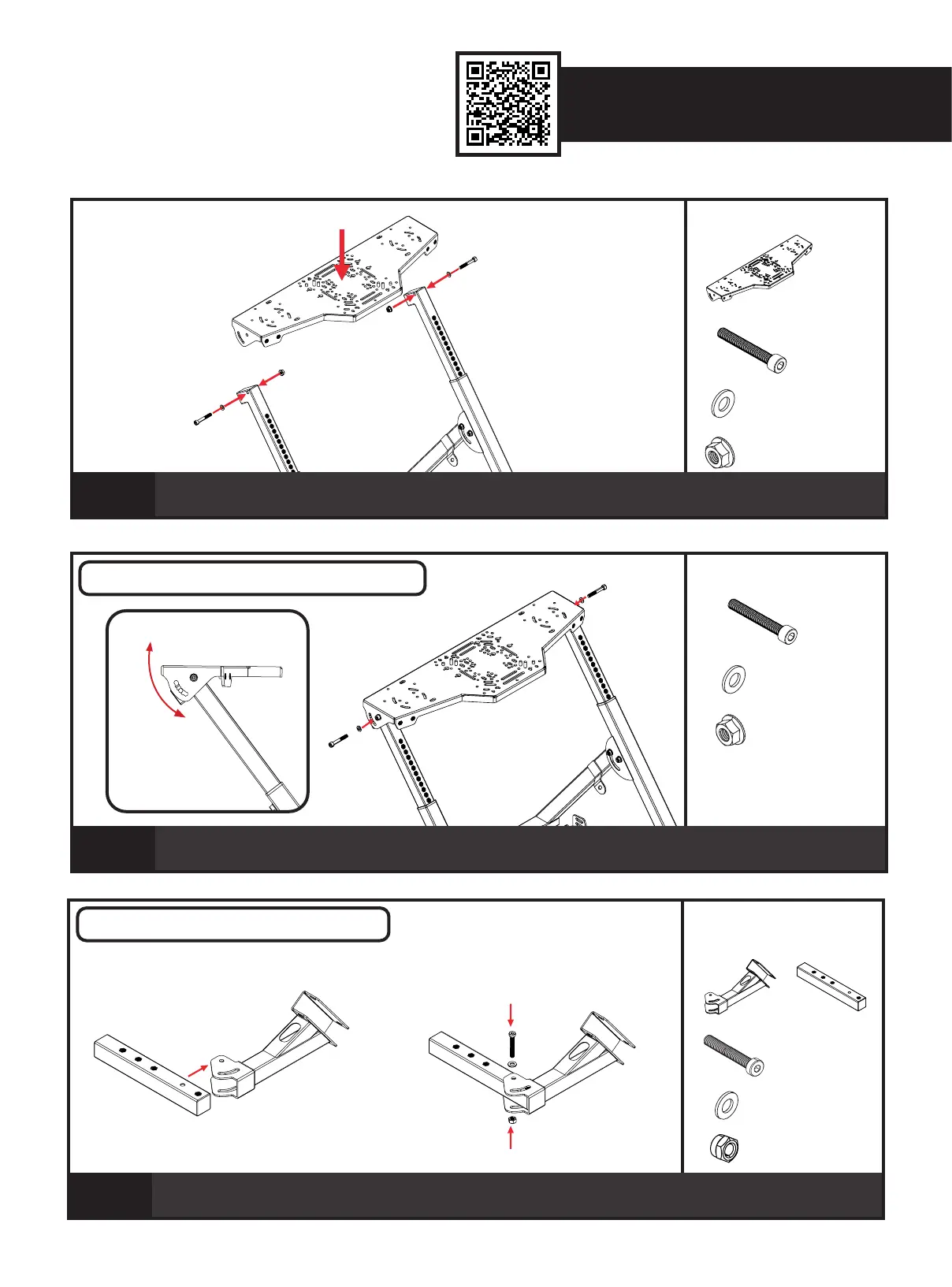

PARTS:
• • 1 x Flight Deck
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
10
Align the mounting holes on the Flight Deck with the through holes on the Vertical Posts. Bolt through
and secure with 2 x M8 Bolts, Washers and Flange Nuts.
PARTS:
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
11
A) Adjust the Flight Deck to the desired angle.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
PARTS:
• • Swivel Mounting Bracket
• • Swivel Arm
• • 1 x M8 50mm Low Profile Bolt
• • 1 x M8 Washer
• • 1 x M8 Ny-lock Nut
12
A) Align the through hole on the Swivel Arm with the through hole on the Swivel Mounting Bracket.
B) Bolt through and secure with 1 x M8 Bolt, Washer and Ny-lock Nut.
SWIVEL FLIGHT ARM ASSEMBLY
B)A)
A) B)
FLIGHT DECK ANGLE ADJUSTMENT
