Next Level Racing FLIGHT STAND PRO - Page 16

16
support@nextlevelracing.com

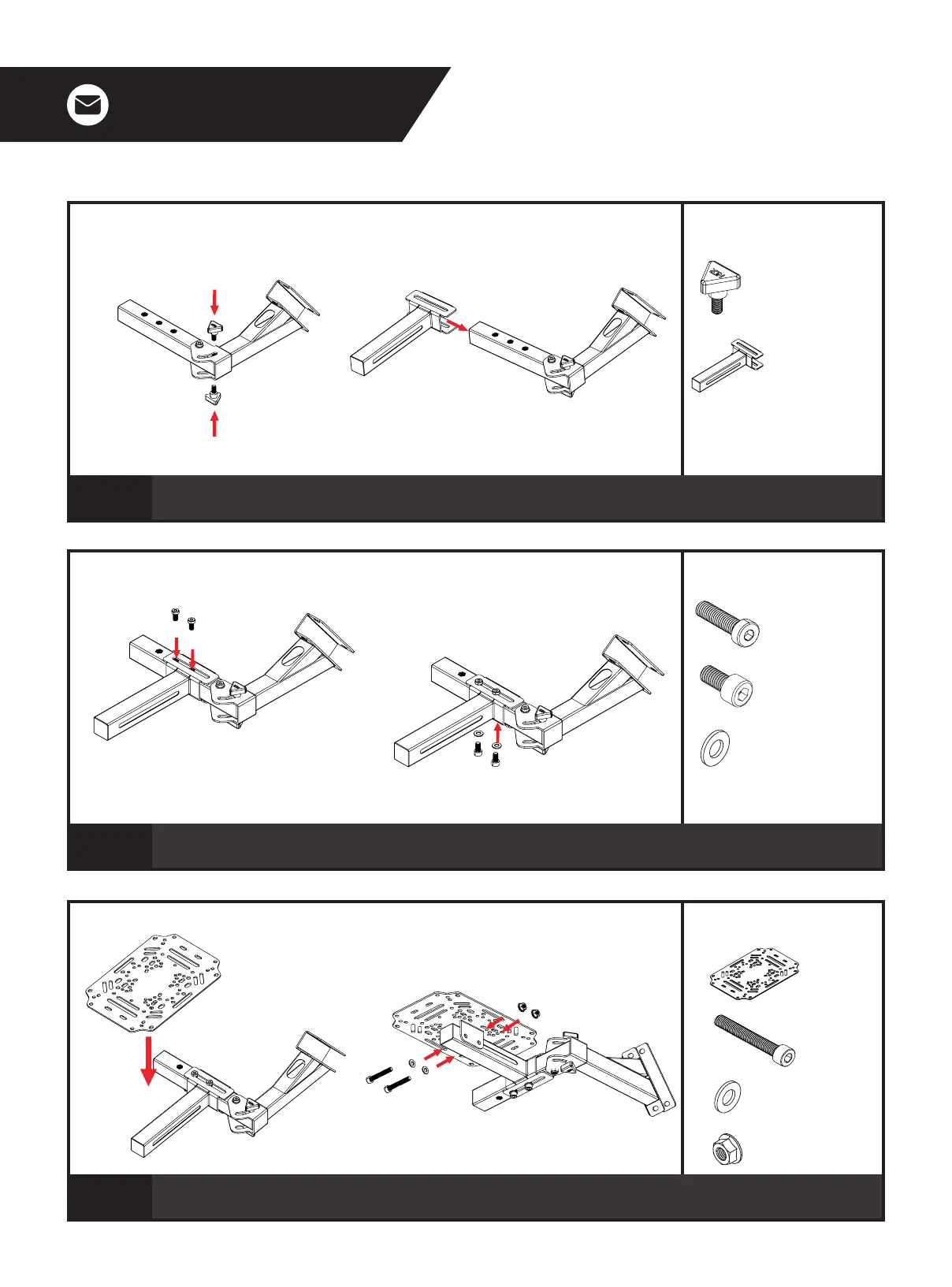

PARTS:
• • 2 x M8 20mm Knobs
• • 1 x Adjustment Arm
13
A) Bolt through the Swivel Mounting Bracket curved slots and secure with 2 x M8 Knobs.
B) Align the slots on the Adjustment Arm with the threaded inserts on the Swivel Arm.
PARTS:
• • 2 x M8 20mm Low Profile Bolts
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
14
A) Bolt through and secure the top side with 2 x M8 Low Profile Bolts.
B) Bolt through and secure the under side with 2 x M8 Bolts and Washers.
PARTS:
• • 1 x Flight Plate
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
15
A) Align the mounting holes on the Flight Plate with the slots on the Adjustment Arm.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
A)
A)
B)
B)
A) B)
