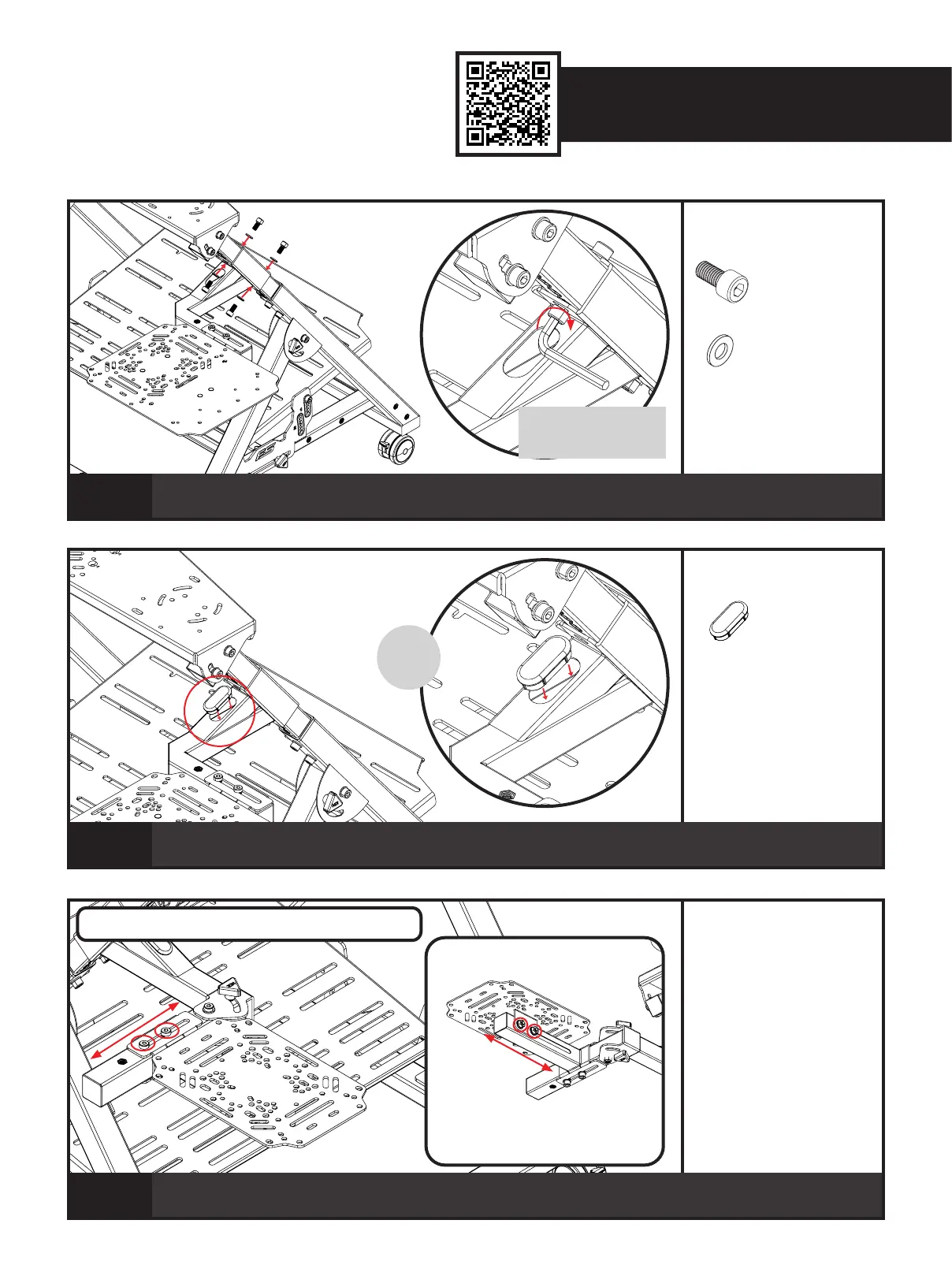

Next Level Racing FLIGHT STAND PRO - Flight;Swivel Arm Adjustment

19
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
22
A) Bolt through and secure with 4 x M8 Bolts and Washers.
B) Tighten the Bolts using the provided Allen Key.
PARTS:
• • 2 x Plastic Caps
23
Install a Plastic Cap on the cut-out of the Flight Arm Assembly. Repeat on the other side.
PARTS:
• • NIL
24
A) Loosen the Bolts securing the Adjustment Arm to the Swivel Arm/Flight Arm, adjust to the desired position and tighten to secure.
B) Loosen the Bolts securing the Flight Plate/Mouse Plate to the Adjustment Arm, adjust to the desired position and tighten to secure.
Repeat
on Other
Side
A) B)
A)
B)
FLIGHT/SWIVEL ARM ADJUSTMENT
Tip: Ensure the plastic cap is
not installed to allow for easy
rotation of the Allen Key.
