PARTS:
• • NIL
25

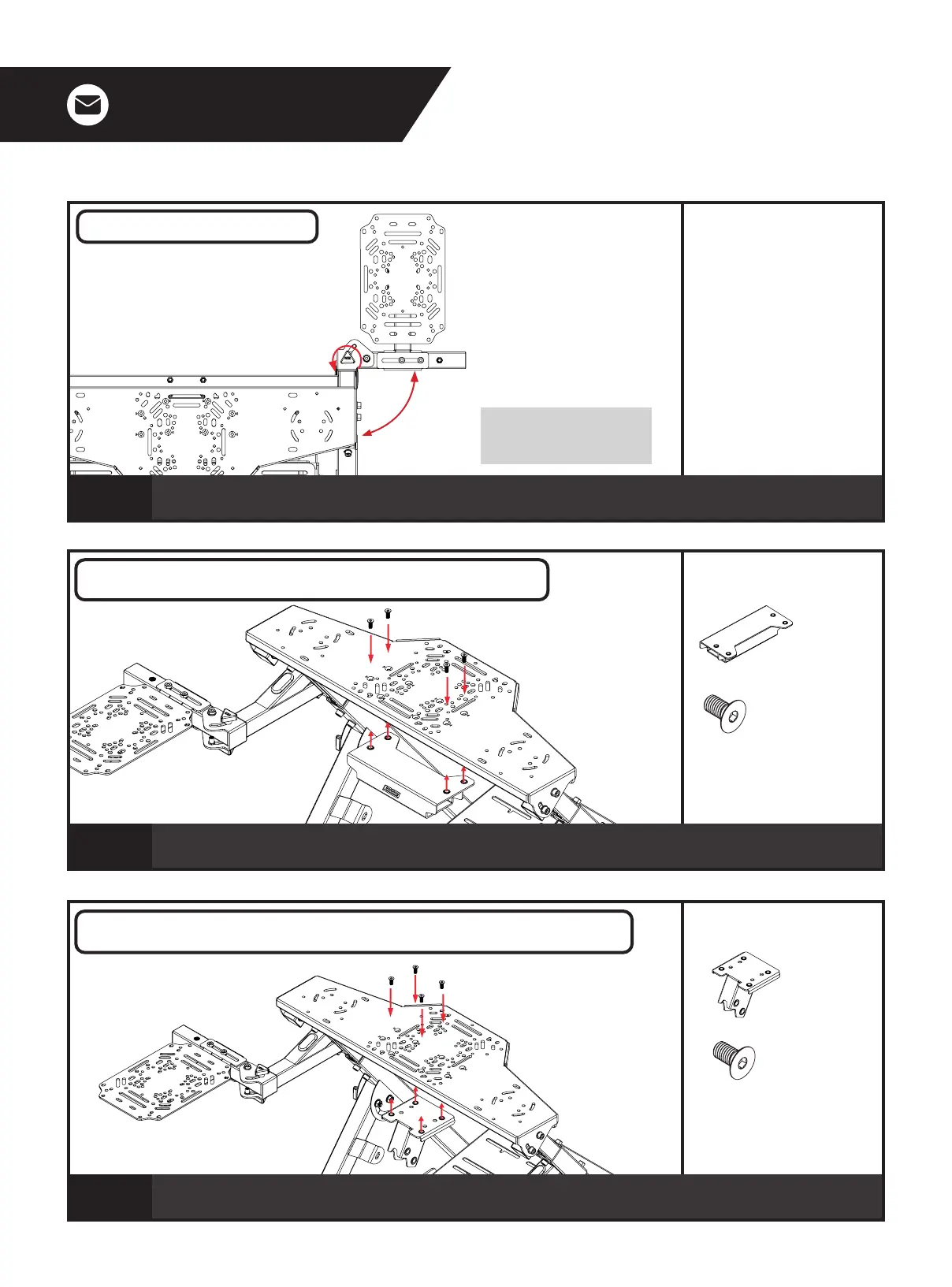

Loosen the M8 Knobs securing the Swivel Arm to the Swivel Mounting Bracket. Swing the Swivel Arm
to the desired position and tighten the M8 Knobs to secure.
PARTS:
• • 1 x Clamp Spacer Plate
• • 4 x M6 20mm Countersunk Bolts
26
Align the threaded inserts on the Clamp Spacer Plate with the countersunk holes on the Wheel Plate.
Bolt through and secure with 4 x M6 Countersunk Bolts.
PARTS:
• • 1 x HOTAS Mounting Bracket
• • 4 x M6 20mm Countersunk Bolts
27
Align the threaded inserts on the HOTAS Mounting Bracket with the countersunk holes on the Wheel
Plate. Bolt through and secure with 4 x M6 Countersunk Bolts.
OPTIONAL: CLAMP SPACER PLATE INSTALLATION
(RECOMMENDED FOR CLAMP YOKES AND ACCESSORIES)
OPTIONAL: REGULAR HOTAS CENTRE POLE INSTALLATION
(RECOMMENDED FOR REGULAR HOTAS STICKS)
SWIVEL ARM FUNCTION
Note: The swivel feature is
recommended when using a Wheel
Cradle for ease of access.
