21
Video Instruction: bit.ly/nlrbuild

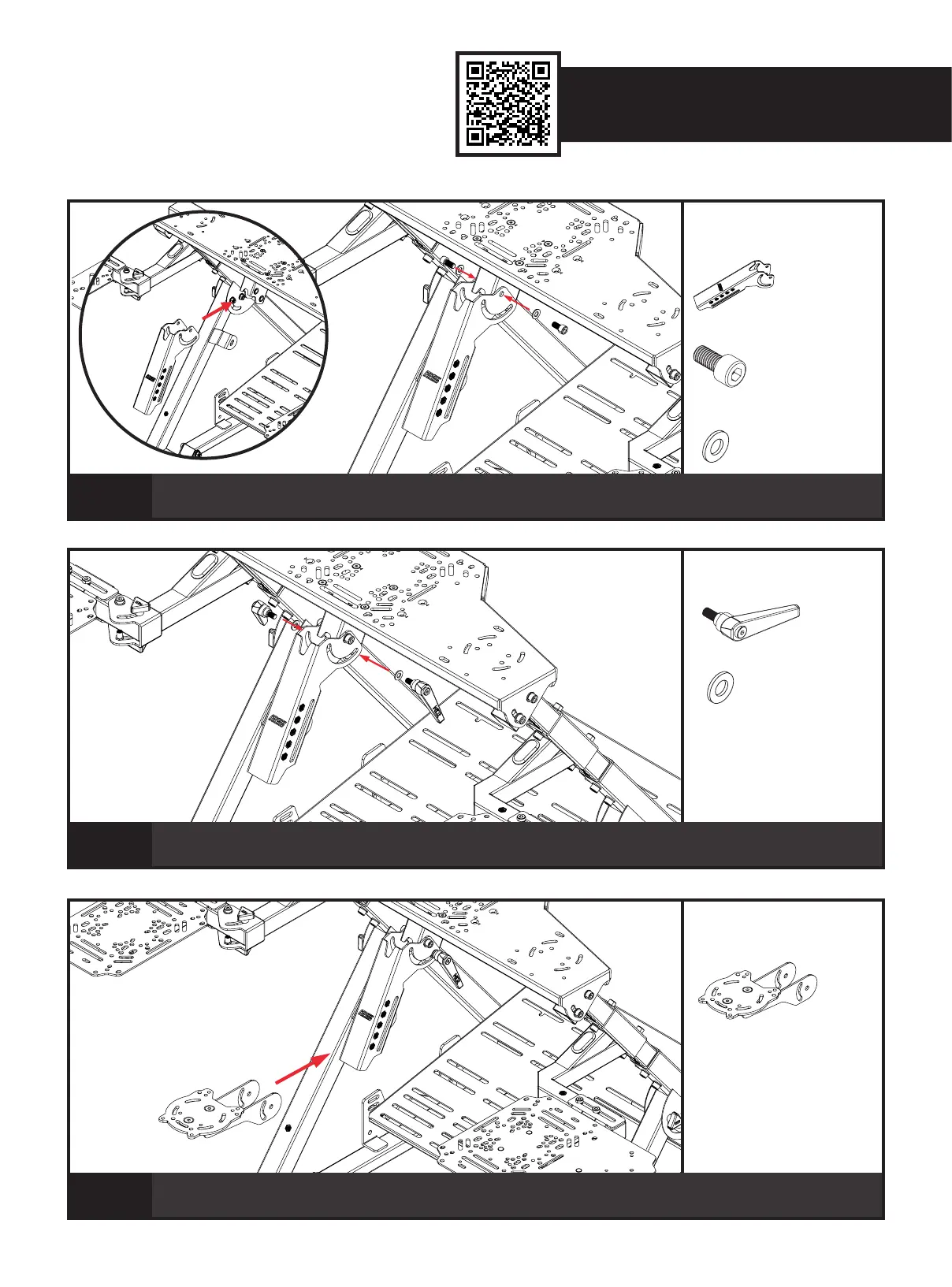

PARTS:
• • 1 x HOTAS Swivel Bracket
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
28
A) Align the mounting holes on the HOTAS Swivel Bracket with the threaded inserts on the HOTAS Mounting Bracket.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
PARTS:
• • 2 x M8 12mm Ratchet Handles
• • 2 x M8 Washers
29
Align the curved slot on the HOTAS Swivel Bracket with the threaded inserts on the HOTAS Mounting
Bracket. Bolt through and secure with 2 x M8 Ratchet Handles and Washers.
PARTS:
• • Pre-Assembled HOTAS Plate
30
Align the mounting holes on the Pre-Assembled HOTAS Plate with the slots on the HOTAS Swivel
Bracket.
A) B)
