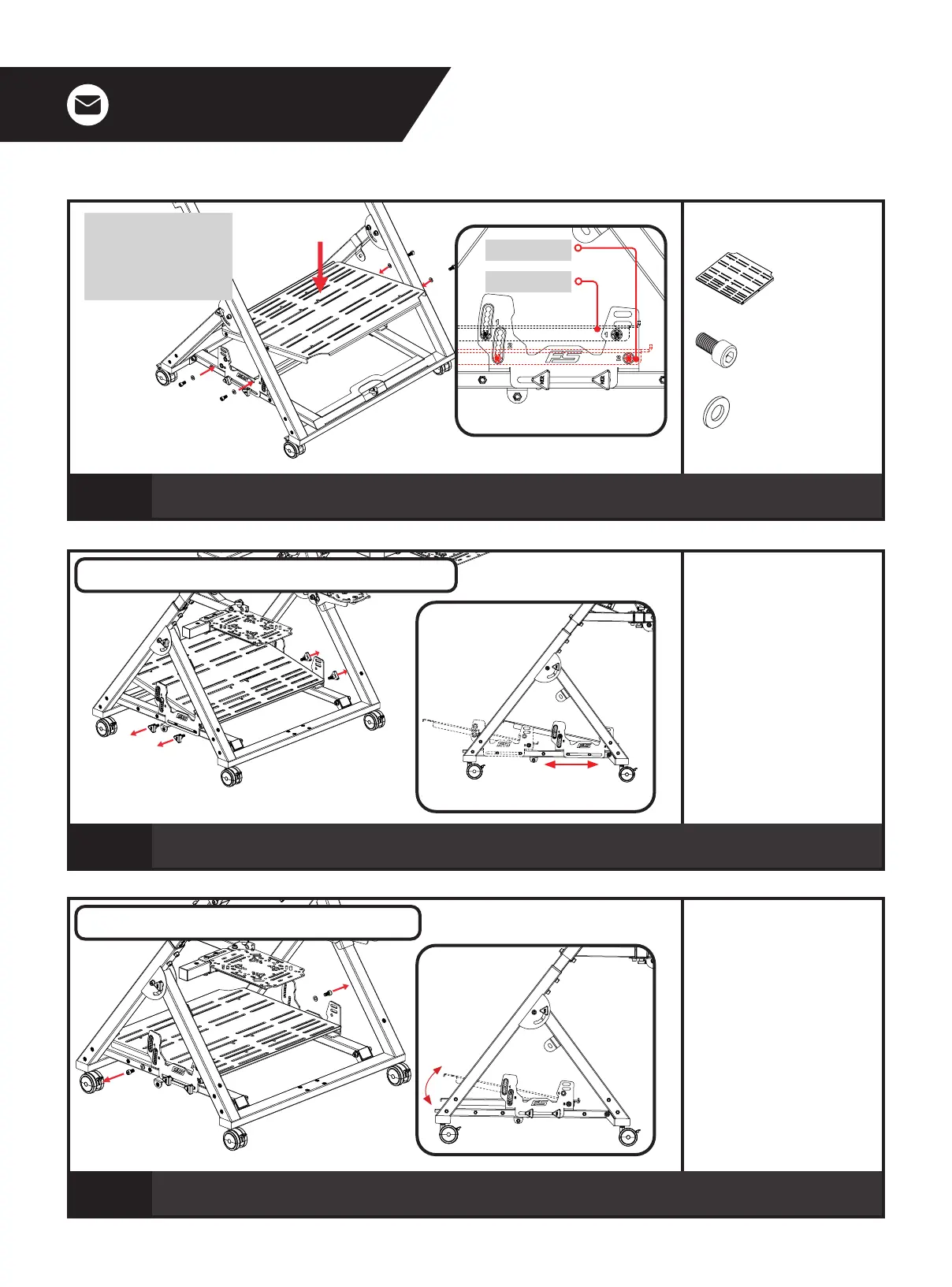

Next Level Racing FLIGHT STAND PRO - Pedal Plate Distance Adjustment; Pedal Plate Angle Adjustment

14
support@nextlevelracing.com
PARTS:
• • NIL
08
A) Uninstall the M8 Knobs securing the Pedal Brackets to the Pedal Frame.
B) Adjust to the desired position, re-install the M8 Knobs and tighten to secure.
PARTS:
• • 1 x Pedal Plate
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
07
Align the threaded inserts on the Pedal Plate with the mounting holes on the Pedal Brackets. Bolt
through and secure with 4 x M8 Bolts and Washers.
PARTS:
• • NIL
09
A) Uninstall the front Bolts securing the Pedal Plate to the Pedal Brackets.
B) Adjust to the desired angle, re-install the Bolts and tighten to secure.
A) B)
PEDAL PLATE DISTANCE ADJUSTMENT
PEDAL PLATE ANGLE ADJUSTMENT
A) B)
Note: The threaded inserts
on the Pedal Plate should
be mounted into the
corresponding holes on the
Pedal Brackets.
PEDAL BRACKET
Hole Set 1
Hole Set 2
