NexTraq VT-2200 - VT-2200 Wiring Diagrams; Equipment and Tools

6
VT-2200 Wiring Diagrams

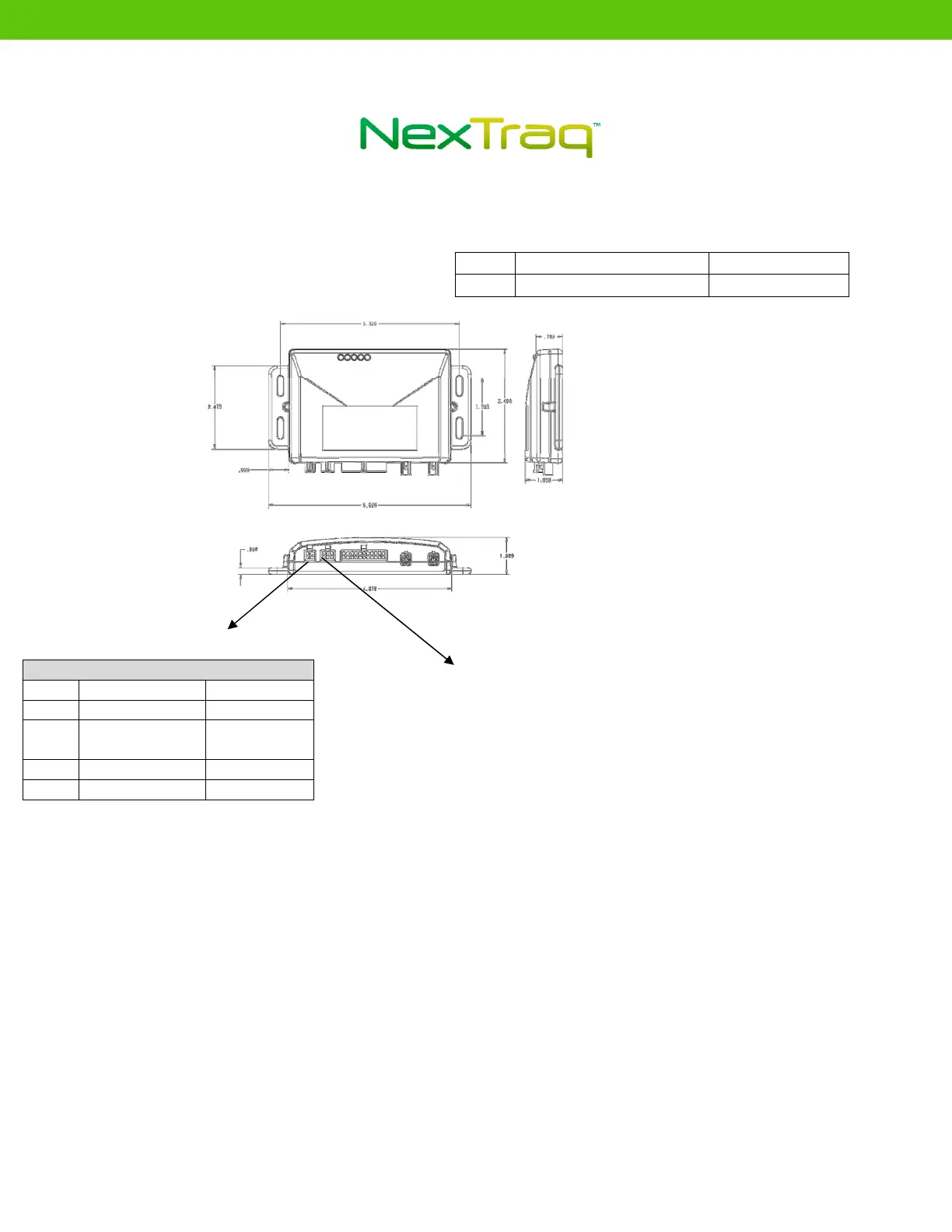

Fig – 2 -Schematic of VT-2200
Equipment and Tools
The following is a general list of tools and supplies required for a
VT-2200 installation:
Recommended Equipment Recommended Supplies
Digital Volt and Ohm Meter (DVOM) Electrical Tape
Screwdrivers (standard, Phillips, Torx, Hex) Double-sided
Tape
Wire Strippers/Wire Cutters Velcro
5
Output 2 Blue/White
6
No Connect No Connect
Pin Out Power
Pin
Signal
Color
1 Ground Black
2 No Connect No
Connect
3 Ignition White
4 Battery Red
