Among all installation variables, antenna location has the greatest
impact on the performance of the radio module. Great care should be
taken before installing the antennas. The standard antenna type used
for the VT-2200 is a combination antenna. Two FAKRA connectors provide
connection for GPS (blue) and GSM (violet).

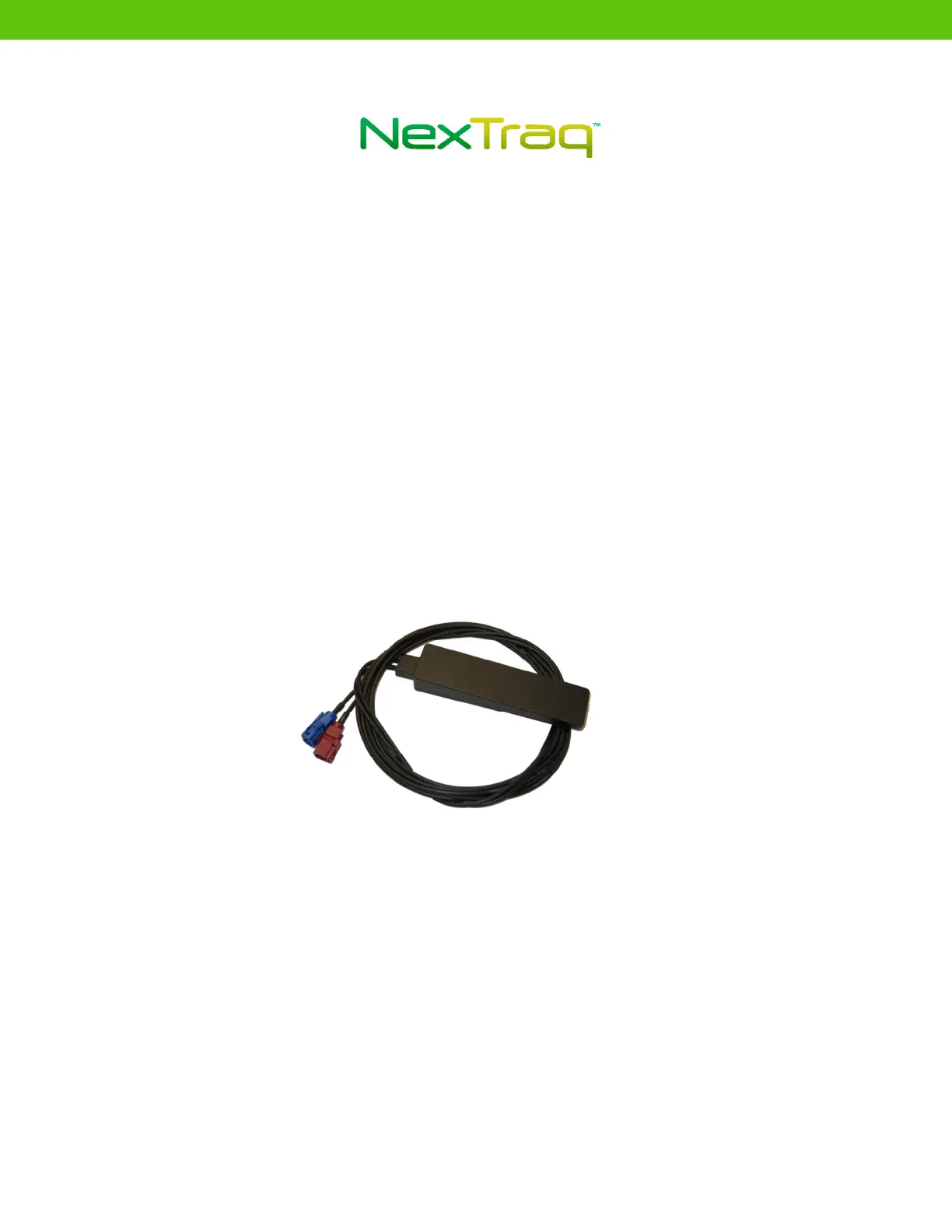

Fig. 3 – Combination Antenna
The combination antenna combines the cellular and GPS antennas into a
single antenna package. The combination antenna can be mounted on
glass, on the dashboard or as a covert installation.
Installation Types
Glass Mount
When mounting the antenna, it should be oriented with the top section
(the flat side) facing the sky. Please note that the antenna specifies
which side is the bottom. The glass mount provides the best reception
