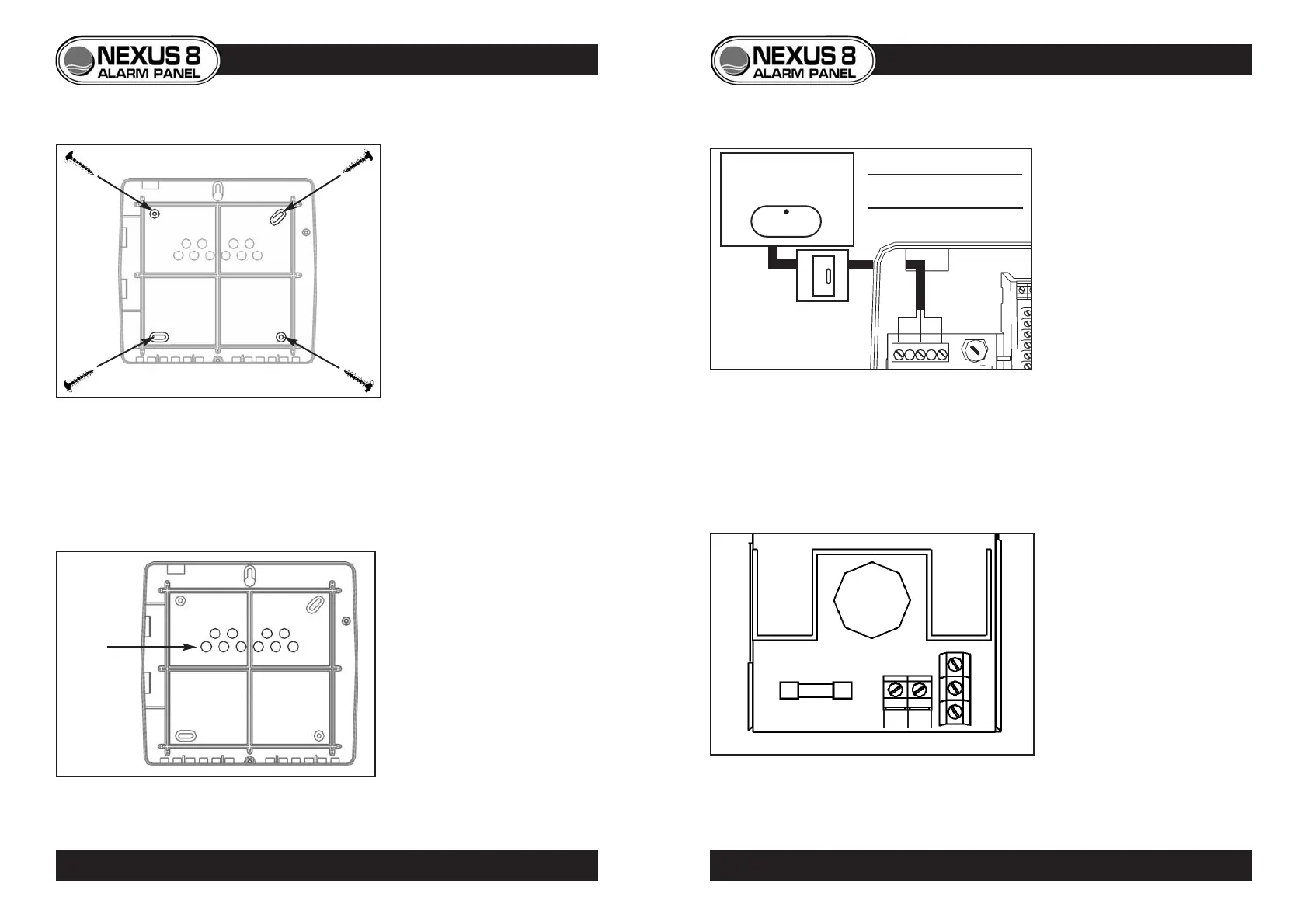

Nexus 8 - INSTALLATION

MAINS CONNECTION
• Mains supply is connected
to the panel via a three-way
green terminal block located
on the transformer below
the mains cable entry.
• The supply should come
directly from a consumer
unit through a 3amp fused
spur.
BATTERY CONNECTION
• A sealed lead acid
rechargeable battery must
be connected to the panel
via the two way terminal
block (B+/B-).
• This is situated next to the
battery fuse on the
transformer PCB.
7
Consumer
Unit
3Amp
Spur
BLUE NEUTRAL
GREEN/
YELLOW
BROWN LIVE
N E L
EARTH
PANEL
B+ B-
Battery Fuse
MAINS CONNECTION • BATTERY CONNECTION
MOUNTING THE PANEL
• Use the template on the
rear of the Nexus 8 box to
aid hole marking.
• Drill used should be a size
10 mason bit.
• Plug holes with rawl plugs.
• Use slotted fixing holes to
help level the panel before
fixing it in place with four
1.5”x8 wood screws.
CABLE ENTRY
• 10 individual cable entry’s
are sited beneath the gear
tray.
• Each is individually marked
for ease of cable
identification.
6
PANEL MOUNTING • CABLE ENTRY
Cable
Entry's
© Lynteck Ltd. 1998 LY68-030-68
