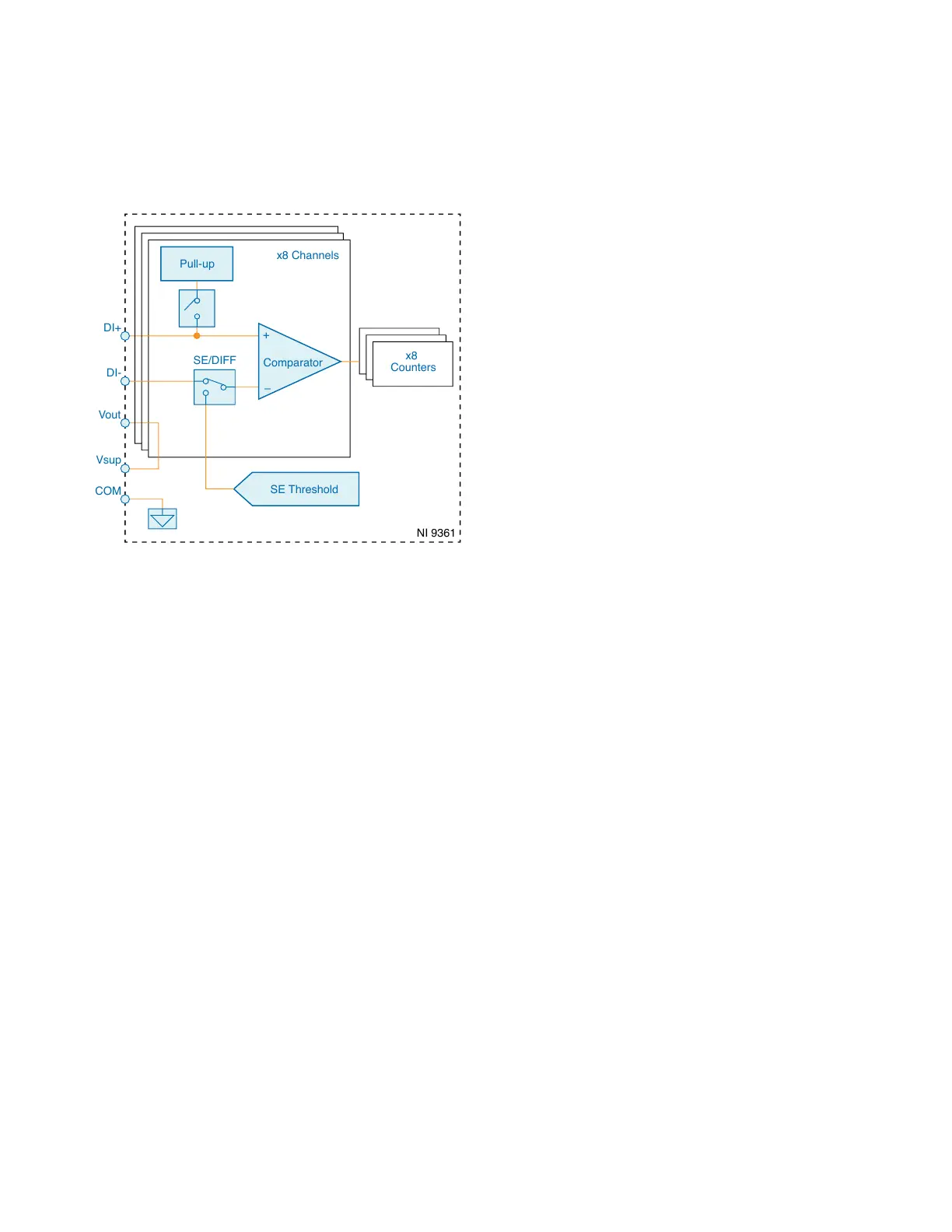

NI-9361 Block Diagram
NI 9361
x8
Counters
COM
SE Threshold
Pull-up
x8 Channels
SE/DIFF
Vsup
Vout
DI+
DI-
+
–
Comparator
The NI-9361 is a channel-to-earth isolated counter input module that provides 8
flexible digital input channels that route to 8 embedded counters. The inputs are
designed for connection to encoders, hall-eect sensors, as well as many other
types of sensors with digital outputs.
You can configure the front end of each channel individually to operate in
dierential or single-ended mode.
In single-ended mode, you can configure a programmable voltage threshold level
and enable or disable an internal pull-up resistor.
© National Instruments
33
NI-9361 Getting Started
