NI C Series Getting Started

Connecting Incremental Encoders
Incremental Encoders
Incremental encoders typically have channel A and channel B. By monitoring both
the number of pulses and the relative phase of channels A and B, you can track both
the position and direction of rotation. Some encoders have a third channel, channel
Z, which is also referred to as the index channel. A high level on channel Z causes
the counter to be reloaded with a specific value in a specific phase of a cycle.
Connecting Single-Ended Incremental Encoders
You can connect single-ended incremental encoders to the NI-9361.

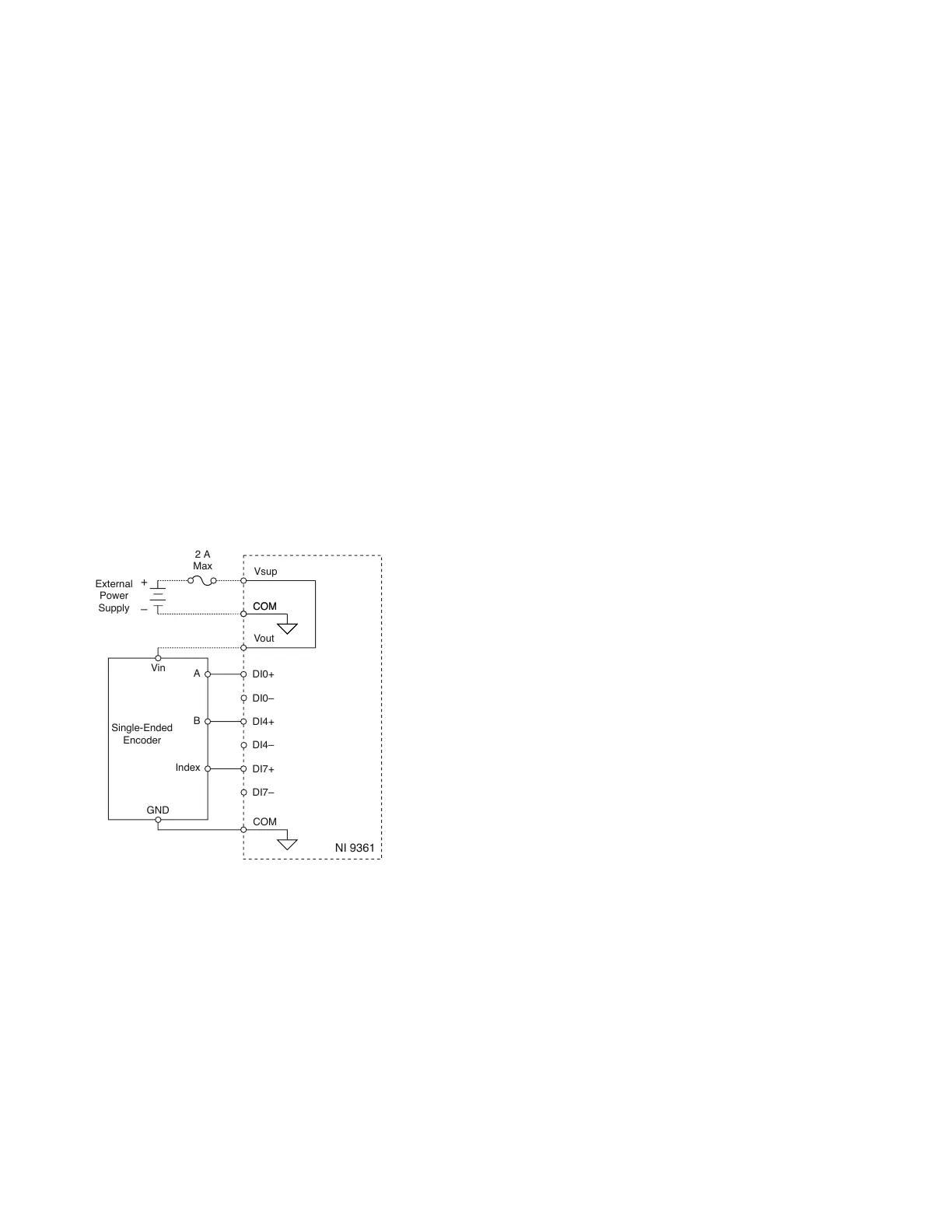

Figure 5. Connecting a Single-Ended Incremental Encoder
2 A
Max
Vsup
COM
Vout
Vin
GND
Single-Ended
Encoder
External
Power
Supply
NI 9361
A
B
Index
DI0+
DI0–
DI4+
DI4–
DI7+
DI7–
+
–
COM
COM
Connecting Di󽗿erential Incremental Encoders
You can connect dierential incremental encoders to the NI-9361.
© National Instruments
9
NI-9361 Getting Started
