Connecting an External Power Supply
You can optionally connect an external power supply to the NI-9361 to provide
current for the devices that you connect to the module. Install a 2 A maximum, fast-
acting fuse between the external power supply and the Vsup terminal.
Note Refer to the NI-9361 Specifications for more information about the
Vsup pins.
Caution Do not remove or install modules if the connected external
power supply is powered on.

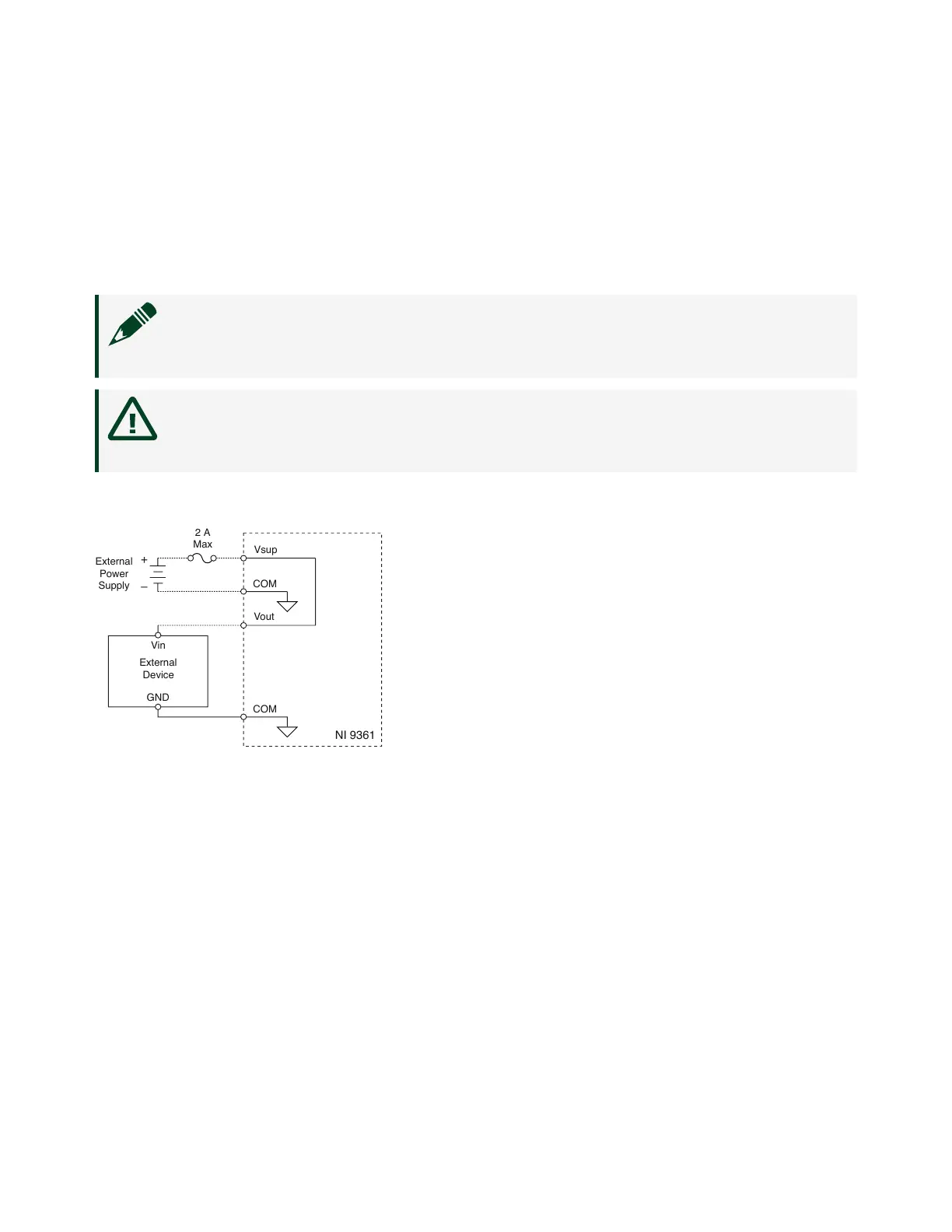

Figure 1. Connecting an External Power Supply
Vsup
COM
Vout
2 A
Max
Vin
GND
External
Power
Supply
NI 9361
+
–
COM
External
Device
