NI 9795 User Guide and Specifications 20 ni.com
understanding of the expected meshing configuration.
Additionally, the following consideration needs to be taken into
account: parent devices (routers and gateways) can only have a
maximum of eight end nodes connected to them at a given time.
This introduces the stranded node problem. The stranded node
problem exists when a node configured as an end node has the
possibility of not being able to join a device node. Figure 9 shows a
network consisting of one gateway, two routers, and nine end nodes.

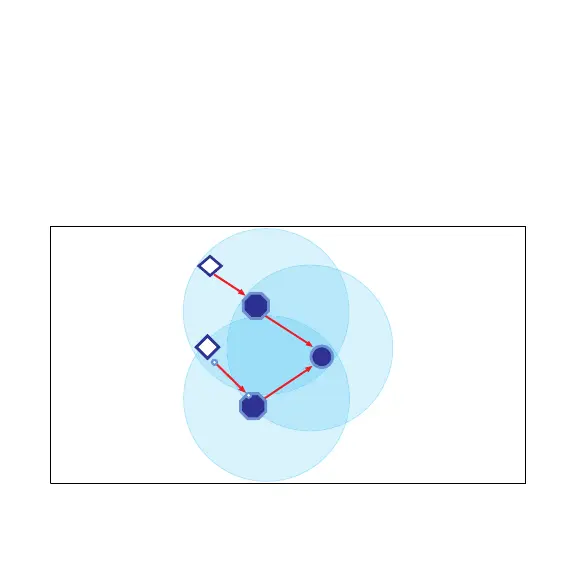

Figure 9. Stranded Node Problem, Example 1
G
R
2
R
1
N
N
x 1
x 8
