In this case, all nodes have properly meshed, and all nodes can
communicate with the gateway. However, this network could
potentially strand end nodes. Figure 10 shows another possible
mesh of the same network.

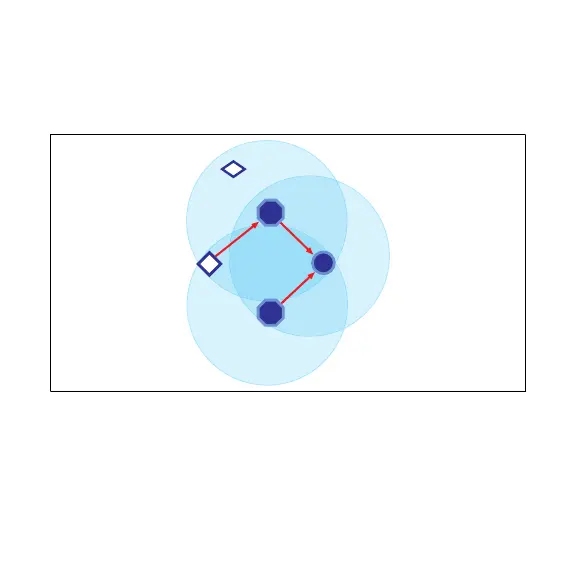

Figure 10. Stranded Node Problem, Example 2
G
R
2
R
1
N
N
x 1
x 8
