3x400V,
Stainless
steel
B
B
A
A
VVM225
PZ3
PZ1
EB1
BT63
QN10
W130
AA2
AA3
BT6
SF1
AA4-XF4
AA4-XF3
BP5
QM22
GP1
CM1
FQ10-BT30
FQ10-S2
FQ10
FC1
AA1
AA1-S2
QM13
QM20
QM35
QM11
XL4
XL3
BT3
XL8
XL9
RM1
FL1
XL1
FL2
BT2
XL2
BF1
QQ1
AA4
PF3
PF1
BT7
NIBE
VVM
225
Chapter
3
|
Indoor
module's
design
12
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
Important Information
4
Safety Information
4
Symbols
4
Marking
4
Serial Number
5
Recovery
5
Inspection of the Installation
6
Outdoor Modules
7
Delivery and Handling
8
Transport
8
Assembly
8
Supplied Components
9
Removing the Covers
10

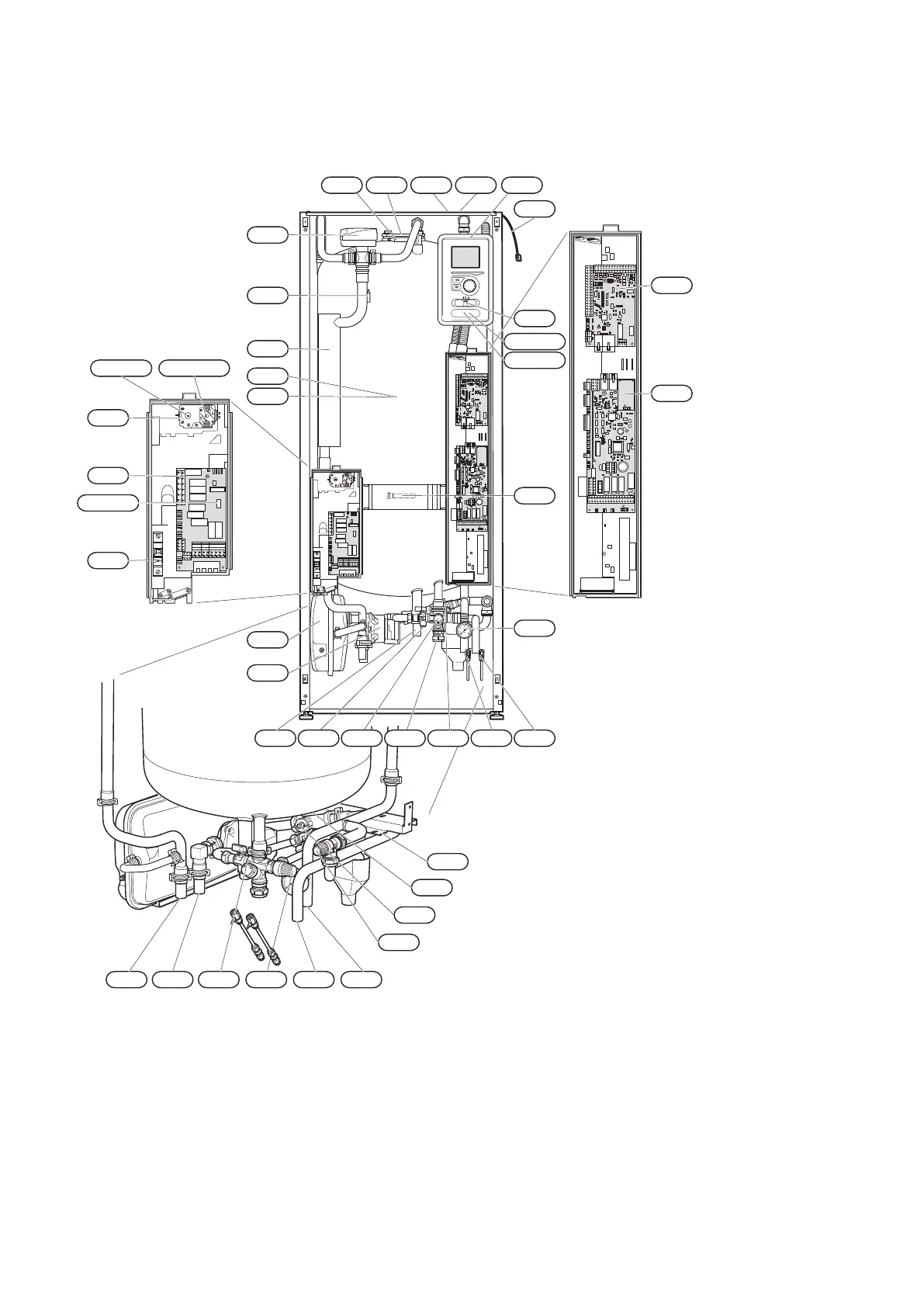

Indoor Module's Design
11
3X400V, Enamel
11
3X400V, Stainless Steel
12
3X230V, Stainless Steel
13
1X230V, Stainless Steel
14
Component Location, Rear
15
List of Components
15
Pipe Connections
16
General Pipe Connections
16
Dimensions and Pipe Connections
19
Installation Alternative
20
Electrical Connections
21
General
21
Connections
24
Settings
27
Optional Connections
29
Connecting Accessories
33
Commissioning and Adjusting Preparations
35
Filling and Venting
35
Start-Up and Inspection
36
Setting the Cooling/Heating Curve
38
Setting Hot Water Circulation
39
Pool
40
SG Ready
40
Control - Introduction
41
Display Unit
41
Menu System
42
Control - Menus
45
Menu 1 - INDOOR CLIMATE
45
Menu 2 - HOT WATER
46
Menu 3 - INFO
46
Menu 4 - MY SYSTEM
47
Menu 5 - SERVICE
48
Service
59
Service Actions
59
Disturbances in Comfort
63
Info-Menu
63
Manage Alarm
63
Troubleshooting
63
Electrical Addition Only
64
Accessories
65
Technical Data
67
Dimensions and Setting-Out Coordinates
67
Technical Specifications
68
Electrical Circuit Diagram
71
Item Register
87
Contact Information
91
