3 - English
EN
2

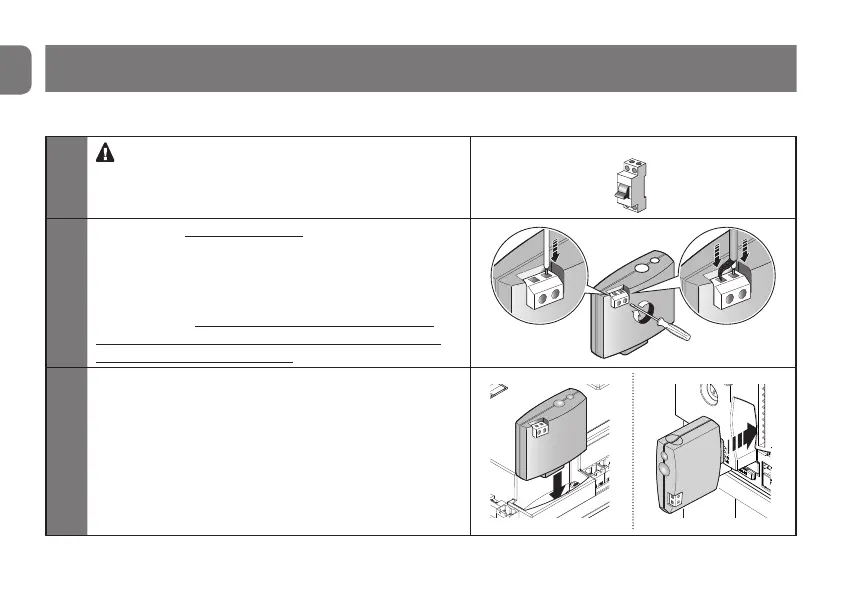

INSTALLATION AND CONNECTION
The receiver must be connected to the control unit by inserting it through the relevant slot:
01.
Before inserting (or removing) the receiver,
disconnect the power supply to the control unit.
02. Connect the antenna supplied to terminal 1 of the re-
ceiver, as shown in Fig. A. Alternatively, if the radio
signal reception must be improved through the instal-
lation of an external antenna with a coaxial cable with
50Ω impedance (type RG58), the coaxial cable must
be connected directly to terminals 1 and 2 of the
receiver (Fig. B), ignoring the “antenna” terminal (if
present) on the control panel.
1
2
Fig. A Fig. B
03. Insert the receiver through the relevant opening on
the control unit.
R
L1L2L3
Close
Open
Stop/Set
Flash
Photo Test
Stop
GND
SbS
24 V
Aerial
