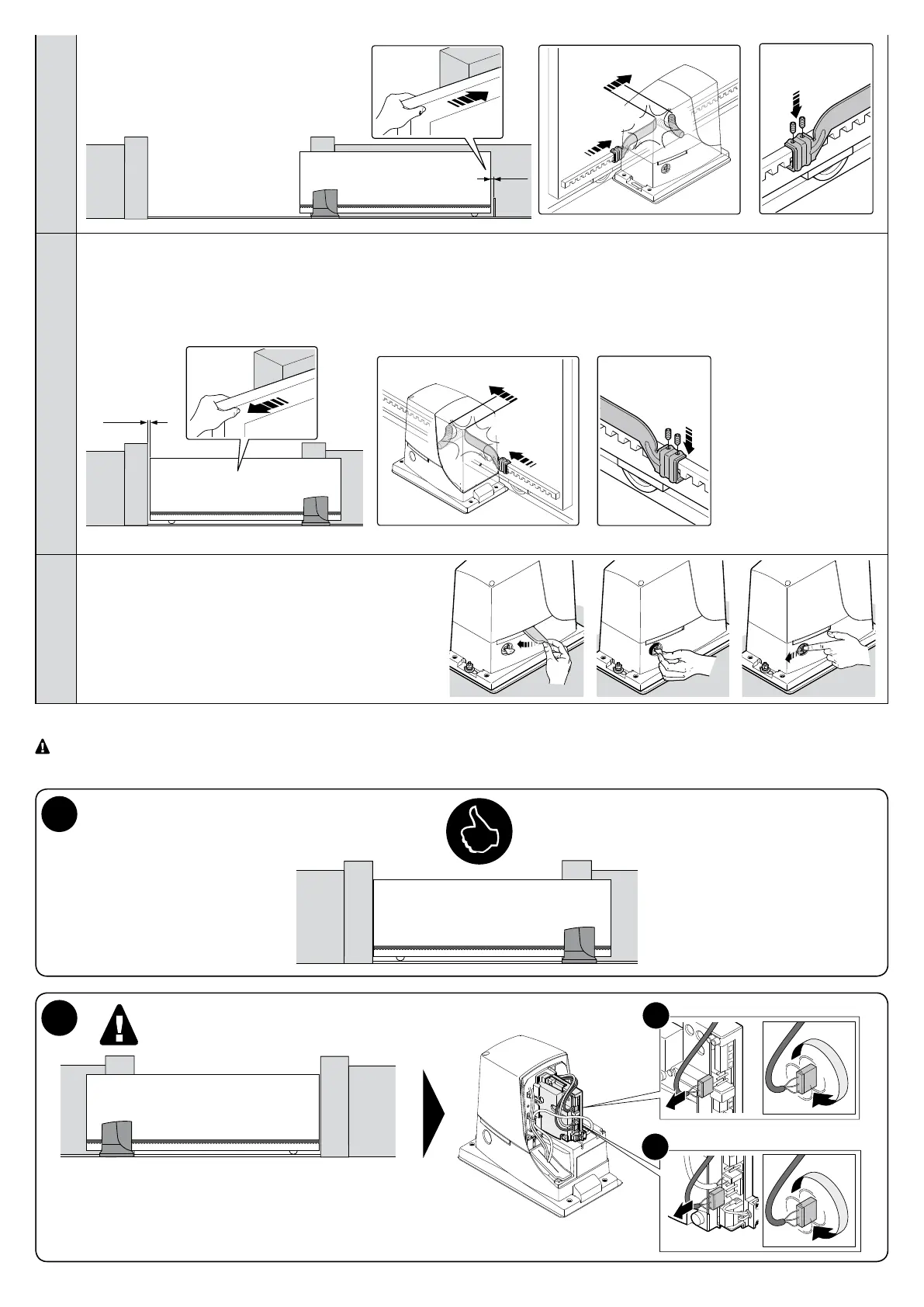

CLOSE:
a - slide the gate closed by hand, stopping it 2/3 cm before the mechanical stop
b - slide the limit switch bracket along the rack in the close direction until the limit switch trips (you will hear it click)
c - after you hear the ‘click’, move the bracket further forwards by 2 cm (minimum)
d - secure the bracket to the rack with the provided grub screws
2-3 cm
click!
09. Manually lock the gearmotor
Manually lock the gearmotor.
IMPORTANT! – The gearmotor is set up (at the factory) for installation on the right (g. 5); if it must be installed on the left, pro-
ceed as shown in g. 6 (a - b).
5
6
180°
a
180°
b
MOTOR
