English – 13
press and release the desired key on the radio
transmitter to be memorized
↕
release the RADIO key exactly when the led behaves
in the specied manner (on, ashing, off)
hold down the desired key on the radio transmitter
to be memorized
correct procedure
release the transmitter key INCORRECT procedure

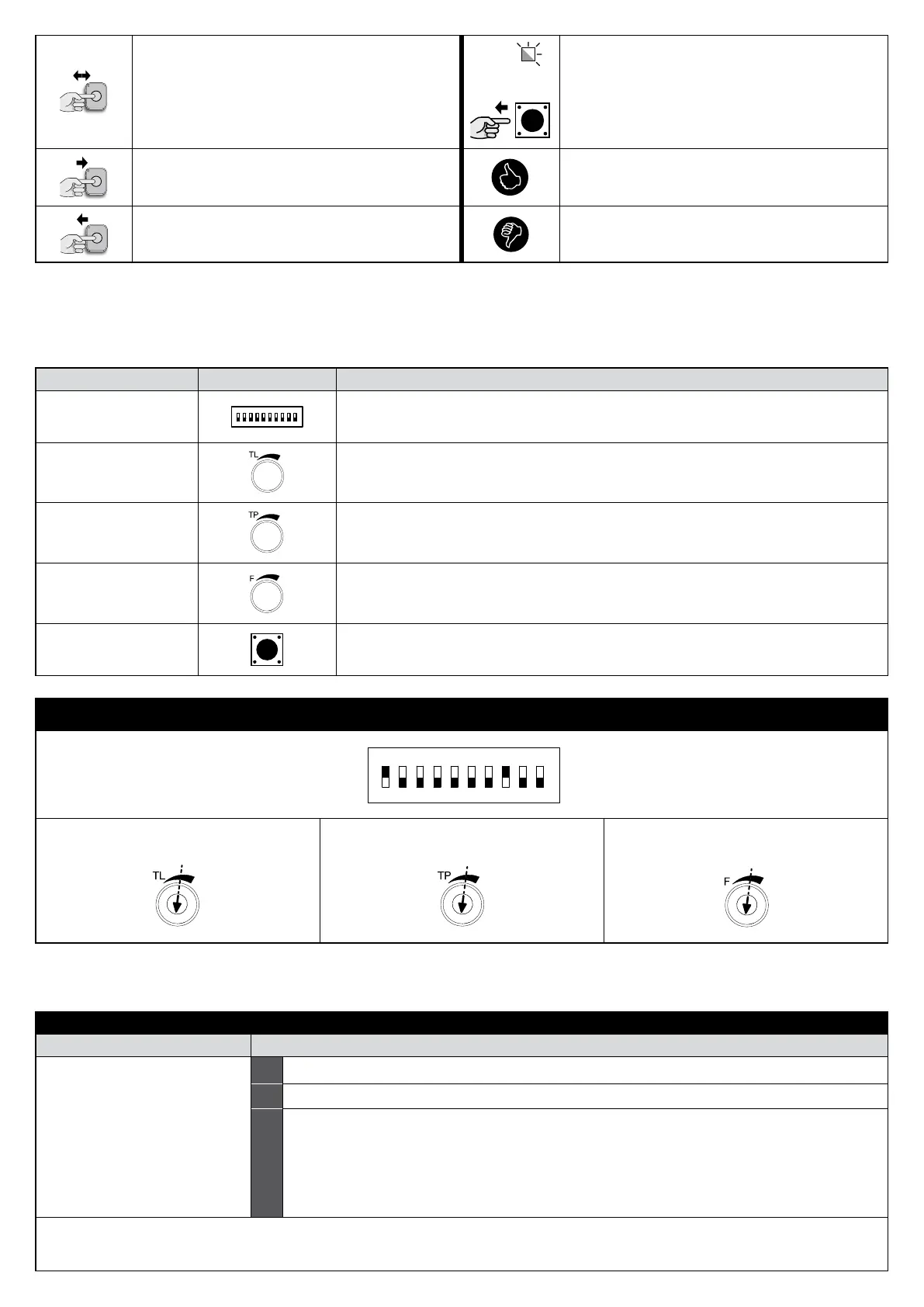

7.1 - Control unit: programming keys
The control unit has a variety of factory settings which can be reprogrammed: this chapter describes the available functions and how to program
them.
The control unit is equipped with microswitches and trimmers (g.7):
Name Symbol Description
PROGRAM SWITCH
Activates a function
Trimmer TL
Sets the Operating Time parameters (see paragraph 7.1.1)
Trimmer TP
Sets the Pause Time parameters’ (see paragraph 7.1.1)
Trimmer F
Sets the Force parameters (see paragraph 7.1.1)
RADIO key
Programs the radio receiver
Factory settings (default)
MICRO SWITCHES:
Semiautomatic (1 = ON)
1
ON
OFF
2 3 4 5 6 7 8 9 10
Trimmer TL (Operating Time) Trimmer TP (Pause Time) Trimmer F (Force)
7.1.1 - Trimmer (TL - TP - F)
The control unit’s parameters can be adjusted with three trimmers (g. 7)
TL (Operating Time)
Operating mode Adjustment
sets the maximum duration of an
Open or Close movement
01. select ‘
Semiautomatic’ or ‘Automatic’ and set micro switch 1 to ‘ON’
02. set trimmer TL to the mid position
03. run a full Open and Close cycle:
check that the maximum duration setting (Open / Close) is high enough and that a margin of 2 or 3
seconds remains.
Adjust trimmer TL to its maximum setting if necessary.
N.B.: if this time is not sufcient, cut the TLM jumper next to trimmer TL (g. 7) to obtain a ‘Long
Operating Time’ (TLM)
Slow down function: to use this function, activate the programmable function “slow down” and set trimmer TL so that the slow down phase
starts 50/70 cm before the gate trips the limit switch.
N.B.: the result of an adjustment to this parameter is visible during the rst Open movement run after the modication has been made.
