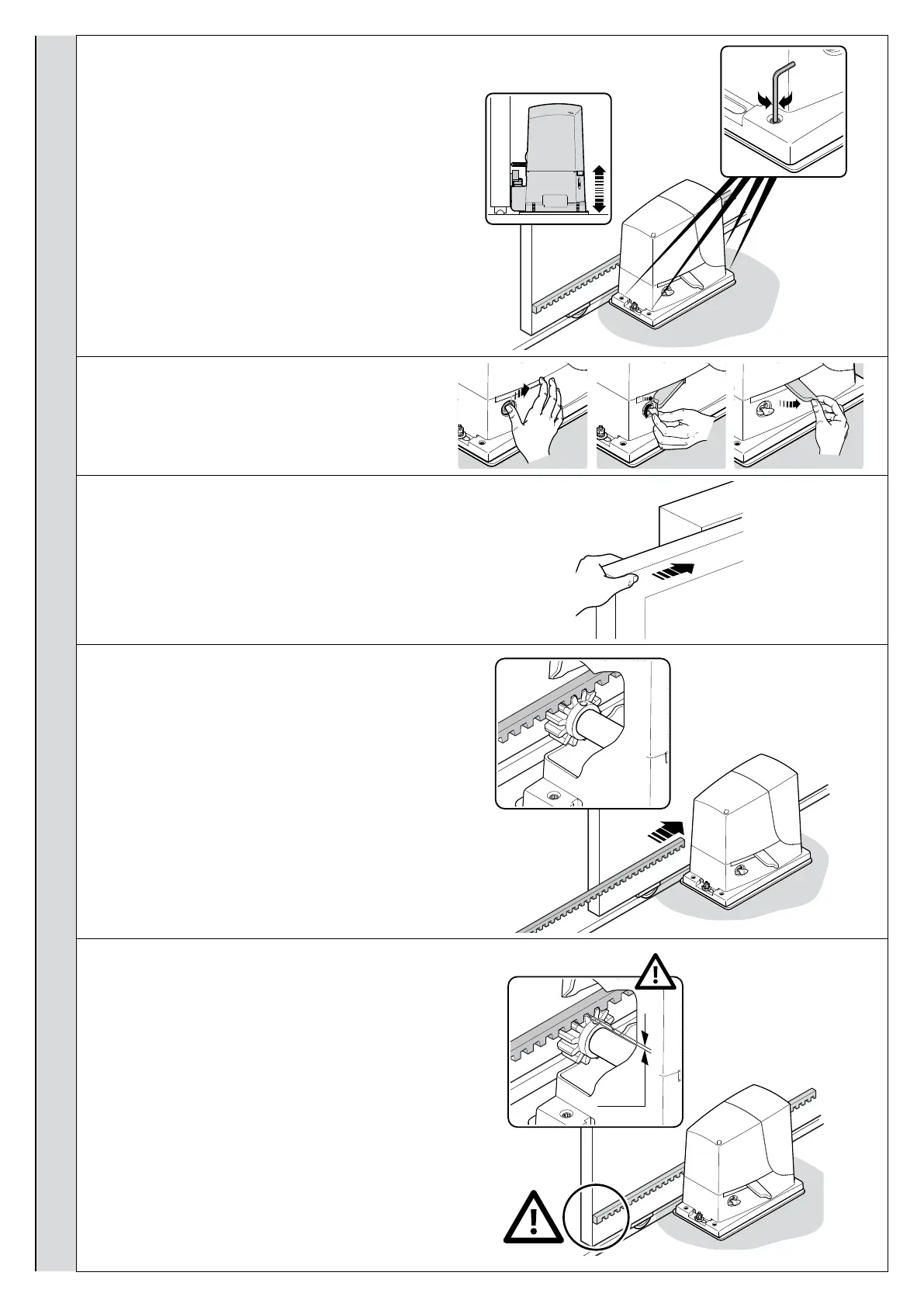

d - screw down the adjuster screws so that the gearmotor
is at the proper height, leaving a gap of 1-2 mm between
the pinion and the rack (this is to prevent the gate loading
the gearmotor shaft)
e / f / g - release the gearmotor
h - open the gate fully by hand
i - rest the rst section of rack on the gearmotor’s pinion:
make sure that it corresponds to the start of the gate sec-
tion and that there is a gap of 1-2 mm between the rack
and the pinion itself (this is to prevent the gate loading the
gearmotor shaft
l - secure the rack section
1÷2 mm
