3.4 Items supplied with the drive
The drive is supplied with a copy of the Unidrive M size 9 and 10 Inverter and Rectifier Installation Sheet, a safety information booklet, the Certificate
of Quality and an accessory kit box including the items shown in Table 3-8.

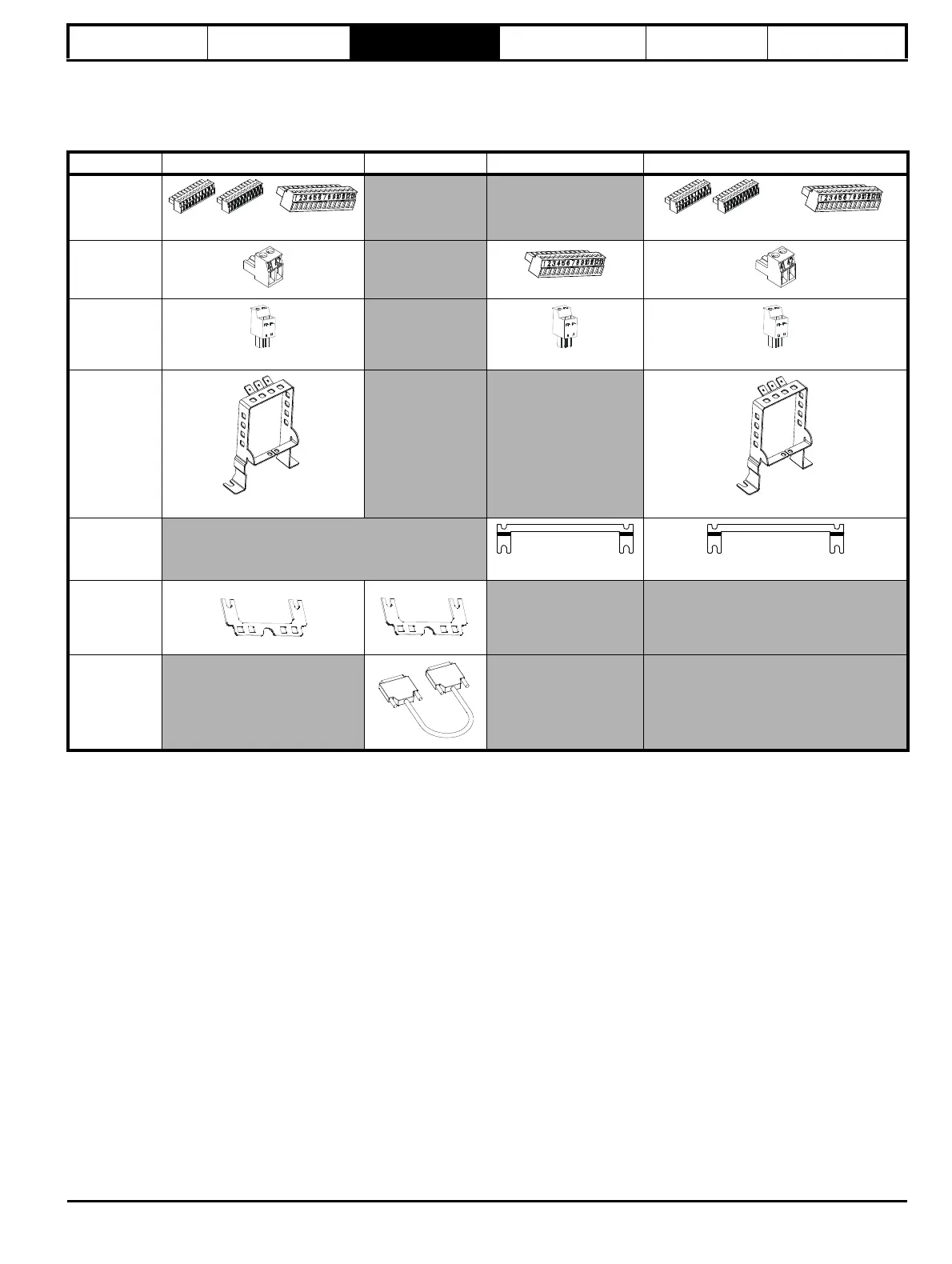

Table 3-8 Parts supplied with the size 9E/D/A and 10E/D
Description Master Pod Follower Pod Rectifier Inverter
Control
connections
x1 x1
x1
x1 x1
x1
Relay
connector
24 V power
supply
x2
x1 x1
Grounding
bracket
x1
Surface
mounting
bracket
x2 x2
Paralleling
cable
management
bracket
Paralleling
cable
