Unidrive M Modular Installation Guide 23
Issue Number: 2

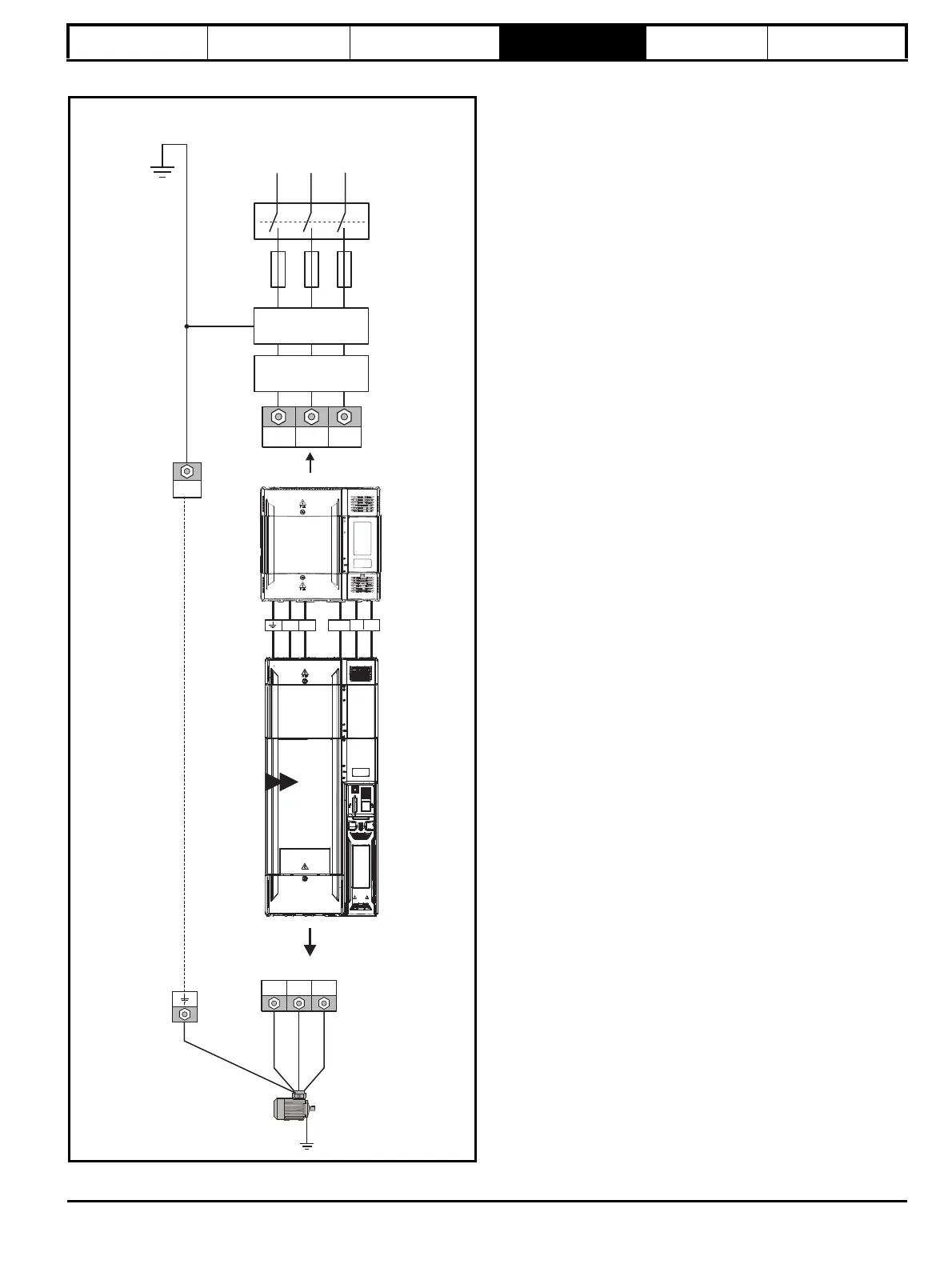

Figure 4-5 Layout for a Unidrive M size 9D and 10D module
operating on a 3-phase supply
PE
Input connections
Mains
Supply
L1 L2
Line reactor
Optional EMC filter
Fuses
L3
L1 L2 L3
Supply
ground
+DC
-DC
24 V
0V
Comms
UVW
Motor
Optional ground
connection
Output connections
9D 10D
