Safety information Introduction Product information System configuration
Mechanical
Installation
Electrical Installation
40 Unidrive M Modular Installation Guide
Issue Number: 2

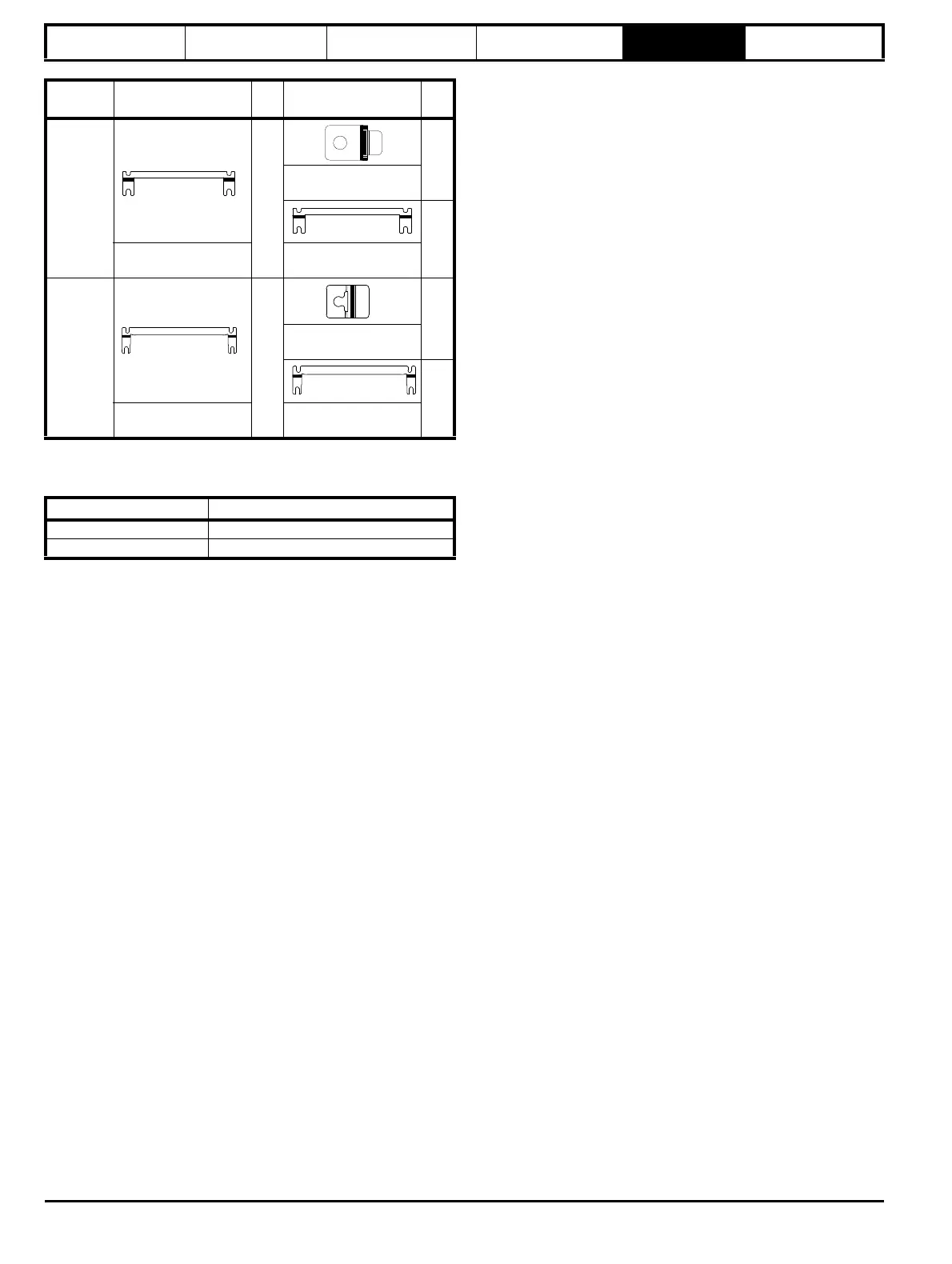

Figure 5-21 Through panel mounting brackets
Kits are supplied separately.
Table 5-2 Through panel mounting kits
Frame
size
Surface Qty Through-panel Qty
10
(Rectifier)
x 2
x 2
Hole size: 9 mm
(0.35 in)
x 2
Hole size: 9 mm
(0.35 in)
Hole size: 9 mm
(0.35 in)
9 and 10
(Inverter)
x 2
x 6
Hole size: 5.3 mm
(0.21 in)
x 2
Hole size: 9 mm
(0.35 in)
Hole size: 9 mm
(0.35 in)
Part number Description
3470-0108 Inverter high IP insert
3470-0106 Rectifier high IP kit
