5.3 Close measuring mode
Hold the peak value of torque for closing direction at measuring table.
Measuring cycle, 8 times/second
Display cycle, 8 times/second
Reset the peak hold by pressing Zero/RST key.
6
Comparator function (TNP only)
Compare upper/lower limit setting value at Function mode with measuring value or peak hold value or
registered memory data. Result turns on the relevant LED.
When upper and lower limit value are 0, judgement output does not occur any upper or lower judgement.
Absolute value is used to compare at judgement of upper / lower limit value.
Judge upper/lower limit in real time at Average measuring mode.
Peak hold value is judged at Open/Close measuring mode. During displaying the memory data, the memory
data is judged.
Upper/lower limit value will be set in measuring range.
Upper/lower limit value should be set as Upper limit >= Lower limit.
If the upper/lower limit can NOT be set, numeric is blinking. Please press Mode key and set the upper/lower
limit again.

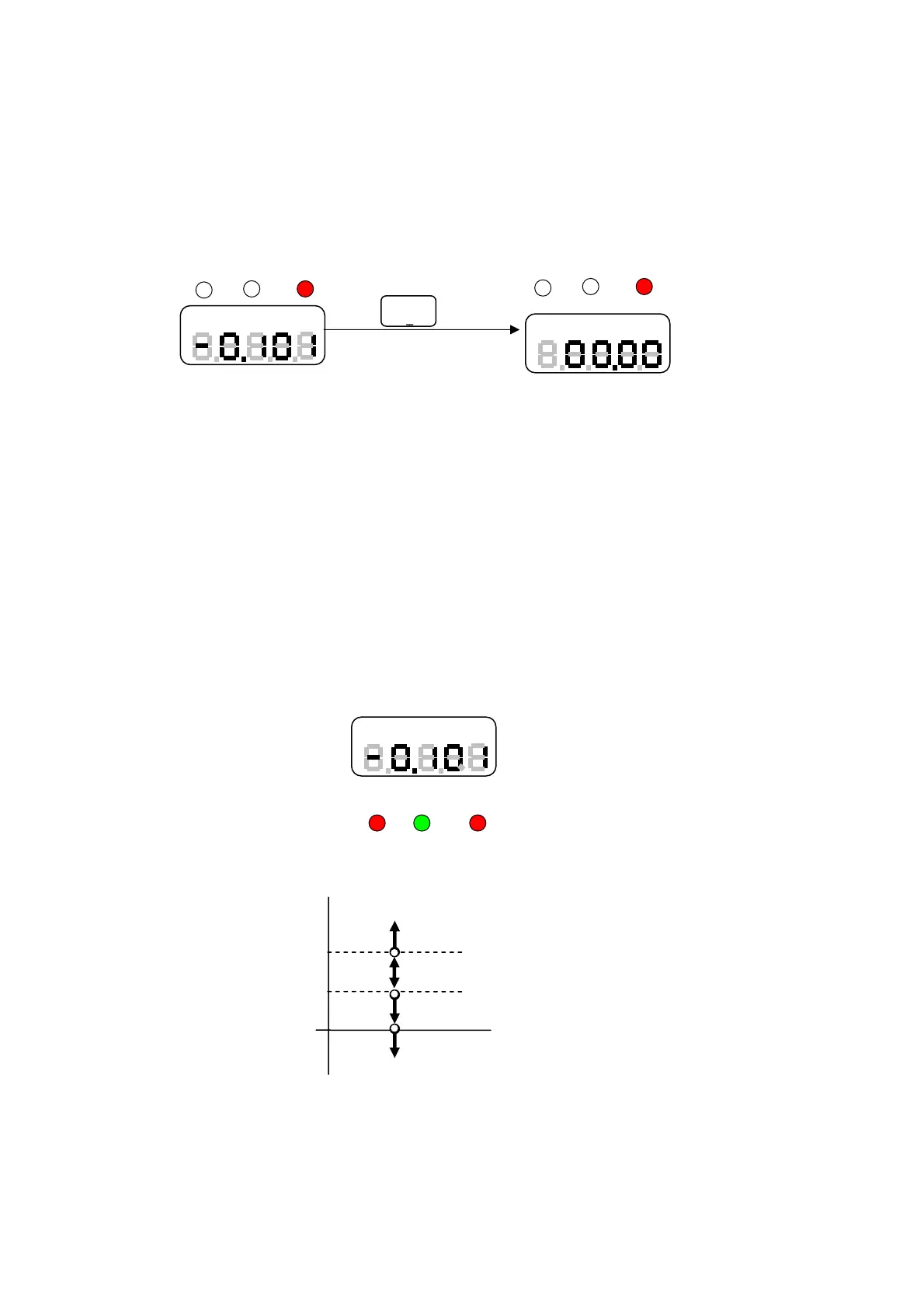

ŶJudgement process (Upper limit value: 100, Lower limit value: 50)
ƔIn case of open torque measuring
Measuring data is from 0 - 49, “Lo” indicator is on
Measuring data is from 50 - 100, “Go” indicator is on
Measuring data is from 101 – , “Hi” indicator is on
㻌
Open
Mean Close
Peak hold reset
㻌
Open
Mean Close
Zero/RS
ᵬᶋᴾ
ᵬᶋᴾ
T
Lo
GoHi
㻌
ᵬᶋᴾ
Close
100
Upper limit setting value
50
Lower limit setting value
No jugement
HI:ON
LO:ON
GO:ON
Open
0
㻢㻌
