Nidec Unidrive M400 series Step-By-Step Guide

Unidrive M400 Step By Step Guide 3
Issue Number: 2
English
Français Deutsch Italiano Español

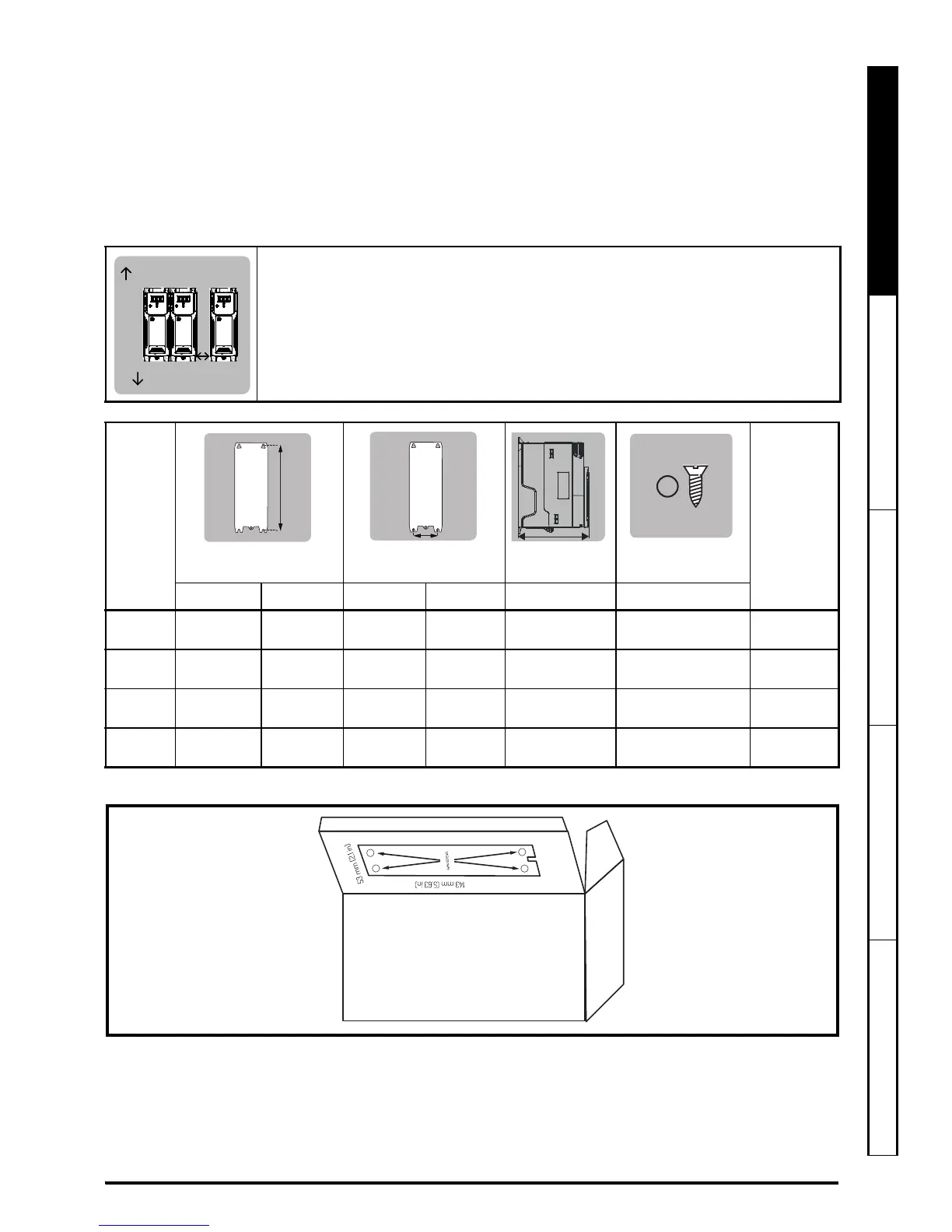

STEP 3: Mount the drive
Ambient temperature operating range:
- 20 °C to 60 °C (- 4 °F to 140 °F).
Output current derating may be required at ambient temperatures > 40 °C (104 °F). Refer to the Power Installation
Guide (section 5.1). For UL installations, the maximum ambient temperature permitted is 50 °C (122 °F) with any
specified derating applied.
Drives can be panel mounted with 0mm space between them. A minimum clearance of 100 mm (3.94 in)
is required above and below the drive. Refer to section 3.4 in the Power Installation Guide for information on
derating for reduced clearances.
A Drill template for wall mounting is included on the drive packaging (shown below).
STEP 4: Fit cable ground bracket
The cable bracket helps you to organise the cables once they have been connected to the drive.The bracket is
used to clamp the shield of the cables to facilitate EMC compliance (refer to Figure 7-1).
Frame
Weight
HW
D
Ø
Mounting Overall Mounting Overall Overall Diameter
1
143 mm
(5.7 in)
160 mm
(6.3 in)
53 mm
(2.08 in)
75 mm
(2.95 in)
130 mm
(5.1 in)
5mm
(0.2 in)
0.75 kg
(1.65 Ib)
2
194 mm
(7.63 in)
205 mm
(8.07 in)
55 mm
(2.17 in)
75 mm
(2.95 in)
150 mm
(5.9 in)
5mm
(0.2 in)
1.3 kg
(3.0 Ib)
3
215 mm
(8.46 in)
226 mm
(8.9 in)
70.7 mm
(2.80 in)
90 mm
(3.54 in)
160 mm
(6.3 in)
5mm
(0.2 in)
1.5 kg
(3.3 Ib)
4
265 mm
(10.43 in)
277 mm
(10.9 in)
86 mm
(3.40 in)
115 mm
(4.5 in)
175 mm
(6.9 in)
6mm
(0.23 in)
3.13 kg
(6.9 Ib)
100 mm (3.94 in)
100 mm
(3.94 in)
0 mm
The Drive can be screwed onto a backplate or mounted on a DIN rail (size 1 and 2 only).
If you choose to mount it on a rail use 2 screws to secure the drive to the back plate.
+
+
+
+
