Nikon 1 S1 User Manual

15
s
Take a few moments to familiarize yourself with camera controls
and displays. You may find it helpful to bookmark this section
and refer to it as you read through the rest of the manual.
The Camera Body

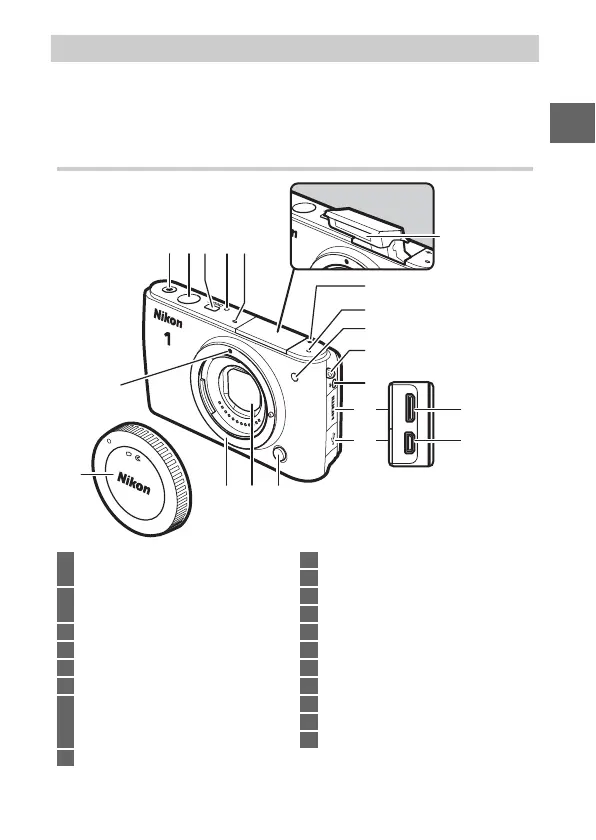

Parts of the Camera
31 2 54
7
8
9
6
5
15
16
17
14 1213
18
19
10
11
1 Movie-record button
.................................... 35, 45, 56, 58, 62
2 Shutter-release
button ....................... 29, 47, 49, 53, 60
3 Power switch........................................25
4 Power lamp ..........................................25
5 Microphone
6 Focal plane mark (E)
7 AF-assist illuminator
Self-timer lamp ...................................68
Red-eye reduction lamp ...................72
8 Eyelet for camera strap......................23
9 Flash pop-up button.......................... 70
10 HDMI connector cover
11 USB connector cover .........................80
12 Lens release button
13 Dust shield .................................... 85, 86
14 Lens mount
15 Mounting mark ................................... 25
16 Body cap ............................................... 83
17 Built-in flash......................................... 70
18 HDMI mini-pin connector
19 USB connector.....................................80

Nikon 1 S1 Specifications

General

Camera type	Mirrorless
Sensor	CMOS
Effective Pixels	10.1 million
Lens Mount	Nikon 1 mount
Autofocus	Hybrid AF (Phase-detection/Contrast-detect AF)
LCD Screen Size	3.0 inches
LCD Screen Resolution	460, 000 dots
Storage Media	SD/SDHC/SDXC
Battery Life	Approx. 220 shots
Dimensions	102 x 60.5 x 29.7 mm
Sensor Size	13.2 mm x 8.8 mm
ISO Sensitivity	ISO 100-6400
Shutter Speed	1/16000 - 30 sec
Video Recording	Full HD 1080p
Battery	EN-EL20
Weight	240 g (including battery and memory card)
