Nikon CoolPix S8100 User Manual

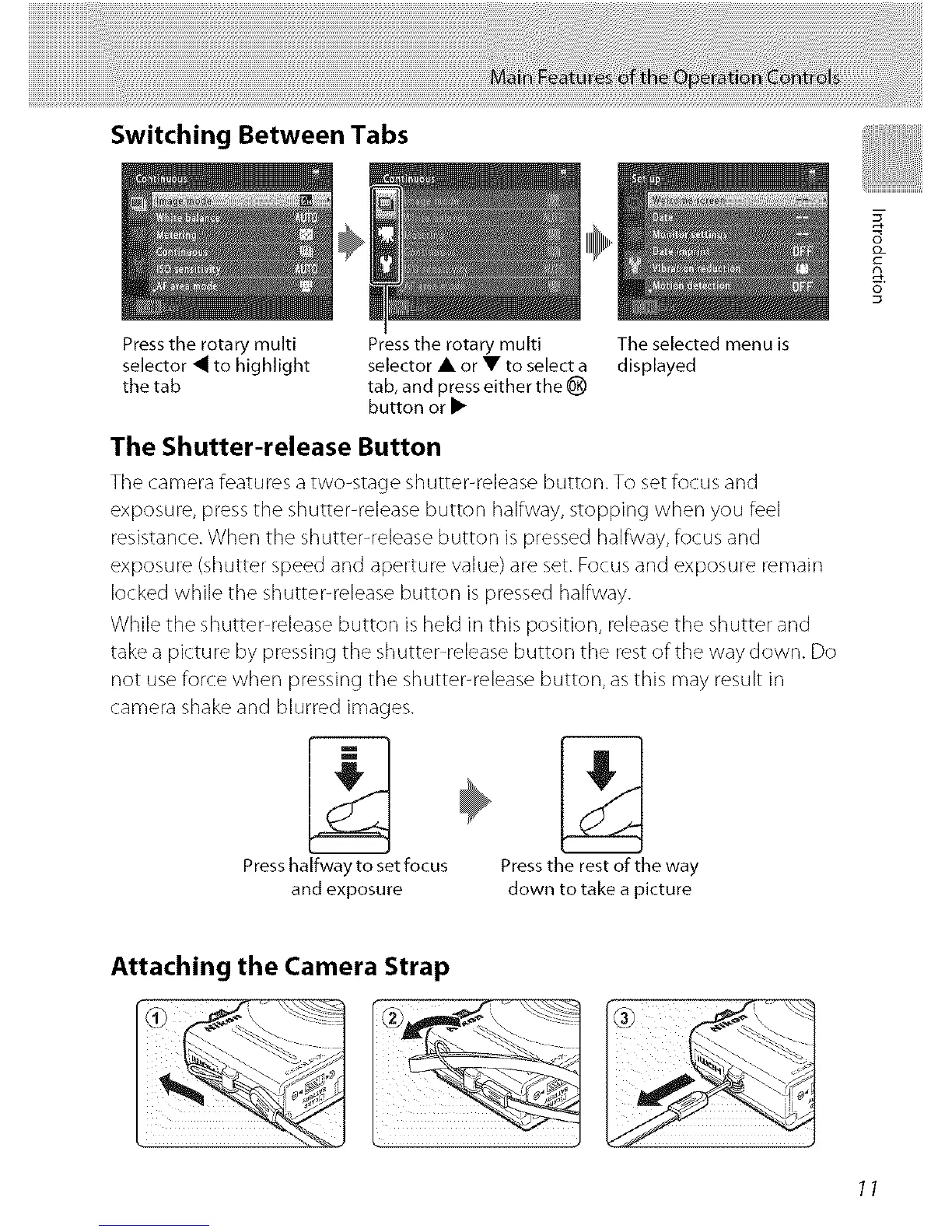

Switching Between Tabs
Press the rotary multi Press the rotary multi The selected menu is
selector _1 to highlight selector • or • to select a displayed
the tab tab, and press either the _)
button or •
The Shutter-release Button
Tile camera features a two-stage shutter-release button. To set focus and
exposure, press tile shutter-release button halfway, stopping when you feel
resistance. When tile shutter-release button is pressed halfway, focus and
exposure (shutter speed and aperture value) are set. Focus and exposure remain
locked while tile shutter-release button is pressed halfway.
While the shutter-release button is held in this position, release tile shutter and
take a picture by pressing the shutter-release button the rest of the way down. Do
not use force when pressing the shutter-release button, as this may result in
camera shake and blurred images.
Y
Press halfway to set focus
and exposure
Press the rest of the way
clown to take a picture
#
Attaching the Camera Strap
'-.4is
11

Nikon CoolPix S8100 Specifications

General

Megapixel	12.1 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	Yes
Total megapixels	12.75 MP
Image sensor size	1/2.3 \
Image formats supported	JPG
Supported aspect ratios	16:9
Maximum image resolution	4000 x 3000 pixels
Still image resolution(s)	640 x 480, 1024 x 768, 2048 x 1536, 2592 x 1944, 3968 x 2232, 4000 x 3000
Digital zoom	4 x
Optical zoom	10 x
Combined zoom	40 x
Focal length range	5.4 - 54 mm
Maximum aperture number	5.6
Minimum aperture number	3.5
Lens structure (elements/groups)	10/8
Maximum focal length (35mm film equiv)	300 mm
Minimum focal length (35mm film equiv)	30 mm
Focus	TTL
Focus adjustment	Auto
Normal focusing range	0.5 - ∞ m
Auto focusing (AF) modes	Centre weighted Auto Focus
Closest focusing distance	0.01 m
Normal focusing range (tele)	1 - ∞ m
Light metering	Centre-weighted, Spot
ISO sensitivity	160, 200, 400, 800, 1600, 3200, Auto
Light exposure modes	Auto, Manual
ISO sensitivity (max)	3200
ISO sensitivity (min)	160
Light exposure control	Program AE
Light exposure correction	± 2EV (1/3EV step)
Camera shutter type	Electronic, Mechanical
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	4 s
Flash range (tele)	0.5 - 2.5 m
Flash range (wide)	0.5 - 4 m
Power source type	Battery
Camera shutter speed	1/4000 - 1/120 s
Photo effects	Black&White
White balance	-
Self-timer delay	2, 10 s
Camera file system	DCF 2.0, DPOF 1.1, Exif 2.3
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR
Video resolutions	320 x 240, 640 x 480, 1920 x 1080 pixels
Motion JPEG frame rate	30 fps
Video formats supported	H.264, MOV, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Audio formats supported	AAC, WAV
Internal memory	102 MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	3 \
Display resolution (numeric)	921000 pixels
USB version	2.0
Product color	Black
Battery type	EN-EL12
Battery life (max)	3.8 h
Battery life (CIPA standard)	210 shots
Operating temperature (T-T)	0 - 40 °C
Cables included	AV, USB

Weight and Dimensions

Depth	29.9 mm
Width	104 mm
Height	59.2 mm
Weight	209 g
