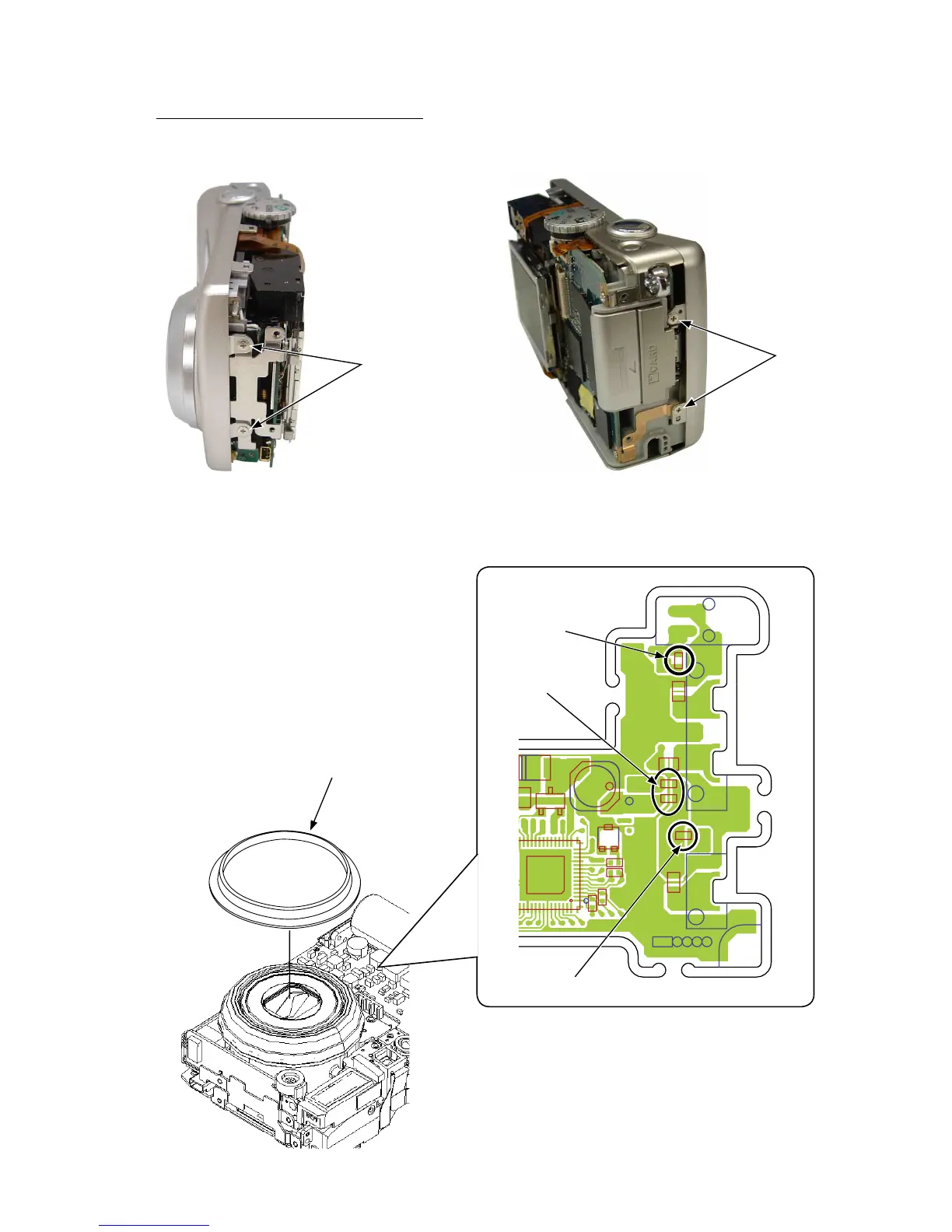

・ Remove the two screws (808).
4. Removal of front cover/fixed barrel curtain
・ Remove the two screws (811).
・ Remove the front cover.
・ The fixed barrel curtain (618) can be removed.
Screws (808)
Screws (811)
Fixed barrel curtain (618)
・ Under this condition, it is possible to replace fuses of F5001,
F5002, F5004 and F5005 with new ones.
