VAA46003-R.3659.A
- A7･ E7900 -

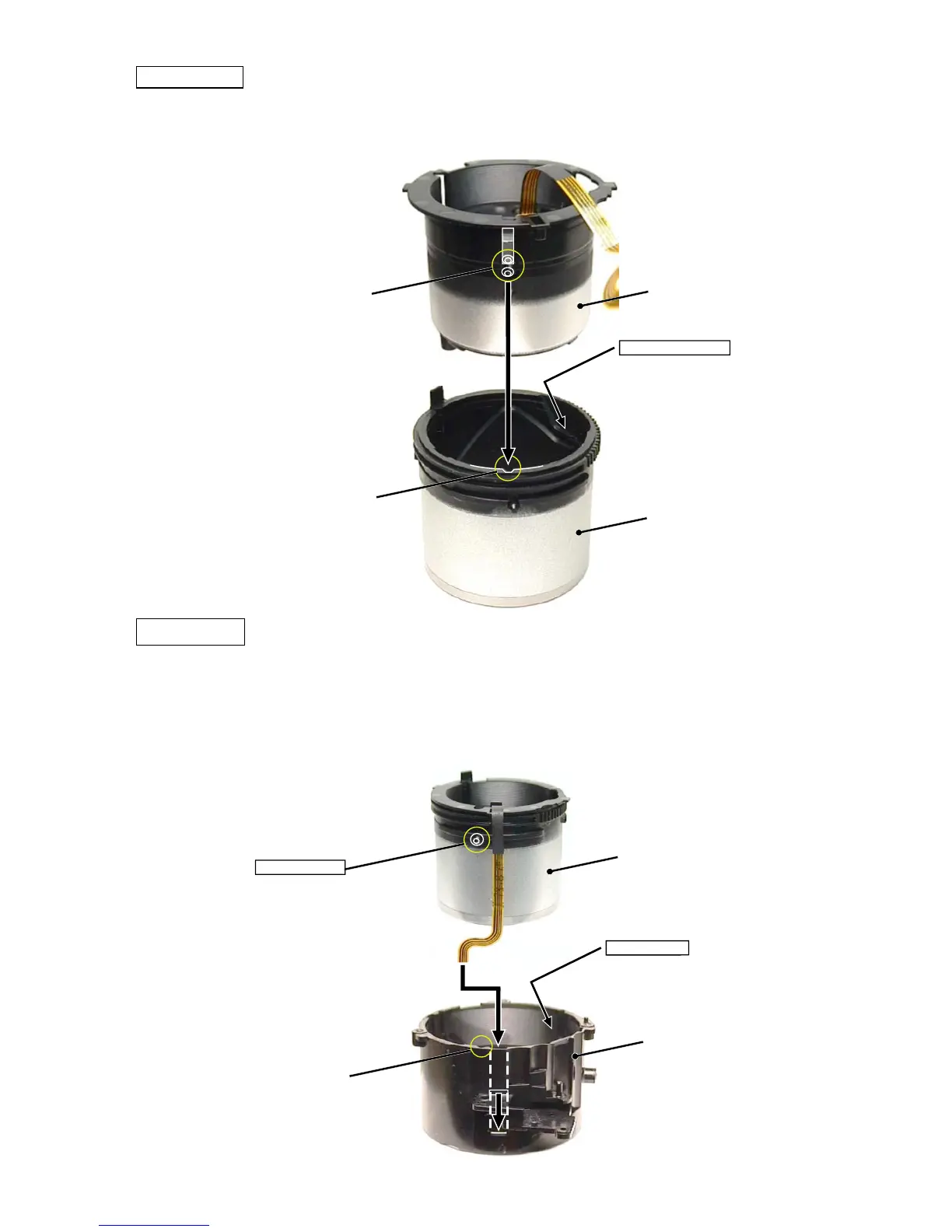

Cam barrel
・ Lubricate the groove, the contact surface and the sliding surface of the cam ring with the oil MZ-800S. Then, set the
cover ring unit.
① Lubricate the groove (3 places), the contact surface and the sliding surface of the fixed barrel #612 with the oil
MZ-800S.
② Pass the shutter FPC through the hole of the fixed barrel #612. Fit the convex section of the cam barrel #613 to the
cam groove of the fixed barrel #612 and set them to each other.
Fixed barrel
Cam barrel
Cover ring unit
Convex section
Cam groove
Oil: MZ-800S
To groove, contact surface and sliding surface of
cam ring
#612
To convex section
Cam groove
#613
Oil: MZ-800S
To groove, contact surface and sliding surface of the
fixed barrel
Oil: MZ-800S
To Next Page
