- A8･ E7900 -

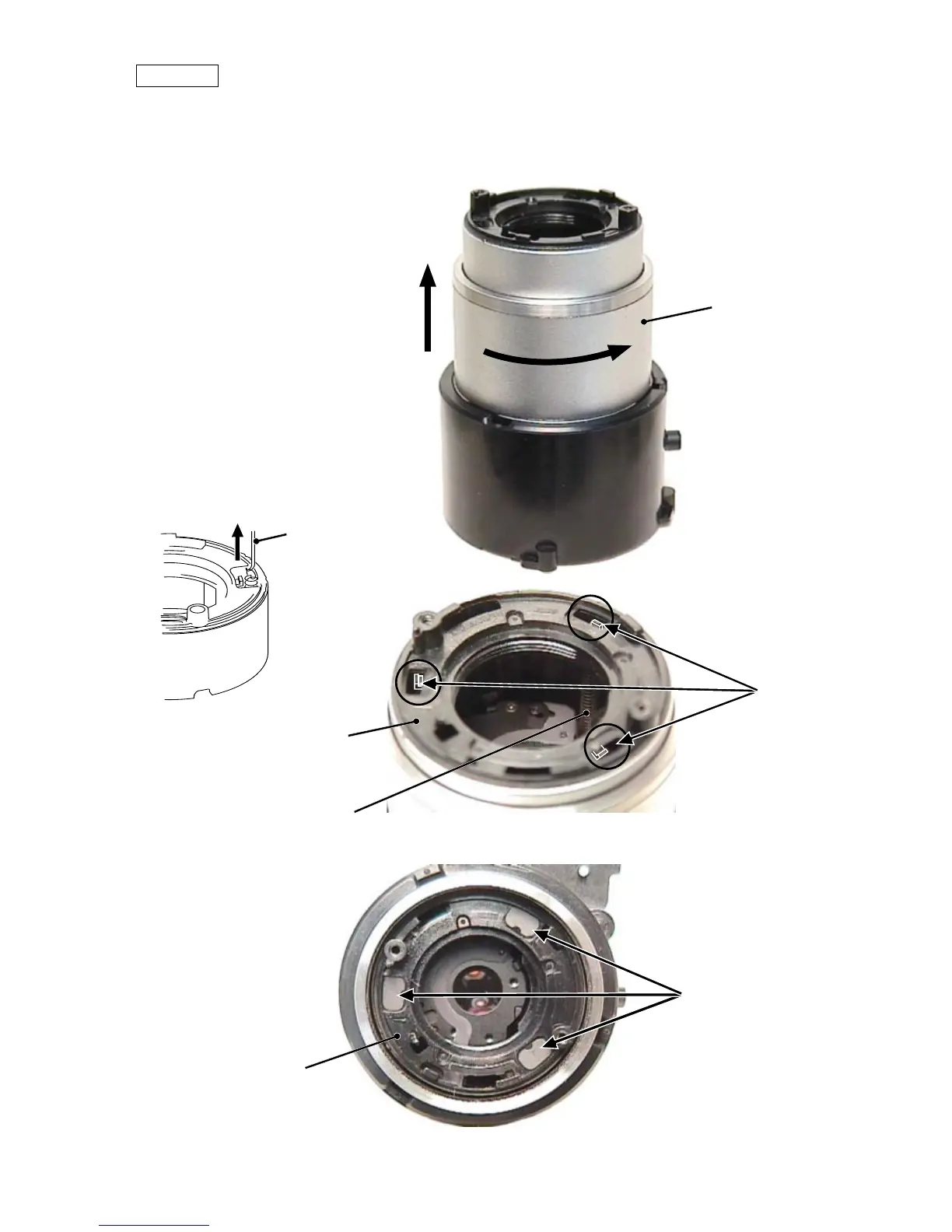

③ Adhere and push the three 1st lens group spring sheets #619 onto the 1st lens group barrel #615.
① Turn the cam barrel #613 of the lens barrel unit to the Tele position.
② Hitch the hook of the spring #605 to the hole of the 1st lens group barrel #615 by using a spring hitching tool. Then, pull
up the spring and hitch it to the spring rack of the 1st lens group barrel.
Spring rack
Inspection：
① Check the spring hitched condition.
② Check the zoom operating condition.
#619
#615
Spring rack
#605 Spring rack (3 places)
#613
(Tele position)
#615
Spring hitching tool
④ Turn the cam barrel #613 of the lens barrel unit in the reversed direction of ① to the Wide position.
