・ Turn the cam barrel #613 in the arrow direction to the reset position.

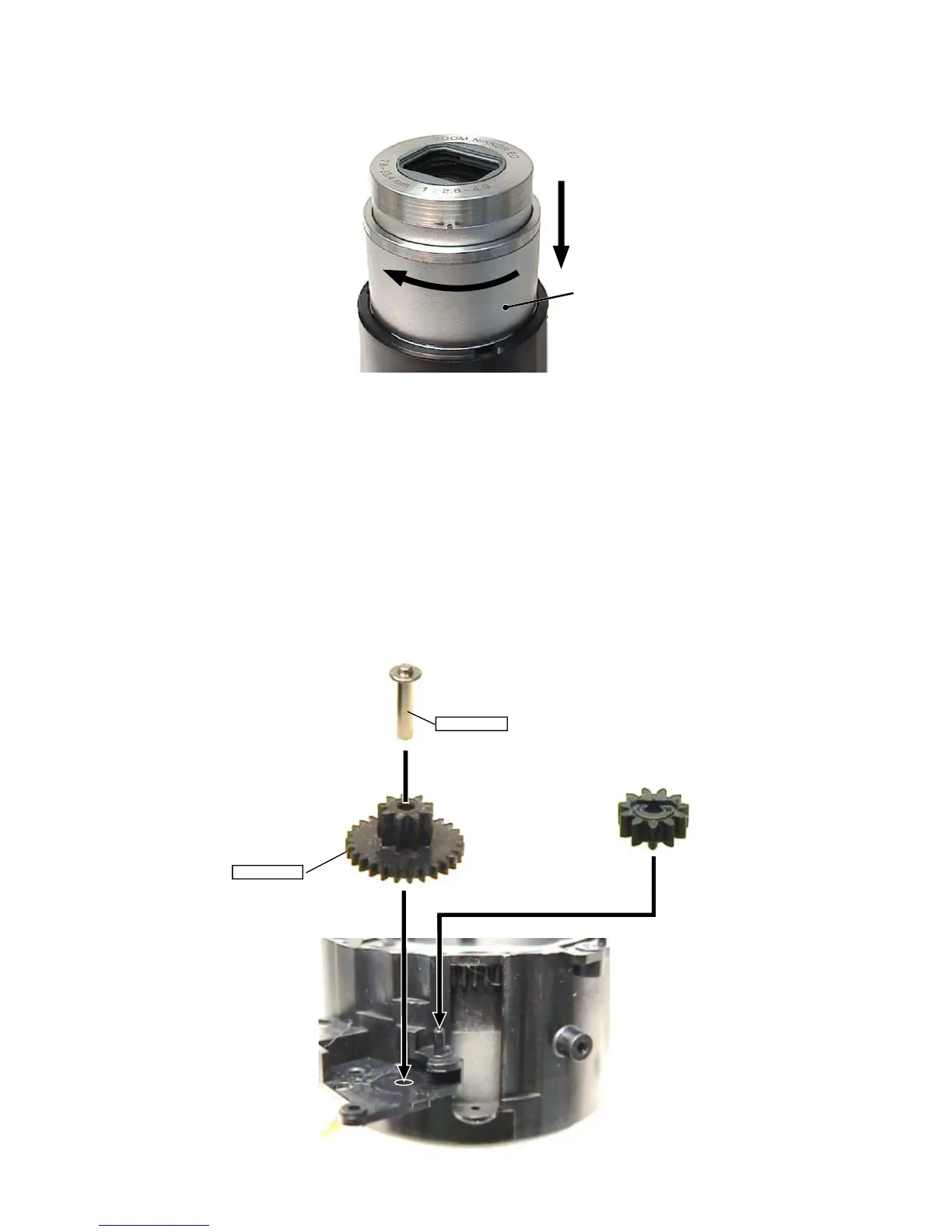

・ Assembly of zoom gear
① Lubricate the gear #644 with the oil G-92KA.
② Lubricate the gear shaft #649 with the oil G-92KA.
③ Set the gear shaft #649 into the gear #644. Then, set them onto the fixed barrel #612.
④ Set the gear #645 onto the fixed barrel #612.
#649
#644
#612
#645
Oil: G92KA
Oil: G92KA
#613
