Nikon coolpix7900 - Page 42

VAA46003-R.3659.A
- A11 ･ E7900 -

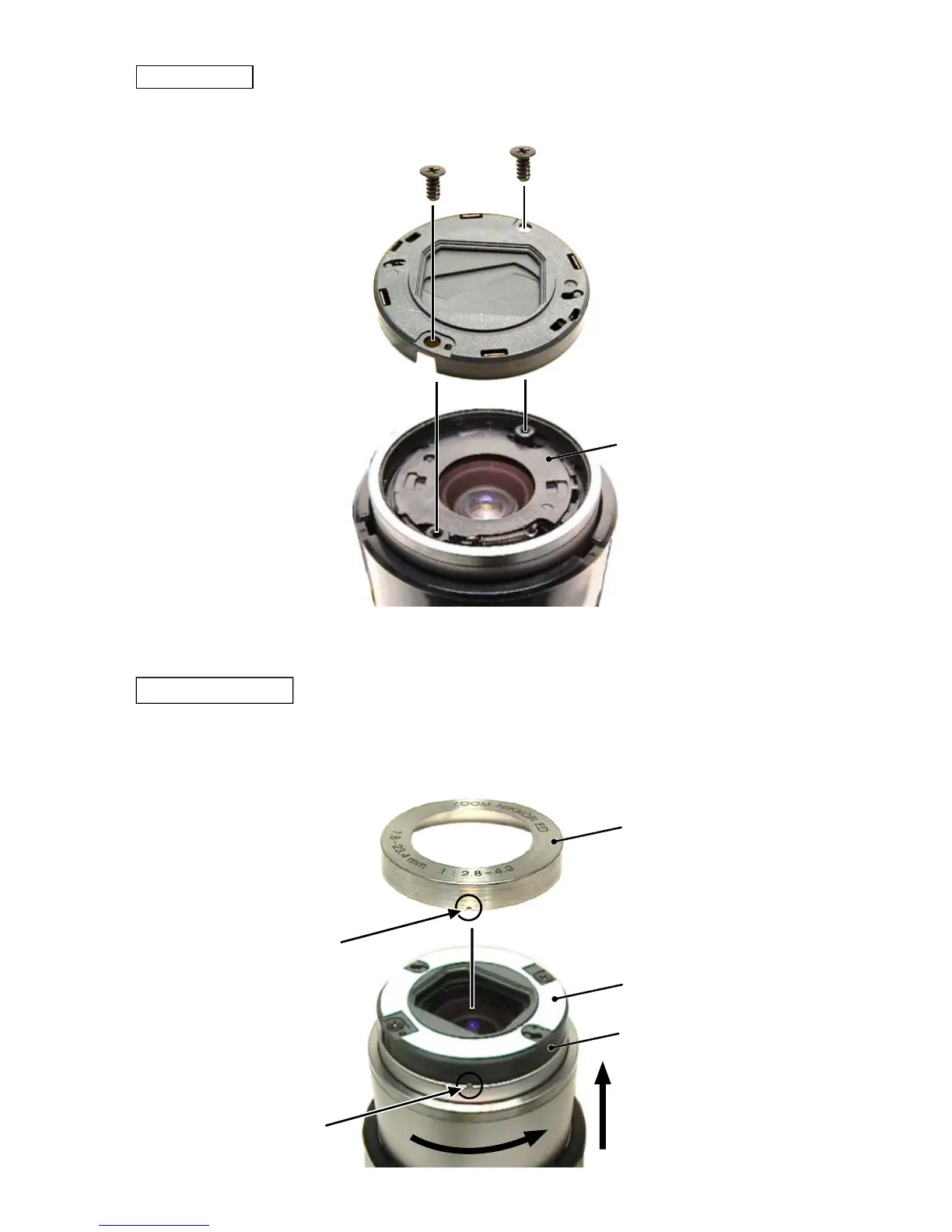

・ Set the barrier unit B662 onto the 1st lens group barrel #615 and fix it with the two screws #697.
Barrier unit
・ Turn the lens barrel in the arrow direction to where the convex section is seen.
・ Adhere the double adhesive tape #697 onto the barrier unit B662 and set the barrier cover ring #666.
#697 × 2
B662
#615
Barrier cover ring
#666
#697
B662
Notch
Convex section
