Nikon coolpix7900 - Page 52

VAA46003-R.3659.A
- A21 ･ E7900 -

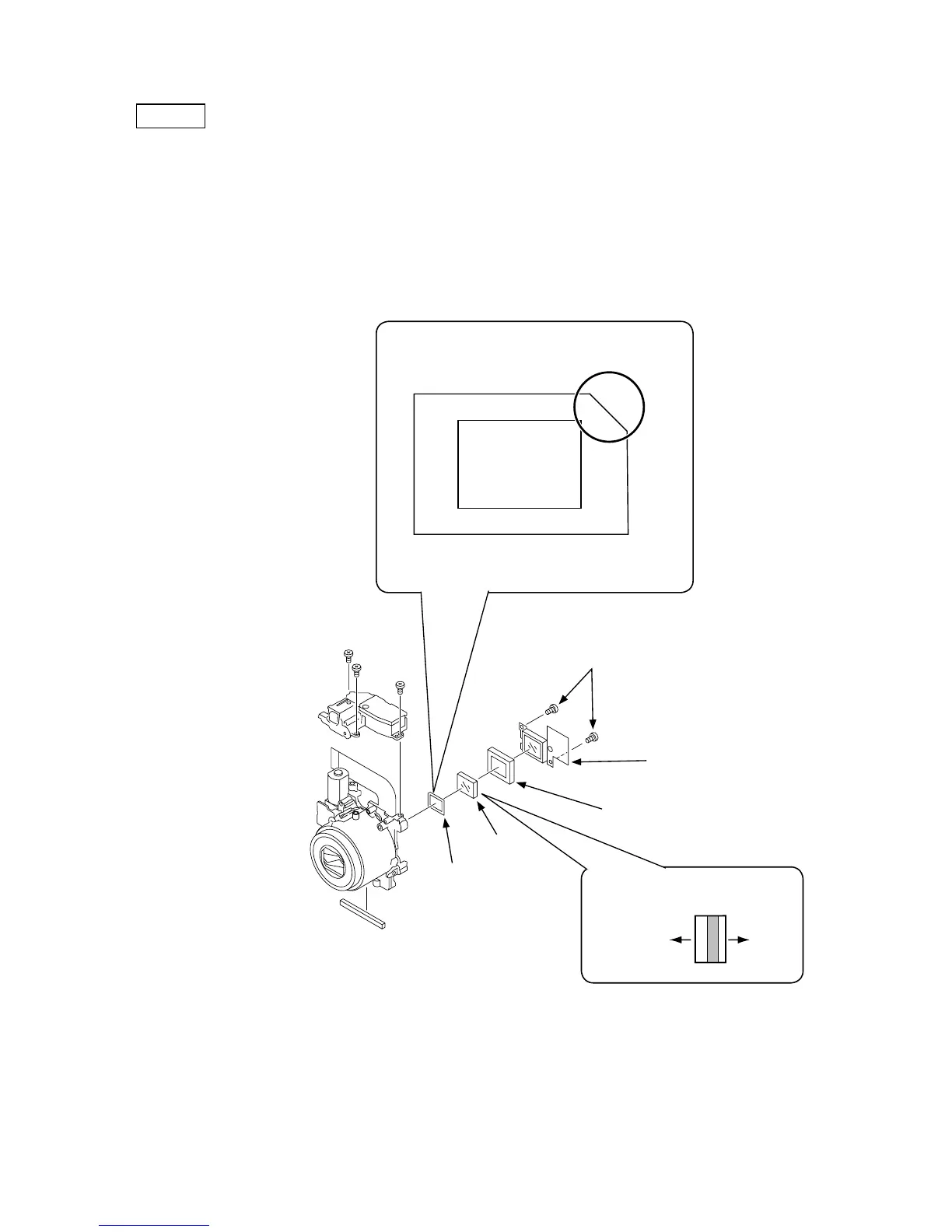

Screws (813)
LPF(8)
LPF mask (642)
CCD rubber (609)
CCD PCB
CCD
・ Set the LPF mask (642).
・ Set the LPF (8).
・ Set the CCD rubber (609).
・ Install the CCD PCB and tighten the two screws (813).
Setting direction of the LPF mask (624)
The broken-corner section is at the top as viewed
from the CCD side.
Setting direction of LPF (8)
Lens unit
side
CCD
side
