Nikon eclipse Ci-L User Manual

Chapter 1 Microscopy Procedures
24
Chapter 1-4
Microscopy Procedures
Sensitive Tint Plate Microscopy
Microscopy operation
11

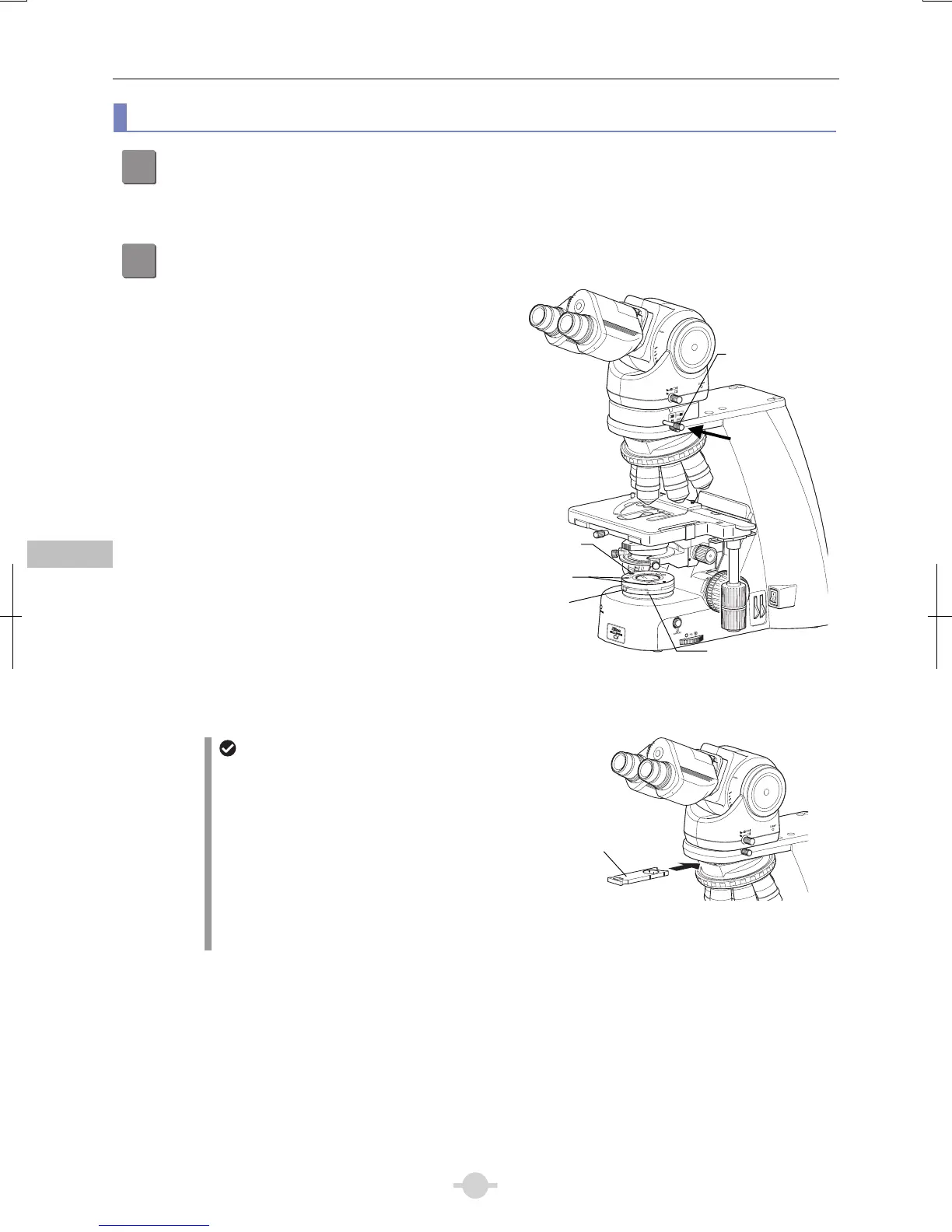

Bring a portion of the specimen where there is
no sample into the optical path.
Rotate the stage knob to move the specimen and bring a portion where there is no sample under the cover glass
into the optical path.
12
Bring the analyzer and the polarizer into the
optical path.
Push in the analyzer IN/OUT knob into the analyzer tube
for first-order red compensation to bring the analyzer into
the optical path.
Set the polarizer unit for first-order red compensation ove
r
the field lens.
Make sure the orientation mark on the polarizer (roughly)
comes to the front at this point.
Keep the fixing screw of the polarizer unit loosened.
CLAMP
TORQUE
ND4
ND8
OUT
IN
ND4
ND8
OUT
IN
Bringing the analyzer into the optical path
Installing the polarizer
Slider-type analyzer for first-order red
compensation
Using the C-AS Analyzer Slider for First-order Red
Compensation instead of an analyzer tube fo
r
first-order red compensation can keep the eye
point from rising. To use the C-AS Analyzer Slide
r
for First-order Red Compensation, the C-N
A
sextuple nosepiece with analyzer slot is required.
Use the analyzer slider as follows:
Push in: The analyzer goes into the optical path.
Pull out: The analyzer is removed from and the
dummy hole goes into the optical path.
Using D-AS analyzer slider
C-AS analyzer
slider
A
nalyzer
IN/OUT knob
Pivot
Fixing screw
Orientation mark
Tint plate
rotation
leve
r
