Nikon Eclipse E400 User Manual

<
i
© 0
©
o
@

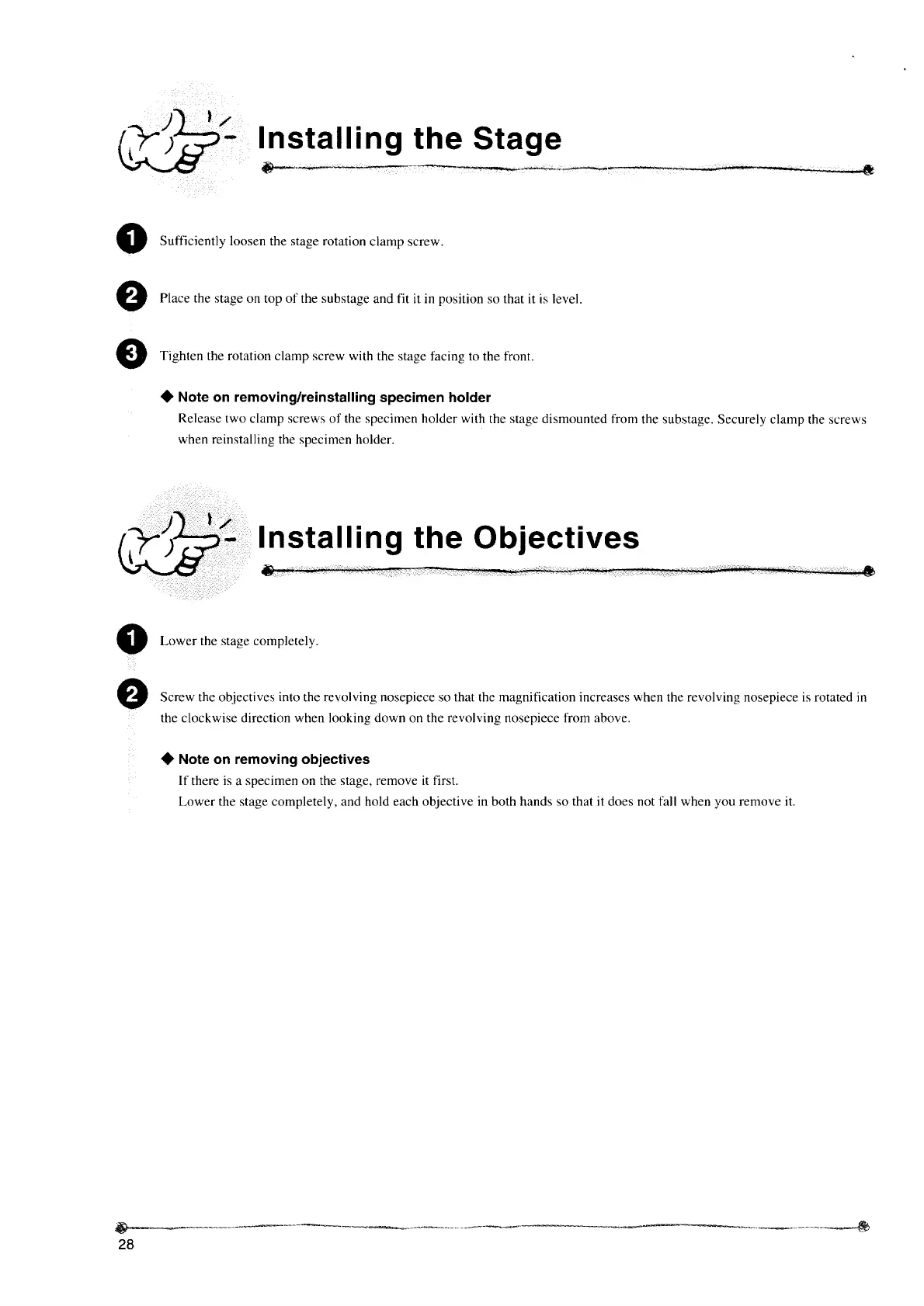

y2- Installing the Stage
D
~ 一 一 を
Sufficiently loosen the stage rotation clamp screw.
Place the stage on top of the substage and fit it in position so that it is level.
Tighten the rotation clamp screw with the stage facing to the front.
@ Note on removing/reinstalling specimen holder
Release two clamp screws of the specimen holder with the stage dismounted from the substage. Securely clamp the screws
when reinstalling the specimen holder.
Installing the Objectives
Lower the stage completely.
Screw the objectives into the revolving nosepiece so that the magnification increases when the revolving nosepiece is rotated in
the clockwise direction when looking down on the revolving nosepiece from above.
© Note on removing objectives
If there is a specimen on the stage, remove it first.
Lower the stage completely, and hold each objective in both hands so that it does not fall when you remove it.

Nikon Eclipse E400 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Nosepiece	Quadruple nosepiece
Magnification	40x to 1000x
Power Supply	AC 100-240V, 50/60Hz
Lamp Power	6V 30W
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Condenser	Abbe condenser, N.A. 1.25
Observation Tube	Binocular
Stage Dimensions	134mm
Interpupillary Distance Adjustment	50-75mm
Diopter Adjustment	+/- 5 diopters
Illumination	Built-in Koehler illumination
